Gears - Mitre - 24DP Brass

Gears -> Mitre -> 24DP Brass

There is only 1 product in the sub-categories of Gears - Mitre - 24DP Brass. Browse the Gears - Mitre - 24DP Brass products table.

Category Details

A selection of 24DP Brass Mitre Gears. 1:1 Ratio. 20 Degree Pressure Angle

  • An expanded range may be available on special order. Please enquire.
  • Mitre gears are used with a matching gear of the same pitch and number of teeth.
  • This provides a 1 to 1 ratio on a 90 Degree angle.
  • See Gears - Bevel for other ratios.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Gears - Mitre - 24DP Brass category on the Small Parts & Bearings online store.
Number of Teeth Pitch Diameter (pd) Bore (d) Overall Length (L) Sold Per Hub Diameter (hd) Indicative
Number of Teeth
24

Pitch Diameter (pd)
25.400
mm

(Equiv. 1 in.)
Bore (d)
6.350
mm

(Equiv. 0.25 in.)
Overall Length (L)
14.275
mm
Hub Diameter (hd)
15.875 / No Set Screw
mm

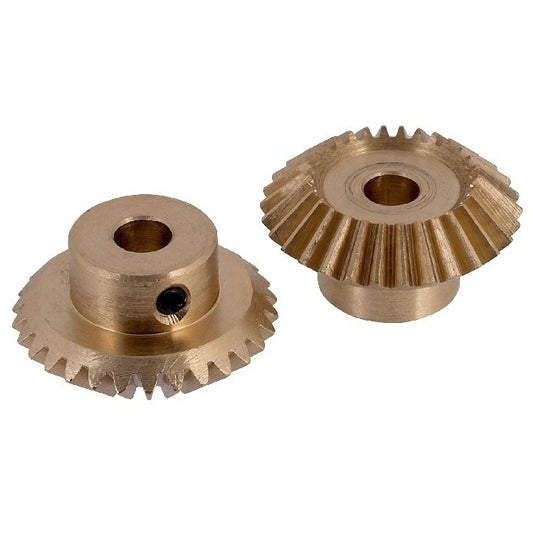

Mitre Gears - 24 tooth - 25.4x6.35 mm - Brass - Commercial
Material: Brass - Commercial    Hub Projection (F): 7.14 mm    Mounting Distance (C): 23.012 mm    Face Width (B): 5.537 mm
Part Number: GM-025-D24-064-B
Mitre Gears - 24 tooth - 25.4x6.35 mm 24DP Brass - Brass - Commercial Gear
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Each
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth Pitch Diameter (pd) Bore (d) Overall Length (L) Indicative
Number of Teeth
24

Pitch Diameter (pd)
25.400
mm

(Equiv. 1 in.)
Bore (d)
6.350
mm

(Equiv. 0.25 in.)
Overall Length (L)
14.275
mm

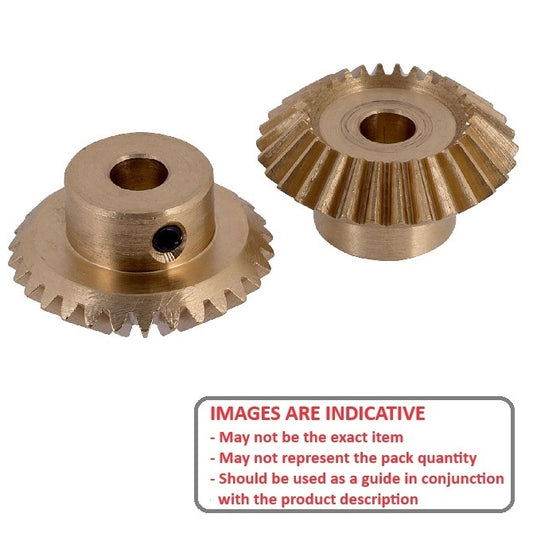

Mitre Gears - 24 tooth - 25.4x6.35 mm - Brass - Commercial
Material: Brass - Commercial    Hub Diameter (hd): 15.875 / No Set Screw mm    Hub Projection (F): 7.14 mm    Mounting Distance (C): 23.012 mm    Face Width (B): 5.537 mm
Part Number: GM-025-D24-064-B
Mitre Gears - 24 tooth - 25.4x6.35 mm 24DP Brass - Brass - Commercial Gear
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Each
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
