Collection: Bearings - Thrust Ball - Flat

Bearings -> Thrust Ball -> Flat

There are 63 products in the sub-categories of Bearings - Thrust Ball - Flat. Scroll down or follow the link to Bearings - Thrust Ball - Flat in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

Thrust Ball Bearings - 2x6x3 mm / 2 mm Flat - Chrome Steel

Bearings - Thrust Ball - Flat - Chrome Steel

A selection of Chrome Steel Flat Thrust Ball Bearings. 3 Piece Thrust...

Bearings - Thrust Ball - Flat - Chrome Steel

Thrust Ball Bearings - 3.175x11.113x4.763 mm / 3.175 mm Flat - Stainless Steel 400 Series and Nylon

Bearings - Thrust Ball - Flat - Stainless Steel

A selection of Stainless Steel Flat Thrust Ball Bearings. 3 Piece Thrust...

Bearings - Thrust Ball - Flat - Stainless Steel

Category Details

This category includes various types of thrust ball bearings.

Thrust ball bearings provide for axial loads. They are designed to handle forces that push or pull along the axis of a rotating shaft
Commonly used in automotive, electric motors, marine propulsion, pumps and compressors, aerospace applications, industrial machinery, and wind turbines.
An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Bearings - Thrust Ball - Flat category on the Small Parts & Bearings online store.

Shaft Diameter (d1)	OD (D1)	Thickness (T)	Bore (d2)	OD (D2)	Dynamic Load Capacity

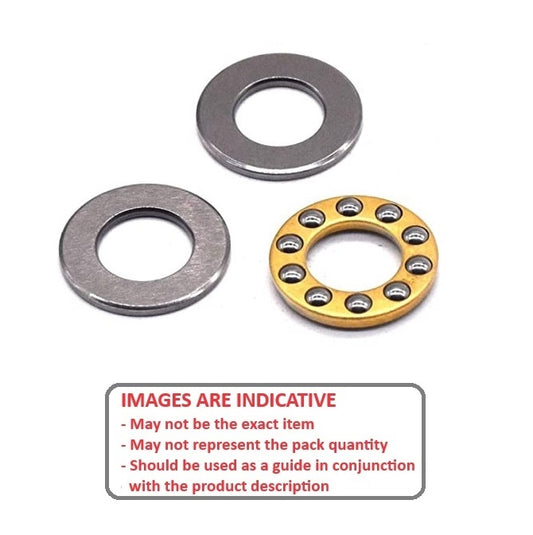

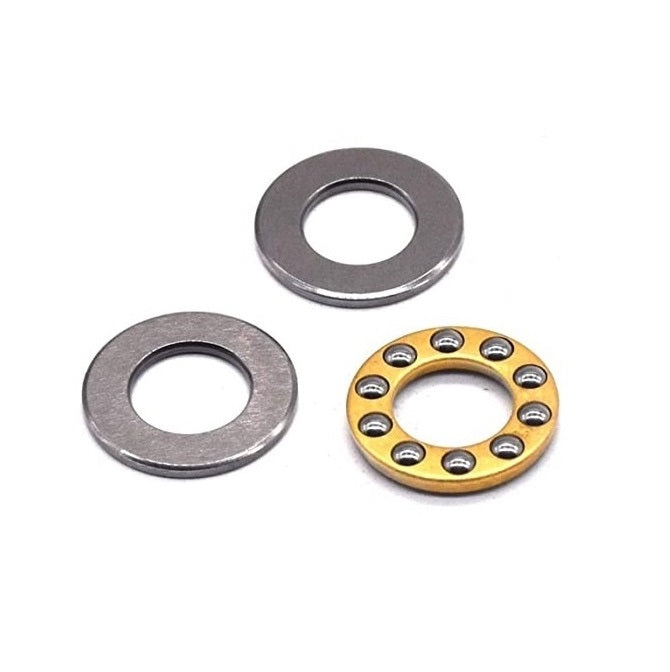

Shaft Diameter (d1) 2.000 mm (Equiv. 0.079 in.)	OD (D1) 6.000 mm (Equiv. 0.236 in.)	Thickness (T) 3.000 mm (Equiv. 0.118 in.)	Bore (d2) 2.000 mm	OD (D2) 6.000 mm	Dynamic Load Capacity 12 kgf
Material: Chrome Steel Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0020-0060-F-BR Thrust Ball Bearings - 2x6x3 mm / 2 mm Flat - Chrome Steel Bearing 12 Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Each Quantity Required 12 Available Now. Backorder if more than 12.
Shaft Diameter (d1)	OD (D1)	Thickness (T)	Bore (d2)	Indicative Image
Shaft Diameter (d1) 2.000 mm (Equiv. 0.079 in.)	OD (D1) 6.000 mm (Equiv. 0.236 in.)	Thickness (T) 3.000 mm (Equiv. 0.118 in.)	Bore (d2) 2.000 mm
Material: Chrome Steel OD (D2): 6.000 mm Dynamic Load Capacity: 12 kgf Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0020-0060-F-BR Thrust Ball Bearings - 2x6x3 mm / 2 mm Flat - Chrome Steel Bearing 12 Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Each Quantity Required 12 Available Now. Backorder if more than 12.
T-0020-0060-F-BR --- Thrust Ball Bearings - 2x6x3 mm / 2 mm Flat - Chrome Steel Bearing T-0020-0060-F-BR --- Thrust Ball Bearings - 2x6x3 mm / 2 mm Flat - Chrome Steel Bearing Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per 12 Available Now

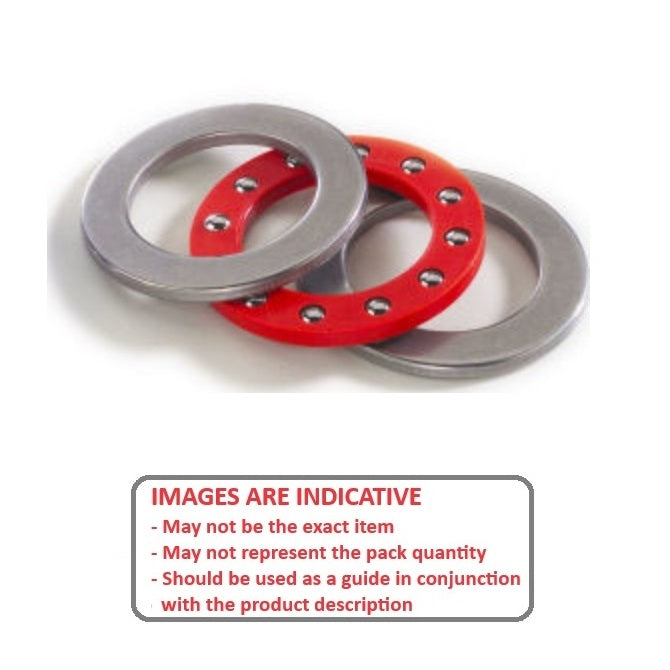

Shaft Diameter (d1) 3.175 mm _{+ 0.076 / + 0.203} (Equiv. 0.125 in.)	OD (D1) 11.113 mm _{- 0.013 / - 0.208} (Equiv. 0.438 in.)	Thickness (T) 4.763 mm _{+ 0.076 / + 0.215} (Equiv. 0.188 in.)	Bore (d2) 3.175 mm - 0.025 / - 0.202	OD (D2) 11.113 mm - 0.025 / - 0.202	Dynamic Load Capacity 15 kgf
Material: Stainless Steel 400 Series and Nylon Category: Bearings - Thrust Ball - Flat - Stainless Steel
Part Number: T-0032-0109-F-S440-NY Thrust Ball Bearings - 3.175x11.113x4.763 mm / 3.175 mm Flat - Stainless Steel 400 Series and Nylon Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $7.68 AUD Regular price ~~$9.22 AUD~~ Sale price $7.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 3.175 mm _{+ 0.076 / + 0.203} (Equiv. 0.125 in.)	OD (D1) 11.113 mm _{- 0.013 / - 0.208} (Equiv. 0.438 in.)	Thickness (T) 4.763 mm _{+ 0.076 / + 0.215} (Equiv. 0.188 in.)	Bore (d2) 3.175 mm - 0.025 / - 0.202
Material: Stainless Steel 400 Series and Nylon OD (D2): 11.113 mm - 0.025 / - 0.202 Dynamic Load Capacity: 15 kgf Category: Bearings - Thrust Ball - Flat - Stainless Steel
Part Number: T-0032-0109-F-S440-NY Thrust Ball Bearings - 3.175x11.113x4.763 mm / 3.175 mm Flat - Stainless Steel 400 Series and Nylon Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $7.68 AUD Regular price ~~$9.22 AUD~~ Sale price $7.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
T-0032-0109-F-S440-NY --- Thrust Ball Bearings - 3.175x11.113x4.763 mm / 3.175 mm Flat - Stainless Steel 400 Series and Nylon Bearing Sale T-0032-0109-F-S440-NY --- Thrust Ball Bearings - 3.175x11.113x4.763 mm / 3.175 mm Flat - Stainless Steel 400 Series and Nylon Bearing Regular price $7.68 AUD Regular price ~~$9.22 AUD~~ Sale price $7.68 AUD Unit price per Out of stock! Backorder Now Sale

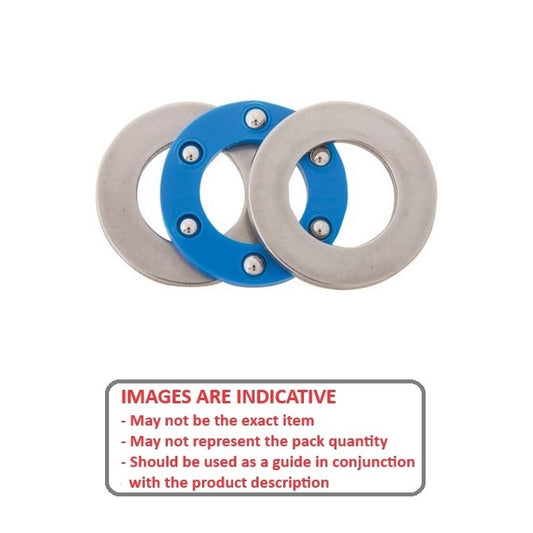

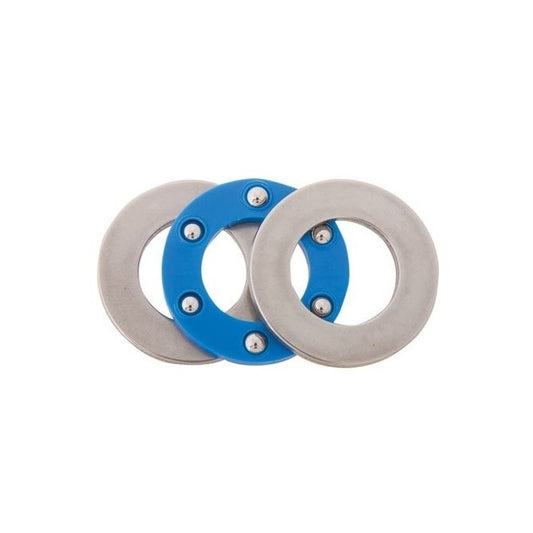

Shaft Diameter (d1) 3.175 mm _{+ 0.076 / + 0.203} (Equiv. 0.125 in.)	OD (D1) 11.113 mm _{- 0.013 / - 0.208} (Equiv. 0.438 in.)	Thickness (T) 4.763 mm _{+ 0.076 / + 0.215} (Equiv. 0.188 in.)	Bore (d2) 3.175 mm - 0.025 / - 0.202	OD (D2) 11.113 mm - 0.025 / - 0.202	Dynamic Load Capacity 21 kgf
Material: Chrome Steel Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0032-0109-F-NY Thrust Ball Bearings - 3.175x11.113x4.763 mm / 3.175 mm Flat - Chrome Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $6.14 AUD Regular price ~~$7.36 AUD~~ Sale price $6.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 3.175 mm _{+ 0.076 / + 0.203} (Equiv. 0.125 in.)	OD (D1) 11.113 mm _{- 0.013 / - 0.208} (Equiv. 0.438 in.)	Thickness (T) 4.763 mm _{+ 0.076 / + 0.215} (Equiv. 0.188 in.)	Bore (d2) 3.175 mm - 0.025 / - 0.202
Material: Chrome Steel OD (D2): 11.113 mm - 0.025 / - 0.202 Dynamic Load Capacity: 21 kgf Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0032-0109-F-NY Thrust Ball Bearings - 3.175x11.113x4.763 mm / 3.175 mm Flat - Chrome Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $6.14 AUD Regular price ~~$7.36 AUD~~ Sale price $6.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
T-0032-0109-F-NY --- Thrust Ball Bearings - 3.175x11.113x4.763 mm / 3.175 mm Flat - Chrome Steel Bearing Sale T-0032-0109-F-NY --- Thrust Ball Bearings - 3.175x11.113x4.763 mm / 3.175 mm Flat - Chrome Steel Bearing Regular price $6.14 AUD Regular price ~~$7.36 AUD~~ Sale price $6.14 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (d1) 4.000 mm (Equiv. 0.157 in.)	OD (D1) 9.000 mm (Equiv. 0.354 in.)	Thickness (T) 4.000 mm (Equiv. 0.157 in.)	Bore (d2) 4.000 mm	OD (D2) 9.000 mm	Dynamic Load Capacity 17 kgf
Material: Chrome Steel Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0040-0090-F Thrust Ball Bearings - 4x9x4 mm / 4 mm Flat - Chrome Steel Bearing 3 Available Now \| Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$9.60 AUD~~ Sale price $8.00 AUD Unit price per Each Quantity Required 3 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (d1) 4.000 mm (Equiv. 0.157 in.)	OD (D1) 9.000 mm (Equiv. 0.354 in.)	Thickness (T) 4.000 mm (Equiv. 0.157 in.)	Bore (d2) 4.000 mm
Material: Chrome Steel OD (D2): 9.000 mm Dynamic Load Capacity: 17 kgf Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0040-0090-F Thrust Ball Bearings - 4x9x4 mm / 4 mm Flat - Chrome Steel Bearing 3 Available Now \| Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$9.60 AUD~~ Sale price $8.00 AUD Unit price per Each Quantity Required 3 Available Now. These are priced to quit. Please contact us for a quote if you require more.
T-0040-0090-F --- Thrust Ball Bearings - 4x9x4 mm / 4 mm Flat - Chrome Steel Bearing Sale T-0040-0090-F --- Thrust Ball Bearings - 4x9x4 mm / 4 mm Flat - Chrome Steel Bearing Regular price $8.00 AUD Regular price ~~$9.60 AUD~~ Sale price $8.00 AUD Unit price per 3 Available Now Sale
Shaft Diameter (d1) 4.763 mm _{+ 0.088 / + 0.190} (Equiv. 0.188 in.)	OD (D1) 12.700 mm _{- 0.013 / - 0.208} (Equiv. 0.5 in.)	Thickness (T) 4.763 mm _{+ 0.076 / + 0.215} (Equiv. 0.188 in.)	Bore (d2) 4.763 mm - 0.025 / - 0.202	OD (D2) 12.700 mm - 0.025 / - 0.202	Dynamic Load Capacity 25 kgf
Material: Chrome Steel Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0048-0125-F-NY Thrust Ball Bearings - 4.763x12.7x4.763 mm / 4.763 mm Flat - Chrome Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $10.68 AUD Regular price ~~$12.82 AUD~~ Sale price $10.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 4.763 mm _{+ 0.088 / + 0.190} (Equiv. 0.188 in.)	OD (D1) 12.700 mm _{- 0.013 / - 0.208} (Equiv. 0.5 in.)	Thickness (T) 4.763 mm _{+ 0.076 / + 0.215} (Equiv. 0.188 in.)	Bore (d2) 4.763 mm - 0.025 / - 0.202
Material: Chrome Steel OD (D2): 12.700 mm - 0.025 / - 0.202 Dynamic Load Capacity: 25 kgf Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0048-0125-F-NY Thrust Ball Bearings - 4.763x12.7x4.763 mm / 4.763 mm Flat - Chrome Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $10.68 AUD Regular price ~~$12.82 AUD~~ Sale price $10.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
T-0048-0125-F-NY --- Thrust Ball Bearings - 4.763x12.7x4.763 mm / 4.763 mm Flat - Chrome Steel Bearing Sale T-0048-0125-F-NY --- Thrust Ball Bearings - 4.763x12.7x4.763 mm / 4.763 mm Flat - Chrome Steel Bearing Regular price $10.68 AUD Regular price ~~$12.82 AUD~~ Sale price $10.68 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (d1) 4.763 mm _{+ 0.088 / + 0.190} (Equiv. 0.188 in.)	OD (D1) 12.700 mm _{- 0.013 / - 0.208} (Equiv. 0.5 in.)	Thickness (T) 4.763 mm _{+ 0.076 / + 0.215} (Equiv. 0.188 in.)	Bore (d2) 4.763 mm - 0.025 / - 0.202	OD (D2) 12.700 mm - 0.025 / - 0.202	Dynamic Load Capacity 17 kgf
Material: Stainless Steel 400 Series and Nylon Category: Bearings - Thrust Ball - Flat - Stainless Steel
Part Number: T-0048-0125-F-S440-NY Thrust Ball Bearings - 4.763x12.7x4.763 mm / 4.763 mm Flat - Stainless Steel 400 Series and Nylon Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $8.86 AUD Regular price ~~$10.64 AUD~~ Sale price $8.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 4.763 mm _{+ 0.088 / + 0.190} (Equiv. 0.188 in.)	OD (D1) 12.700 mm _{- 0.013 / - 0.208} (Equiv. 0.5 in.)	Thickness (T) 4.763 mm _{+ 0.076 / + 0.215} (Equiv. 0.188 in.)	Bore (d2) 4.763 mm - 0.025 / - 0.202
Material: Stainless Steel 400 Series and Nylon OD (D2): 12.700 mm - 0.025 / - 0.202 Dynamic Load Capacity: 17 kgf Category: Bearings - Thrust Ball - Flat - Stainless Steel
Part Number: T-0048-0125-F-S440-NY Thrust Ball Bearings - 4.763x12.7x4.763 mm / 4.763 mm Flat - Stainless Steel 400 Series and Nylon Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $8.86 AUD Regular price ~~$10.64 AUD~~ Sale price $8.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
T-0048-0125-F-S440-NY --- Thrust Ball Bearings - 4.763x12.7x4.763 mm / 4.763 mm Flat - Stainless Steel 400 Series and Nylon Bearing Sale T-0048-0125-F-S440-NY --- Thrust Ball Bearings - 4.763x12.7x4.763 mm / 4.763 mm Flat - Stainless Steel 400 Series and Nylon Bearing Regular price $8.86 AUD Regular price ~~$10.64 AUD~~ Sale price $8.86 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (d1) 5.000 mm (Equiv. 0.197 in.)	OD (D1) 11.000 mm (Equiv. 0.433 in.)	Thickness (T) 4.500 mm (Equiv. 0.177 in.)	Bore (d2) 5.000 mm	OD (D2) 11.000 mm	Dynamic Load Capacity 29 kgf
Material: Chrome Steel Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0050-0110-F-BR (20 Pcs) Thrust Ball Bearings - 5x11x4.5 mm / 5 mm Flat - Chrome Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Sat, Sep 27, 2025 Regular price $126.86 AUD Regular price ~~$152.24 AUD~~ Sale price $126.86 AUD Unit price per Per 20 Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 5.000 mm (Equiv. 0.197 in.)	OD (D1) 11.000 mm (Equiv. 0.433 in.)	Thickness (T) 4.500 mm (Equiv. 0.177 in.)	Bore (d2) 5.000 mm
Material: Chrome Steel OD (D2): 11.000 mm Dynamic Load Capacity: 29 kgf Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0050-0110-F-BR (20 Pcs) Thrust Ball Bearings - 5x11x4.5 mm / 5 mm Flat - Chrome Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Sat, Sep 27, 2025 Regular price $126.86 AUD Regular price ~~$152.24 AUD~~ Sale price $126.86 AUD Unit price per Per 20 Quantity Required Backorder: Out of Stock.
T-0050-0110-F-BR (20 Pcs) --- Thrust Ball Bearings - 5x11x4.5 mm / 5 mm Flat - Chrome Steel Bearing Sale T-0050-0110-F-BR (20 Pcs) --- Thrust Ball Bearings - 5x11x4.5 mm / 5 mm Flat - Chrome Steel Bearing Regular price $126.86 AUD Regular price ~~$152.24 AUD~~ Sale price $126.86 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (d1) 5.000 mm _{+ 0.08 / + 0.21} (Equiv. 0.197 in.)	OD (D1) 12.000 mm _{- 0.040 / - 0.220} (Equiv. 0.472 in.)	Thickness (T) 5.000 mm _{+ 0.020 / - 0.180} (Equiv. 0.197 in.)	Bore (d2) 5.000 mm - 0.025 / - 0.202	OD (D2) 12.000 mm - 0.025 / - 0.202	Dynamic Load Capacity 17 kgf
Material: Stainless Steel 400 Series and Nylon Category: Bearings - Thrust Ball - Flat - Stainless Steel
Part Number: T-0050-0120-F-S440-NY Thrust Ball Bearings - 5x12x5 mm / 5 mm Flat - Stainless Steel 400 Series and Nylon Bearing Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $17.86 AUD Regular price ~~$21.44 AUD~~ Sale price $17.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 5.000 mm _{+ 0.08 / + 0.21} (Equiv. 0.197 in.)	OD (D1) 12.000 mm _{- 0.040 / - 0.220} (Equiv. 0.472 in.)	Thickness (T) 5.000 mm _{+ 0.020 / - 0.180} (Equiv. 0.197 in.)	Bore (d2) 5.000 mm - 0.025 / - 0.202
Material: Stainless Steel 400 Series and Nylon OD (D2): 12.000 mm - 0.025 / - 0.202 Dynamic Load Capacity: 17 kgf Category: Bearings - Thrust Ball - Flat - Stainless Steel
Part Number: T-0050-0120-F-S440-NY Thrust Ball Bearings - 5x12x5 mm / 5 mm Flat - Stainless Steel 400 Series and Nylon Bearing Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $17.86 AUD Regular price ~~$21.44 AUD~~ Sale price $17.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
T-0050-0120-F-S440-NY --- Thrust Ball Bearings - 5x12x5 mm / 5 mm Flat - Stainless Steel 400 Series and Nylon Bearing Sale T-0050-0120-F-S440-NY --- Thrust Ball Bearings - 5x12x5 mm / 5 mm Flat - Stainless Steel 400 Series and Nylon Bearing Regular price $17.86 AUD Regular price ~~$21.44 AUD~~ Sale price $17.86 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (d1) 5.000 mm _{+ 0.08 / + 0.21} (Equiv. 0.197 in.)	OD (D1) 12.000 mm _{- 0.040 / - 0.220} (Equiv. 0.472 in.)	Thickness (T) 5.000 mm _{+ 0.020 / - 0.180} (Equiv. 0.197 in.)	Bore (d2) 5.000 mm - 0.025 / - 0.202	OD (D2) 12.000 mm - 0.025 / - 0.202	Dynamic Load Capacity 24 kgf
Material: Chrome Steel Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0050-0120-F-NY Thrust Ball Bearings - 5x12x5 mm / 5 mm Flat - Chrome Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $13.59 AUD Regular price ~~$16.31 AUD~~ Sale price $13.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 5.000 mm _{+ 0.08 / + 0.21} (Equiv. 0.197 in.)	OD (D1) 12.000 mm _{- 0.040 / - 0.220} (Equiv. 0.472 in.)	Thickness (T) 5.000 mm _{+ 0.020 / - 0.180} (Equiv. 0.197 in.)	Bore (d2) 5.000 mm - 0.025 / - 0.202
Material: Chrome Steel OD (D2): 12.000 mm - 0.025 / - 0.202 Dynamic Load Capacity: 24 kgf Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0050-0120-F-NY Thrust Ball Bearings - 5x12x5 mm / 5 mm Flat - Chrome Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $13.59 AUD Regular price ~~$16.31 AUD~~ Sale price $13.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
T-0050-0120-F-NY --- Thrust Ball Bearings - 5x12x5 mm / 5 mm Flat - Chrome Steel Bearing Sale T-0050-0120-F-NY --- Thrust Ball Bearings - 5x12x5 mm / 5 mm Flat - Chrome Steel Bearing Regular price $13.59 AUD Regular price ~~$16.31 AUD~~ Sale price $13.59 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (d1) 6.000 mm (Equiv. 0.236 in.)	OD (D1) 12.000 mm (Equiv. 0.472 in.)	Thickness (T) 4.500 mm (Equiv. 0.177 in.)	Bore (d2) 6.000 mm	OD (D2) 12.000 mm	Dynamic Load Capacity 28 kgf
Material: Chrome Steel Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0060-0120-F-BR Thrust Ball Bearings - 6x12x4.5 mm / 6 mm Flat - Chrome Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $37.50 AUD Regular price ~~$45.00 AUD~~ Sale price $37.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 6.000 mm (Equiv. 0.236 in.)	OD (D1) 12.000 mm (Equiv. 0.472 in.)	Thickness (T) 4.500 mm (Equiv. 0.177 in.)	Bore (d2) 6.000 mm
Material: Chrome Steel OD (D2): 12.000 mm Dynamic Load Capacity: 28 kgf Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0060-0120-F-BR Thrust Ball Bearings - 6x12x4.5 mm / 6 mm Flat - Chrome Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $37.50 AUD Regular price ~~$45.00 AUD~~ Sale price $37.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
T-0060-0120-F-BR --- Thrust Ball Bearings - 6x12x4.5 mm / 6 mm Flat - Chrome Steel Bearing Sale T-0060-0120-F-BR --- Thrust Ball Bearings - 6x12x4.5 mm / 6 mm Flat - Chrome Steel Bearing Regular price $37.50 AUD Regular price ~~$45.00 AUD~~ Sale price $37.50 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (d1) 6.000 mm _{+ 0.07 / + 0.20} (Equiv. 0.236 in.)	OD (D1) 14.000 mm _{- 0.040 / - 0.220} (Equiv. 0.551 in.)	Thickness (T) 5.000 mm _{+ 0.020 / - 0.180} (Equiv. 0.197 in.)	Bore (d2) 6.000 mm - 0.025 / - 0.202	OD (D2) 14.000 mm - 0.025 / - 0.202	Dynamic Load Capacity 19 kgf
Material: Stainless Steel 400 Series and Nylon Category: Bearings - Thrust Ball - Flat - Stainless Steel
Part Number: T-0060-0140-F-S440-NY Thrust Ball Bearings - 6x14x5 mm / 6 mm Flat - Stainless Steel 400 Series and Nylon Bearing 10 Available Now \| Further orders can be expected around Thu, Oct 02, 2025 Regular price $31.68 AUD Regular price Sale price $31.68 AUD Unit price per Each Quantity Required 10 Available Now. Backorder if more than 10.
Shaft Diameter (d1) 6.000 mm _{+ 0.07 / + 0.20} (Equiv. 0.236 in.)	OD (D1) 14.000 mm _{- 0.040 / - 0.220} (Equiv. 0.551 in.)	Thickness (T) 5.000 mm _{+ 0.020 / - 0.180} (Equiv. 0.197 in.)	Bore (d2) 6.000 mm - 0.025 / - 0.202
Material: Stainless Steel 400 Series and Nylon OD (D2): 14.000 mm - 0.025 / - 0.202 Dynamic Load Capacity: 19 kgf Category: Bearings - Thrust Ball - Flat - Stainless Steel
Part Number: T-0060-0140-F-S440-NY Thrust Ball Bearings - 6x14x5 mm / 6 mm Flat - Stainless Steel 400 Series and Nylon Bearing 10 Available Now \| Further orders can be expected around Thu, Oct 02, 2025 Regular price $31.68 AUD Regular price Sale price $31.68 AUD Unit price per Each Quantity Required 10 Available Now. Backorder if more than 10.
T-0060-0140-F-S440-NY --- Thrust Ball Bearings - 6x14x5 mm / 6 mm Flat - Stainless Steel 400 Series and Nylon Bearing T-0060-0140-F-S440-NY --- Thrust Ball Bearings - 6x14x5 mm / 6 mm Flat - Stainless Steel 400 Series and Nylon Bearing Regular price $31.68 AUD Regular price Sale price $31.68 AUD Unit price per 10 Available Now
Shaft Diameter (d1) 6.000 mm _{+ 0.07 / + 0.20} (Equiv. 0.236 in.)	OD (D1) 14.000 mm _{- 0.040 / - 0.220} (Equiv. 0.551 in.)	Thickness (T) 5.000 mm _{+ 0.020 / - 0.180} (Equiv. 0.197 in.)	Bore (d2) 6.000 mm - 0.025 / - 0.202	OD (D2) 14.000 mm - 0.025 / - 0.202	Dynamic Load Capacity 28 kgf
Material: Chrome Steel Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0060-0140-F-NY Thrust Ball Bearings - 6x14x5 mm / 6 mm Flat - Chrome Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $13.77 AUD Regular price ~~$16.53 AUD~~ Sale price $13.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 6.000 mm _{+ 0.07 / + 0.20} (Equiv. 0.236 in.)	OD (D1) 14.000 mm _{- 0.040 / - 0.220} (Equiv. 0.551 in.)	Thickness (T) 5.000 mm _{+ 0.020 / - 0.180} (Equiv. 0.197 in.)	Bore (d2) 6.000 mm - 0.025 / - 0.202
Material: Chrome Steel OD (D2): 14.000 mm - 0.025 / - 0.202 Dynamic Load Capacity: 28 kgf Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0060-0140-F-NY Thrust Ball Bearings - 6x14x5 mm / 6 mm Flat - Chrome Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $13.77 AUD Regular price ~~$16.53 AUD~~ Sale price $13.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
T-0060-0140-F-NY --- Thrust Ball Bearings - 6x14x5 mm / 6 mm Flat - Chrome Steel Bearing Sale T-0060-0140-F-NY --- Thrust Ball Bearings - 6x14x5 mm / 6 mm Flat - Chrome Steel Bearing Regular price $13.77 AUD Regular price ~~$16.53 AUD~~ Sale price $13.77 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (d1) 6.350 mm _{+ 0.076 / + 0.203} (Equiv. 0.25 in.)	OD (D1) 14.288 mm _{- 0.013 / - 0.208} (Equiv. 0.563 in.)	Thickness (T) 4.763 mm _{+ 0.076 / + 0.215} (Equiv. 0.188 in.)	Bore (d2) 6.350 mm - 0.025 / - 0.202	OD (D2) 14.288 mm - 0.025 / - 0.202	Dynamic Load Capacity 28 kgf
Material: Chrome Steel Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0064-0141-F-NY Thrust Ball Bearings - 6.35x14.288x4.763 mm / 6.35 mm Flat - Chrome Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 6.350 mm _{+ 0.076 / + 0.203} (Equiv. 0.25 in.)	OD (D1) 14.288 mm _{- 0.013 / - 0.208} (Equiv. 0.563 in.)	Thickness (T) 4.763 mm _{+ 0.076 / + 0.215} (Equiv. 0.188 in.)	Bore (d2) 6.350 mm - 0.025 / - 0.202
Material: Chrome Steel OD (D2): 14.288 mm - 0.025 / - 0.202 Dynamic Load Capacity: 28 kgf Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0064-0141-F-NY Thrust Ball Bearings - 6.35x14.288x4.763 mm / 6.35 mm Flat - Chrome Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
T-0064-0141-F-NY --- Thrust Ball Bearings - 6.35x14.288x4.763 mm / 6.35 mm Flat - Chrome Steel Bearing T-0064-0141-F-NY --- Thrust Ball Bearings - 6.35x14.288x4.763 mm / 6.35 mm Flat - Chrome Steel Bearing Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (d1) 6.350 mm _{+ 0.076 / + 0.203} (Equiv. 0.25 in.)	OD (D1) 14.288 mm _{- 0.013 / - 0.208} (Equiv. 0.563 in.)	Thickness (T) 4.763 mm _{+ 0.076 / + 0.215} (Equiv. 0.188 in.)	Bore (d2) 6.350 mm - 0.025 / - 0.202	OD (D2) 14.288 mm - 0.025 / - 0.202	Dynamic Load Capacity 20 kgf
Material: Stainless Steel 400 Series and Nylon Category: Bearings - Thrust Ball - Flat - Stainless Steel
Part Number: T-0064-0141-F-S440-NY Thrust Ball Bearings - 6.35x14.288x4.763 mm / 6.35 mm Flat - Stainless Steel 400 Series and Nylon Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $37.05 AUD Regular price Sale price $37.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 6.350 mm _{+ 0.076 / + 0.203} (Equiv. 0.25 in.)	OD (D1) 14.288 mm _{- 0.013 / - 0.208} (Equiv. 0.563 in.)	Thickness (T) 4.763 mm _{+ 0.076 / + 0.215} (Equiv. 0.188 in.)	Bore (d2) 6.350 mm - 0.025 / - 0.202
Material: Stainless Steel 400 Series and Nylon OD (D2): 14.288 mm - 0.025 / - 0.202 Dynamic Load Capacity: 20 kgf Category: Bearings - Thrust Ball - Flat - Stainless Steel
Part Number: T-0064-0141-F-S440-NY Thrust Ball Bearings - 6.35x14.288x4.763 mm / 6.35 mm Flat - Stainless Steel 400 Series and Nylon Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $37.05 AUD Regular price Sale price $37.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
T-0064-0141-F-S440-NY --- Thrust Ball Bearings - 6.35x14.288x4.763 mm / 6.35 mm Flat - Stainless Steel 400 Series and Nylon Bearing T-0064-0141-F-S440-NY --- Thrust Ball Bearings - 6.35x14.288x4.763 mm / 6.35 mm Flat - Stainless Steel 400 Series and Nylon Bearing Regular price $37.05 AUD Regular price Sale price $37.05 AUD Unit price per Out of stock! Backorder Now

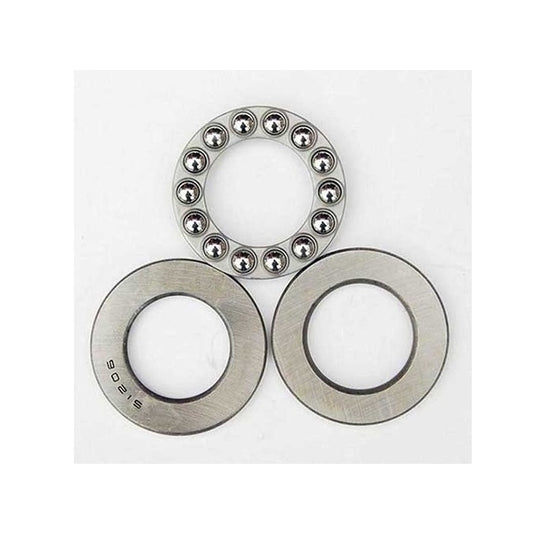

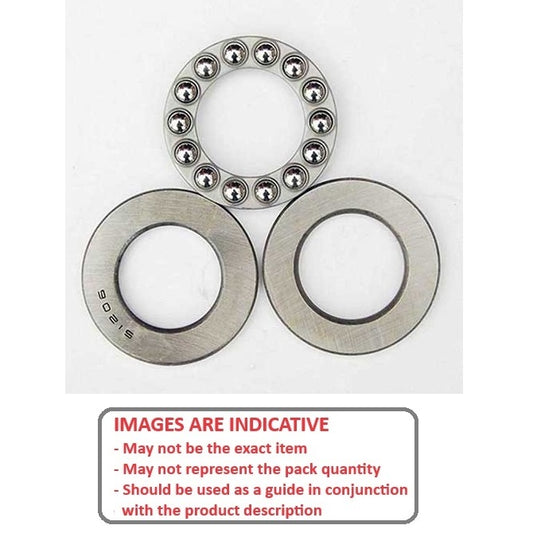

Shaft Diameter (d1) 7.000 mm (Equiv. 0.276 in.)	OD (D1) 15.000 mm (Equiv. 0.591 in.)	Thickness (T) 5.000 mm (Equiv. 0.197 in.)	Bore (d2) 7.000 mm	OD (D2) 15.000 mm	Dynamic Load Capacity 57 kgf
Material: Chrome Steel Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0070-0150-F-ST (2 Pcs) Thrust Ball Bearings - 7x15x5 mm / 7 mm Flat - Chrome Steel Bearing 35 units (70 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.59 AUD Regular price Sale price $4.59 AUD Unit price per Per 2 Quantity Required 35 units (70 pcs) Available Now. Backorder if more than 35.
Shaft Diameter (d1) 7.000 mm (Equiv. 0.276 in.)	OD (D1) 15.000 mm (Equiv. 0.591 in.)	Thickness (T) 5.000 mm (Equiv. 0.197 in.)	Bore (d2) 7.000 mm
Material: Chrome Steel OD (D2): 15.000 mm Dynamic Load Capacity: 57 kgf Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0070-0150-F-ST (2 Pcs) Thrust Ball Bearings - 7x15x5 mm / 7 mm Flat - Chrome Steel Bearing 35 units (70 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.59 AUD Regular price Sale price $4.59 AUD Unit price per Per 2 Quantity Required 35 units (70 pcs) Available Now. Backorder if more than 35.
T-0070-0150-F-ST (2 Pcs) --- Thrust Ball Bearings - 7x15x5 mm / 7 mm Flat - Chrome Steel Bearing T-0070-0150-F-ST (2 Pcs) --- Thrust Ball Bearings - 7x15x5 mm / 7 mm Flat - Chrome Steel Bearing Regular price $4.59 AUD Regular price Sale price $4.59 AUD Unit price per 35 Available Now
Shaft Diameter (d1) 7.000 mm (Equiv. 0.276 in.)	OD (D1) 15.000 mm (Equiv. 0.591 in.)	Thickness (T) 5.000 mm (Equiv. 0.197 in.)	Bore (d2) 7.000 mm	OD (D2) 15.000 mm	Dynamic Load Capacity 57 kgf
Material: Chrome Steel Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0070-0150-F-BR Thrust Ball Bearings - 7x15x5 mm / 7 mm Flat - Chrome Steel Bearing 7 Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per Each Quantity Required 7 Available Now. Backorder if more than 7.
Shaft Diameter (d1) 7.000 mm (Equiv. 0.276 in.)	OD (D1) 15.000 mm (Equiv. 0.591 in.)	Thickness (T) 5.000 mm (Equiv. 0.197 in.)	Bore (d2) 7.000 mm
Material: Chrome Steel OD (D2): 15.000 mm Dynamic Load Capacity: 57 kgf Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0070-0150-F-BR Thrust Ball Bearings - 7x15x5 mm / 7 mm Flat - Chrome Steel Bearing 7 Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per Each Quantity Required 7 Available Now. Backorder if more than 7.
T-0070-0150-F-BR --- Thrust Ball Bearings - 7x15x5 mm / 7 mm Flat - Chrome Steel Bearing T-0070-0150-F-BR --- Thrust Ball Bearings - 7x15x5 mm / 7 mm Flat - Chrome Steel Bearing Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per 7 Available Now
Shaft Diameter (d1) 7.000 mm _{+ 0.06 / + 0.18} (Equiv. 0.276 in.)	OD (D1) 17.000 mm _{- 0.040 / - 0.220} (Equiv. 0.669 in.)	Thickness (T) 5.000 mm _{+ 0.020 / - 0.180} (Equiv. 0.197 in.)	Bore (d2) 7.000 mm - 0.025 / - 0.202	OD (D2) 17.000 mm - 0.025 / - 0.202	Dynamic Load Capacity 22 kgf
Material: Stainless Steel 400 Series and Nylon Category: Bearings - Thrust Ball - Flat - Stainless Steel
Part Number: T-0070-0170-F-S440-NY Thrust Ball Bearings - 7x17x5 mm / 7 mm Flat - Stainless Steel 400 Series and Nylon Bearing Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $19.68 AUD Regular price ~~$23.62 AUD~~ Sale price $19.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 7.000 mm _{+ 0.06 / + 0.18} (Equiv. 0.276 in.)	OD (D1) 17.000 mm _{- 0.040 / - 0.220} (Equiv. 0.669 in.)	Thickness (T) 5.000 mm _{+ 0.020 / - 0.180} (Equiv. 0.197 in.)	Bore (d2) 7.000 mm - 0.025 / - 0.202
Material: Stainless Steel 400 Series and Nylon OD (D2): 17.000 mm - 0.025 / - 0.202 Dynamic Load Capacity: 22 kgf Category: Bearings - Thrust Ball - Flat - Stainless Steel
Part Number: T-0070-0170-F-S440-NY Thrust Ball Bearings - 7x17x5 mm / 7 mm Flat - Stainless Steel 400 Series and Nylon Bearing Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $19.68 AUD Regular price ~~$23.62 AUD~~ Sale price $19.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
T-0070-0170-F-S440-NY --- Thrust Ball Bearings - 7x17x5 mm / 7 mm Flat - Stainless Steel 400 Series and Nylon Bearing Sale T-0070-0170-F-S440-NY --- Thrust Ball Bearings - 7x17x5 mm / 7 mm Flat - Stainless Steel 400 Series and Nylon Bearing Regular price $19.68 AUD Regular price ~~$23.62 AUD~~ Sale price $19.68 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (d1) 7.000 mm (Equiv. 0.276 in.)	OD (D1) 17.000 mm _{- 0.040 / - 0.220} (Equiv. 0.669 in.)	Thickness (T) 5.000 mm _{+ 0.020 / - 0.180} (Equiv. 0.197 in.)	Bore (d2) 7.000 mm - 0.025 / - 0.202	OD (D2) 17.000 mm - 0.025 / - 0.202	Dynamic Load Capacity 31 kgf
Material: Chrome Steel Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0070-0170-F-NY Thrust Ball Bearings - 7x17x5 mm / 7 mm Flat - Chrome Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $14.14 AUD Regular price ~~$16.96 AUD~~ Sale price $14.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 7.000 mm (Equiv. 0.276 in.)	OD (D1) 17.000 mm _{- 0.040 / - 0.220} (Equiv. 0.669 in.)	Thickness (T) 5.000 mm _{+ 0.020 / - 0.180} (Equiv. 0.197 in.)	Bore (d2) 7.000 mm - 0.025 / - 0.202
Material: Chrome Steel OD (D2): 17.000 mm - 0.025 / - 0.202 Dynamic Load Capacity: 31 kgf Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0070-0170-F-NY Thrust Ball Bearings - 7x17x5 mm / 7 mm Flat - Chrome Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $14.14 AUD Regular price ~~$16.96 AUD~~ Sale price $14.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
T-0070-0170-F-NY --- Thrust Ball Bearings - 7x17x5 mm / 7 mm Flat - Chrome Steel Bearing Sale T-0070-0170-F-NY --- Thrust Ball Bearings - 7x17x5 mm / 7 mm Flat - Chrome Steel Bearing Regular price $14.14 AUD Regular price ~~$16.96 AUD~~ Sale price $14.14 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (d1) 8.000 mm (Equiv. 0.315 in.)	OD (D1) 16.000 mm (Equiv. 0.63 in.)	Thickness (T) 5.000 mm (Equiv. 0.197 in.)		OD (D2) 16.000 mm
Material: Stainless Steel 400 Series Category: Bearings - Thrust Ball - Flat - Stainless Steel
Part Number: T-0080-0160-F-S440 Thrust Ball Bearings - 8x16x5 mm Flat - Stainless Steel 400 Series Bearing 24 Available Now \| Item Discontinued - Up to 24 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $6.32 AUD Regular price ~~$14.41 AUD~~ Sale price $6.32 AUD Unit price per Each Quantity Required 24 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (d1) 8.000 mm (Equiv. 0.315 in.)	OD (D1) 16.000 mm (Equiv. 0.63 in.)	Thickness (T) 5.000 mm (Equiv. 0.197 in.)
Material: Stainless Steel 400 Series OD (D2): 16.000 mm Category: Bearings - Thrust Ball - Flat - Stainless Steel
Part Number: T-0080-0160-F-S440 Thrust Ball Bearings - 8x16x5 mm Flat - Stainless Steel 400 Series Bearing 24 Available Now \| Item Discontinued - Up to 24 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $6.32 AUD Regular price ~~$14.41 AUD~~ Sale price $6.32 AUD Unit price per Each Quantity Required 24 Available Now. These are priced to quit. Please contact us for a quote if you require more.
T-0080-0160-F-S440 --- Thrust Ball Bearings - 8x16x5 mm Flat - Stainless Steel 400 Series Bearing Sale T-0080-0160-F-S440 --- Thrust Ball Bearings - 8x16x5 mm Flat - Stainless Steel 400 Series Bearing Regular price $6.32 AUD Regular price ~~$14.41 AUD~~ Sale price $6.32 AUD Unit price per 24 Available Now Sale
Shaft Diameter (d1) 8.000 mm _{+ 0.08 / + 0.20} (Equiv. 0.315 in.)	OD (D1) 16.000 mm _{- 0.040 / - 0.220} (Equiv. 0.63 in.)	Thickness (T) 5.000 mm _{+ 0.020 / - 0.180} (Equiv. 0.197 in.)	Bore (d2) 8.000 mm - 0.025 / - 0.202	OD (D2) 16.000 mm - 0.025 / - 0.202	Dynamic Load Capacity 31 kgf
Material: Chrome Steel Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0080-0160-F-NY Thrust Ball Bearings - 8x16x5 mm / 8 mm Flat - Chrome Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $10.32 AUD Regular price ~~$12.38 AUD~~ Sale price $10.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 8.000 mm _{+ 0.08 / + 0.20} (Equiv. 0.315 in.)	OD (D1) 16.000 mm _{- 0.040 / - 0.220} (Equiv. 0.63 in.)	Thickness (T) 5.000 mm _{+ 0.020 / - 0.180} (Equiv. 0.197 in.)	Bore (d2) 8.000 mm - 0.025 / - 0.202
Material: Chrome Steel OD (D2): 16.000 mm - 0.025 / - 0.202 Dynamic Load Capacity: 31 kgf Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0080-0160-F-NY Thrust Ball Bearings - 8x16x5 mm / 8 mm Flat - Chrome Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $10.32 AUD Regular price ~~$12.38 AUD~~ Sale price $10.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
T-0080-0160-F-NY --- Thrust Ball Bearings - 8x16x5 mm / 8 mm Flat - Chrome Steel Bearing Sale T-0080-0160-F-NY --- Thrust Ball Bearings - 8x16x5 mm / 8 mm Flat - Chrome Steel Bearing Regular price $10.32 AUD Regular price ~~$12.38 AUD~~ Sale price $10.32 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (d1) 8.000 mm _{+ 0.08 / + 0.20} (Equiv. 0.315 in.)	OD (D1) 16.000 mm _{- 0.040 / - 0.220} (Equiv. 0.63 in.)	Thickness (T) 5.000 mm _{+ 0.020 / - 0.180} (Equiv. 0.197 in.)	Bore (d2) 8.000 mm - 0.025 / - 0.202	OD (D2) 16.000 mm - 0.025 / - 0.202	Dynamic Load Capacity 22 kgf
Material: Stainless Steel 400 Series and Nylon Category: Bearings - Thrust Ball - Flat - Stainless Steel
Part Number: T-0080-0160-F-S440-NY Thrust Ball Bearings - 8x16x5 mm / 8 mm Flat - Stainless Steel 400 Series and Nylon Bearing 3 Available Now \| Further orders can be expected around Tue, Sep 16, 2025 Regular price $7.50 AUD Regular price ~~$13.47 AUD~~ Sale price $7.50 AUD Unit price per Each Quantity Required 3 Available Now. Backorder if more than 3.
Shaft Diameter (d1) 8.000 mm _{+ 0.08 / + 0.20} (Equiv. 0.315 in.)	OD (D1) 16.000 mm _{- 0.040 / - 0.220} (Equiv. 0.63 in.)	Thickness (T) 5.000 mm _{+ 0.020 / - 0.180} (Equiv. 0.197 in.)	Bore (d2) 8.000 mm - 0.025 / - 0.202
Material: Stainless Steel 400 Series and Nylon OD (D2): 16.000 mm - 0.025 / - 0.202 Dynamic Load Capacity: 22 kgf Category: Bearings - Thrust Ball - Flat - Stainless Steel
Part Number: T-0080-0160-F-S440-NY Thrust Ball Bearings - 8x16x5 mm / 8 mm Flat - Stainless Steel 400 Series and Nylon Bearing 3 Available Now \| Further orders can be expected around Tue, Sep 16, 2025 Regular price $7.50 AUD Regular price ~~$13.47 AUD~~ Sale price $7.50 AUD Unit price per Each Quantity Required 3 Available Now. Backorder if more than 3.
T-0080-0160-F-S440-NY --- Thrust Ball Bearings - 8x16x5 mm / 8 mm Flat - Stainless Steel 400 Series and Nylon Bearing Sale T-0080-0160-F-S440-NY --- Thrust Ball Bearings - 8x16x5 mm / 8 mm Flat - Stainless Steel 400 Series and Nylon Bearing Regular price $7.50 AUD Regular price ~~$13.47 AUD~~ Sale price $7.50 AUD Unit price per 3 Available Now Sale
Shaft Diameter (d1) 8.000 mm (Equiv. 0.315 in.)	OD (D1) 16.000 mm (Equiv. 0.63 in.)	Thickness (T) 5.000 mm (Equiv. 0.197 in.)	Bore (d2) 8.000 mm	OD (D2) 16.000 mm	Dynamic Load Capacity 61 kgf
Material: Chrome Steel Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0080-0160-F-BR (100 Pcs) Thrust Ball Bearings - 8x16x5 mm / 8 mm Flat - Chrome Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Sat, Sep 27, 2025 Regular price $588.41 AUD Regular price ~~$706.09 AUD~~ Sale price $588.41 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 8.000 mm (Equiv. 0.315 in.)	OD (D1) 16.000 mm (Equiv. 0.63 in.)	Thickness (T) 5.000 mm (Equiv. 0.197 in.)	Bore (d2) 8.000 mm
Material: Chrome Steel OD (D2): 16.000 mm Dynamic Load Capacity: 61 kgf Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0080-0160-F-BR (100 Pcs) Thrust Ball Bearings - 8x16x5 mm / 8 mm Flat - Chrome Steel Bearing Out of Stock \| Backorder Now \| Orders can be expected around Sat, Sep 27, 2025 Regular price $588.41 AUD Regular price ~~$706.09 AUD~~ Sale price $588.41 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
T-0080-0160-F-BR (100 Pcs) --- Thrust Ball Bearings - 8x16x5 mm / 8 mm Flat - Chrome Steel Bearing Sale T-0080-0160-F-BR (100 Pcs) --- Thrust Ball Bearings - 8x16x5 mm / 8 mm Flat - Chrome Steel Bearing Regular price $588.41 AUD Regular price ~~$706.09 AUD~~ Sale price $588.41 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (d1) 9.000 mm (Equiv. 0.354 in.)	OD (D1) 17.000 mm (Equiv. 0.669 in.)	Thickness (T) 5.000 mm (Equiv. 0.197 in.)	Bore (d2) 9.000 mm	OD (D2) 17.000 mm	Dynamic Load Capacity 59 kgf
Material: Chrome Steel Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0090-0170-F-BR Thrust Ball Bearings - 9x17x5 mm / 9 mm Flat - Chrome Steel Bearing 44 Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Each Quantity Required 44 Available Now. Backorder if more than 44.
Shaft Diameter (d1) 9.000 mm (Equiv. 0.354 in.)	OD (D1) 17.000 mm (Equiv. 0.669 in.)	Thickness (T) 5.000 mm (Equiv. 0.197 in.)	Bore (d2) 9.000 mm
Material: Chrome Steel OD (D2): 17.000 mm Dynamic Load Capacity: 59 kgf Category: Bearings - Thrust Ball - Flat - Chrome Steel
Part Number: T-0090-0170-F-BR Thrust Ball Bearings - 9x17x5 mm / 9 mm Flat - Chrome Steel Bearing 44 Available Now \| Further orders can be expected around Sat, Sep 27, 2025 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Each Quantity Required 44 Available Now. Backorder if more than 44.
T-0090-0170-F-BR --- Thrust Ball Bearings - 9x17x5 mm / 9 mm Flat - Chrome Steel Bearing T-0090-0170-F-BR --- Thrust Ball Bearings - 9x17x5 mm / 9 mm Flat - Chrome Steel Bearing Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per 44 Available Now
Shaft Diameter (d1) 9.525 mm _{+ 0.076 / + 0.203} (Equiv. 0.375 in.)	OD (D1) 20.638 mm _{- 0.013 / - 0.208} (Equiv. 0.813 in.)	Thickness (T) 6.350 mm _{+ 0.076 / - 0.127} (Equiv. 0.25 in.)	Bore (d2) 9.525 mm - 0.025 / - 0.202	OD (D2) 20.638 mm - 0.025 / - 0.202	Dynamic Load Capacity 25 kgf
Material: Stainless Steel 400 Series and Nylon Category: Bearings - Thrust Ball - Flat - Stainless Steel
Part Number: T-0095-0204-F-S440-NY Thrust Ball Bearings - 9.525x20.638x6.35 mm / 9.525 mm Flat - Stainless Steel 400 Series and Nylon Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $11.68 AUD Regular price ~~$14.02 AUD~~ Sale price $11.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (d1) 9.525 mm _{+ 0.076 / + 0.203} (Equiv. 0.375 in.)	OD (D1) 20.638 mm _{- 0.013 / - 0.208} (Equiv. 0.813 in.)	Thickness (T) 6.350 mm _{+ 0.076 / - 0.127} (Equiv. 0.25 in.)	Bore (d2) 9.525 mm - 0.025 / - 0.202
Material: Stainless Steel 400 Series and Nylon OD (D2): 20.638 mm - 0.025 / - 0.202 Dynamic Load Capacity: 25 kgf Category: Bearings - Thrust Ball - Flat - Stainless Steel
Part Number: T-0095-0204-F-S440-NY Thrust Ball Bearings - 9.525x20.638x6.35 mm / 9.525 mm Flat - Stainless Steel 400 Series and Nylon Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $11.68 AUD Regular price ~~$14.02 AUD~~ Sale price $11.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
T-0095-0204-F-S440-NY --- Thrust Ball Bearings - 9.525x20.638x6.35 mm / 9.525 mm Flat - Stainless Steel 400 Series and Nylon Bearing Sale T-0095-0204-F-S440-NY --- Thrust Ball Bearings - 9.525x20.638x6.35 mm / 9.525 mm Flat - Stainless Steel 400 Series and Nylon Bearing Regular price $11.68 AUD Regular price ~~$14.02 AUD~~ Sale price $11.68 AUD Unit price per Out of stock! Backorder Now Sale

Country/region

Collection: Bearings - Thrust Ball - Flat

Category Details

Filter

Filter

Subscribe to our emails
