There are 28 products in the sub-categories of Bearings - Thrust Ball - Flat - Stainless Steel. Scroll down or follow the link to Bearings - Thrust Ball - Flat - Stainless Steel in the products table to see all these items combined into a handy table with filters.

Category Details

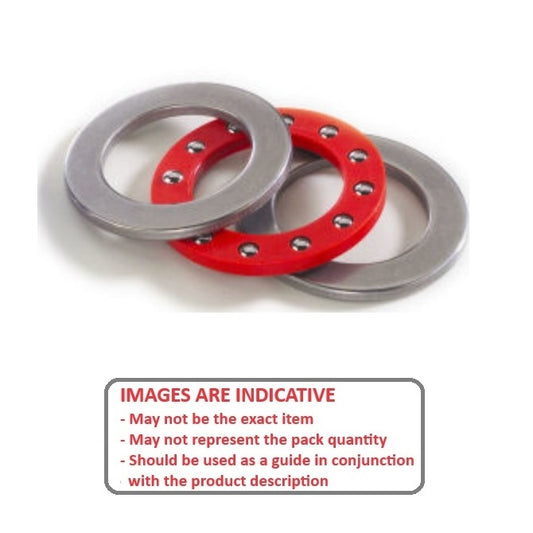

A selection of Stainless Steel Flat Thrust Ball Bearings. 3 Piece Thrust Bearings Open Type with Flat Washers

  • Thrust ball bearings provide for axial loads. They are designed to handle forces that push or pull along the axis of a rotating shaft
  • Commonly used in automotive, electric motors, marine propulsion, pumps and compressors, aerospace applications, industrial machinery, and wind turbines.
  • An expanded range may be available on special order. Please enquire.
  • These bearings are designed so that when one ring turns, the other remains stationary.
  • Some have a larger bore on one side allowing a shaft with no steps to pass through. Others will require a stepped shaft as they have the same bore on both races.
  • Some have a reduced size OD on one race allowing it to sit into an unstepped housing bore, whilst others will require a stepped housing to allow one ring to rotate.
  • Please be sure to take note of the figures shown for ID and OD of both races to ensure you select the correct bearing.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Bearings - Thrust Ball - Flat - Stainless Steel category on the Small Parts & Bearings online store.
Shaft Diameter (d1) O.D. (D1) Thickness (T) Bore (d2) OD (D2) Dynamic Load Capacity Indicative
Thrust Ball Bearings - 3.175x11.113x4.763 mm / 3.175 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
3.175
mm
+ 0.076 / + 0.203
(Equiv. 0.125 in.)
O.D. (D1)
11.113
mm
- 0.013 / - 0.208
(Equiv. 0.438 in.)
Thickness (T)
4.763
mm
+ 0.076 / + 0.215
(Equiv. 0.188 in.)
Bore (d2)
3.175
mm
- 0.025 / - 0.202
OD (D2)
11.113
mm
- 0.025 / - 0.202
Dynamic Load Capacity
15
kgf
Thrust Ball Bearings - 3.175x11.113x4.763 mm / 3.175 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    Cage Type: Moulded Nylon
Part Number: T-0032-0109-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$7.68 AUD
$9.22 AUD $7.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (d1) O.D. (D1) Thickness (T) Bore (d2) Indicative
Thrust Ball Bearings - 3.175x11.113x4.763 mm / 3.175 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
3.175
mm
+ 0.076 / + 0.203
(Equiv. 0.125 in.)
O.D. (D1)
11.113
mm
- 0.013 / - 0.208
(Equiv. 0.438 in.)
Thickness (T)
4.763
mm
+ 0.076 / + 0.215
(Equiv. 0.188 in.)
Bore (d2)
3.175
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 3.175x11.113x4.763 mm / 3.175 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    OD (D2): 11.113 mm - 0.025 / - 0.202    Dynamic Load Capacity: 15 kgf    Cage Type: Moulded Nylon
Part Number: T-0032-0109-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$7.68 AUD
$9.22 AUD $7.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 4.763x12.7x4.763 mm / 4.763 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
4.763
mm
+ 0.088 / + 0.190
(Equiv. 0.188 in.)
O.D. (D1)
12.700
mm
- 0.013 / - 0.208
(Equiv. 0.5 in.)
Thickness (T)
4.763
mm
+ 0.076 / + 0.215
(Equiv. 0.188 in.)
Bore (d2)
4.763
mm
- 0.025 / - 0.202
OD (D2)
12.700
mm
- 0.025 / - 0.202
Dynamic Load Capacity
17
kgf
Thrust Ball Bearings - 4.763x12.7x4.763 mm / 4.763 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    Cage Type: Moulded Nylon
Part Number: T-0048-0125-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$8.86 AUD
$10.64 AUD $8.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 4.763x12.7x4.763 mm / 4.763 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
4.763
mm
+ 0.088 / + 0.190
(Equiv. 0.188 in.)
O.D. (D1)
12.700
mm
- 0.013 / - 0.208
(Equiv. 0.5 in.)
Thickness (T)
4.763
mm
+ 0.076 / + 0.215
(Equiv. 0.188 in.)
Bore (d2)
4.763
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 4.763x12.7x4.763 mm / 4.763 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    OD (D2): 12.700 mm - 0.025 / - 0.202    Dynamic Load Capacity: 17 kgf    Cage Type: Moulded Nylon
Part Number: T-0048-0125-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$8.86 AUD
$10.64 AUD $8.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 5x12x5 mm / 5 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
5.000
mm
+ 0.08 / + 0.21
(Equiv. 0.197 in.)
O.D. (D1)
12.000
mm
- 0.040 / - 0.220
(Equiv. 0.472 in.)
Thickness (T)
5.000
mm
+ 0.020 / - 0.180
(Equiv. 0.197 in.)
Bore (d2)
5.000
mm
- 0.025 / - 0.202
OD (D2)
12.000
mm
- 0.025 / - 0.202
Dynamic Load Capacity
17
kgf
Thrust Ball Bearings - 5x12x5 mm / 5 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    Cage Type: Moulded Nylon
Part Number: T-0050-0120-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026
$15.50 AUD
$18.60 AUD $15.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 5x12x5 mm / 5 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
5.000
mm
+ 0.08 / + 0.21
(Equiv. 0.197 in.)
O.D. (D1)
12.000
mm
- 0.040 / - 0.220
(Equiv. 0.472 in.)
Thickness (T)
5.000
mm
+ 0.020 / - 0.180
(Equiv. 0.197 in.)
Bore (d2)
5.000
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 5x12x5 mm / 5 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    OD (D2): 12.000 mm - 0.025 / - 0.202    Dynamic Load Capacity: 17 kgf    Cage Type: Moulded Nylon
Part Number: T-0050-0120-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026
$15.50 AUD
$18.60 AUD $15.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 6x14x5 mm / 6 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
6.000
mm
+ 0.07 / + 0.20
(Equiv. 0.236 in.)
O.D. (D1)
14.000
mm
- 0.040 / - 0.220
(Equiv. 0.551 in.)
Thickness (T)
5.000
mm
+ 0.020 / - 0.180
(Equiv. 0.197 in.)
Bore (d2)
6.000
mm
- 0.025 / - 0.202
OD (D2)
14.000
mm
- 0.025 / - 0.202
Dynamic Load Capacity
19
kgf
Thrust Ball Bearings - 6x14x5 mm / 6 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    Cage Type: Moulded Nylon
Part Number: T-0060-0140-F-S440-NY (Each)
10 Available Now | Further orders can be expected around Mon, Jul 13, 2026
$31.68 AUD
$31.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 10 available can be backordered.
Thrust Ball Bearings - 6x14x5 mm / 6 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
6.000
mm
+ 0.07 / + 0.20
(Equiv. 0.236 in.)
O.D. (D1)
14.000
mm
- 0.040 / - 0.220
(Equiv. 0.551 in.)
Thickness (T)
5.000
mm
+ 0.020 / - 0.180
(Equiv. 0.197 in.)
Bore (d2)
6.000
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 6x14x5 mm / 6 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    OD (D2): 14.000 mm - 0.025 / - 0.202    Dynamic Load Capacity: 19 kgf    Cage Type: Moulded Nylon
Part Number: T-0060-0140-F-S440-NY (Each)
10 Available Now | Further orders can be expected around Mon, Jul 13, 2026
$31.68 AUD
$31.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

10 Available Now. Backorder if more than 10.
Thrust Ball Bearings - 6.35x14.288x4.763 mm / 6.35 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
6.350
mm
+ 0.076 / + 0.203
(Equiv. 0.25 in.)
O.D. (D1)
14.288
mm
- 0.013 / - 0.208
(Equiv. 0.563 in.)
Thickness (T)
4.763
mm
+ 0.076 / + 0.215
(Equiv. 0.188 in.)
Bore (d2)
6.350
mm
- 0.025 / - 0.202
OD (D2)
14.288
mm
- 0.025 / - 0.202
Dynamic Load Capacity
20
kgf
Thrust Ball Bearings - 6.35x14.288x4.763 mm / 6.35 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    Cage Type: Moulded Nylon
Part Number: T-0064-0141-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$37.05 AUD
$37.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 6.35x14.288x4.763 mm / 6.35 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
6.350
mm
+ 0.076 / + 0.203
(Equiv. 0.25 in.)
O.D. (D1)
14.288
mm
- 0.013 / - 0.208
(Equiv. 0.563 in.)
Thickness (T)
4.763
mm
+ 0.076 / + 0.215
(Equiv. 0.188 in.)
Bore (d2)
6.350
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 6.35x14.288x4.763 mm / 6.35 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    OD (D2): 14.288 mm - 0.025 / - 0.202    Dynamic Load Capacity: 20 kgf    Cage Type: Moulded Nylon
Part Number: T-0064-0141-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$37.05 AUD
$37.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 7x17x5 mm / 7 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
7.000
mm
+ 0.06 / + 0.18
(Equiv. 0.276 in.)
O.D. (D1)
17.000
mm
- 0.040 / - 0.220
(Equiv. 0.669 in.)
Thickness (T)
5.000
mm
+ 0.020 / - 0.180
(Equiv. 0.197 in.)
Bore (d2)
7.000
mm
- 0.025 / - 0.202
OD (D2)
17.000
mm
- 0.025 / - 0.202
Dynamic Load Capacity
22
kgf
Thrust Ball Bearings - 7x17x5 mm / 7 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    Cage Type: Moulded Nylon
Part Number: T-0070-0170-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026
$17.05 AUD
$20.45 AUD $17.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 7x17x5 mm / 7 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
7.000
mm
+ 0.06 / + 0.18
(Equiv. 0.276 in.)
O.D. (D1)
17.000
mm
- 0.040 / - 0.220
(Equiv. 0.669 in.)
Thickness (T)
5.000
mm
+ 0.020 / - 0.180
(Equiv. 0.197 in.)
Bore (d2)
7.000
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 7x17x5 mm / 7 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    OD (D2): 17.000 mm - 0.025 / - 0.202    Dynamic Load Capacity: 22 kgf    Cage Type: Moulded Nylon
Part Number: T-0070-0170-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026
$17.05 AUD
$20.45 AUD $17.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 8x16x5 mm Flat - Stainless Steel 400 Series Bearing
Shaft Diameter (d1)
8.000
mm
O.D. (D1)
16.000
mm
Thickness (T)
5.000
mm
OD (D2)
16.000
mm
Thrust Ball Bearings - 8x16x5 mm Flat - Stainless Steel 400 Series
Material: Stainless Steel 400 Series    Cage Type: Stainless Steel
Part Number: T-0080-0160-F-S440 (Each)
24 Available Now | Item Discontinued - Up to 24 may be ordered online. No backorders. Please contact us if you need a larger quantity
$5.59 AUD
$12.74 AUD $5.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

24 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Thrust Ball Bearings - 8x16x5 mm Flat - Stainless Steel 400 Series Bearing
Shaft Diameter (d1)
8.000
mm
O.D. (D1)
16.000
mm
Thickness (T)
5.000
mm
Thrust Ball Bearings - 8x16x5 mm Flat - Stainless Steel 400 Series
Material: Stainless Steel 400 Series    OD (D2): 16.000 mm    Cage Type: Stainless Steel
Part Number: T-0080-0160-F-S440 (Each)
24 Available Now | Item Discontinued - Up to 24 may be ordered online. No backorders. Please contact us if you need a larger quantity
$5.59 AUD
$12.74 AUD $5.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

24 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Thrust Ball Bearings - 8x16x5 mm / 8 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
8.000
mm
+ 0.08 / + 0.20
(Equiv. 0.315 in.)
O.D. (D1)
16.000
mm
- 0.040 / - 0.220
(Equiv. 0.63 in.)
Thickness (T)
5.000
mm
+ 0.020 / - 0.180
(Equiv. 0.197 in.)
Bore (d2)
8.000
mm
- 0.025 / - 0.202
OD (D2)
16.000
mm
- 0.025 / - 0.202
Dynamic Load Capacity
22
kgf
Thrust Ball Bearings - 8x16x5 mm / 8 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    Cage Type: Moulded Nylon
Part Number: T-0080-0160-F-S440-NY (Each)
3 Available Now | Further orders can be expected around Sat, Jun 27, 2026
$7.50 AUD
$13.47 AUD $7.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 3 available can be backordered.
Thrust Ball Bearings - 8x16x5 mm / 8 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
8.000
mm
+ 0.08 / + 0.20
(Equiv. 0.315 in.)
O.D. (D1)
16.000
mm
- 0.040 / - 0.220
(Equiv. 0.63 in.)
Thickness (T)
5.000
mm
+ 0.020 / - 0.180
(Equiv. 0.197 in.)
Bore (d2)
8.000
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 8x16x5 mm / 8 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    OD (D2): 16.000 mm - 0.025 / - 0.202    Dynamic Load Capacity: 22 kgf    Cage Type: Moulded Nylon
Part Number: T-0080-0160-F-S440-NY (Each)
3 Available Now | Further orders can be expected around Sat, Jun 27, 2026
$7.50 AUD
$13.47 AUD $7.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

3 Available Now. Backorder if more than 3.
Thrust Ball Bearings - 9.525x20.638x6.35 mm / 9.525 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
9.525
mm
+ 0.076 / + 0.203
(Equiv. 0.375 in.)
O.D. (D1)
20.638
mm
- 0.013 / - 0.208
(Equiv. 0.813 in.)
Thickness (T)
6.350
mm
+ 0.076 / - 0.127
(Equiv. 0.25 in.)
Bore (d2)
9.525
mm
- 0.025 / - 0.202
OD (D2)
20.638
mm
- 0.025 / - 0.202
Dynamic Load Capacity
25
kgf
Thrust Ball Bearings - 9.525x20.638x6.35 mm / 9.525 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    Cage Type: Moulded Nylon
Part Number: T-0095-0204-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$11.68 AUD
$14.02 AUD $11.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 9.525x20.638x6.35 mm / 9.525 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
9.525
mm
+ 0.076 / + 0.203
(Equiv. 0.375 in.)
O.D. (D1)
20.638
mm
- 0.013 / - 0.208
(Equiv. 0.813 in.)
Thickness (T)
6.350
mm
+ 0.076 / - 0.127
(Equiv. 0.25 in.)
Bore (d2)
9.525
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 9.525x20.638x6.35 mm / 9.525 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    OD (D2): 20.638 mm - 0.025 / - 0.202    Dynamic Load Capacity: 25 kgf    Cage Type: Moulded Nylon
Part Number: T-0095-0204-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$11.68 AUD
$14.02 AUD $11.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 10x21x6.35 mm / 10 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
10.000
mm
+ 0.06 / + 0.19
(Equiv. 0.394 in.)
O.D. (D1)
21.000
mm
- 0.040 / - 0.220
(Equiv. 0.827 in.)
Thickness (T)
6.350
mm
+ 0.076 / - 0.127
(Equiv. 0.25 in.)
Bore (d2)
10.000
mm
- 0.025 / - 0.202
OD (D2)
21.000
mm
- 0.025 / - 0.202
Dynamic Load Capacity
24
kgf
Thrust Ball Bearings - 10x21x6.35 mm / 10 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    Cage Type: Moulded Nylon
Part Number: T-0100-0210-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026
$17.32 AUD
$20.78 AUD $17.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 10x21x6.35 mm / 10 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
10.000
mm
+ 0.06 / + 0.19
(Equiv. 0.394 in.)
O.D. (D1)
21.000
mm
- 0.040 / - 0.220
(Equiv. 0.827 in.)
Thickness (T)
6.350
mm
+ 0.076 / - 0.127
(Equiv. 0.25 in.)
Bore (d2)
10.000
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 10x21x6.35 mm / 10 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    OD (D2): 21.000 mm - 0.025 / - 0.202    Dynamic Load Capacity: 24 kgf    Cage Type: Moulded Nylon
Part Number: T-0100-0210-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026
$17.32 AUD
$20.78 AUD $17.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 11.112x22.225x6.35 mm / 11.113 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
11.112
mm
+ 0.088 / + 0.215
(Equiv. 0.437 in.)
O.D. (D1)
22.225
mm
- 0.013 / - 0.208
(Equiv. 0.875 in.)
Thickness (T)
6.350
mm
+ 0.076 / - 0.127
(Equiv. 0.25 in.)
Bore (d2)
11.113
mm
- 0.025 / - 0.202
OD (D2)
22.225
mm
- 0.025 / - 0.202
Dynamic Load Capacity
29
kgf
Thrust Ball Bearings - 11.112x22.225x6.35 mm / 11.113 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    Cage Type: Moulded Nylon
Part Number: T-0111-0220-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$12.14 AUD
$14.56 AUD $12.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 11.112x22.225x6.35 mm / 11.113 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
11.112
mm
+ 0.088 / + 0.215
(Equiv. 0.437 in.)
O.D. (D1)
22.225
mm
- 0.013 / - 0.208
(Equiv. 0.875 in.)
Thickness (T)
6.350
mm
+ 0.076 / - 0.127
(Equiv. 0.25 in.)
Bore (d2)
11.113
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 11.112x22.225x6.35 mm / 11.113 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    OD (D2): 22.225 mm - 0.025 / - 0.202    Dynamic Load Capacity: 29 kgf    Cage Type: Moulded Nylon
Part Number: T-0111-0220-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$12.14 AUD
$14.56 AUD $12.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 12x24x6.35 mm / 12 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
12.000
mm
+ 0.06 / + 0.19
(Equiv. 0.472 in.)
O.D. (D1)
24.000
mm
- 0.040 / - 0.220
(Equiv. 0.945 in.)
Thickness (T)
6.350
mm
+ 0.076 / - 0.127
(Equiv. 0.25 in.)
Bore (d2)
12.000
mm
- 0.025 / - 0.202
OD (D2)
24.000
mm
- 0.025 / - 0.202
Dynamic Load Capacity
32
kgf
Thrust Ball Bearings - 12x24x6.35 mm / 12 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    Cage Type: Moulded Nylon
Part Number: T-0120-0240-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026
$18.23 AUD
$21.87 AUD $18.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 12x24x6.35 mm / 12 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
12.000
mm
+ 0.06 / + 0.19
(Equiv. 0.472 in.)
O.D. (D1)
24.000
mm
- 0.040 / - 0.220
(Equiv. 0.945 in.)
Thickness (T)
6.350
mm
+ 0.076 / - 0.127
(Equiv. 0.25 in.)
Bore (d2)
12.000
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 12x24x6.35 mm / 12 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    OD (D2): 24.000 mm - 0.025 / - 0.202    Dynamic Load Capacity: 32 kgf    Cage Type: Moulded Nylon
Part Number: T-0120-0240-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026
$18.23 AUD
$21.87 AUD $18.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 12.7x23.813x6.35 mm / 12.7 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
12.700
mm
+ 0.076 / + 0.203
(Equiv. 0.5 in.)
O.D. (D1)
23.813
mm
- 0.013 / - 0.208
(Equiv. 0.938 in.)
Thickness (T)
6.350
mm
+ 0.076 / - 0.127
(Equiv. 0.25 in.)
Bore (d2)
12.700
mm
- 0.025 / - 0.202
OD (D2)
23.813
mm
- 0.025 / - 0.202
Dynamic Load Capacity
33
kgf
Thrust Ball Bearings - 12.7x23.813x6.35 mm / 12.7 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    Cage Type: Moulded Nylon
Part Number: T-0127-0236-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$13.95 AUD
$16.75 AUD $13.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 12.7x23.813x6.35 mm / 12.7 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
12.700
mm
+ 0.076 / + 0.203
(Equiv. 0.5 in.)
O.D. (D1)
23.813
mm
- 0.013 / - 0.208
(Equiv. 0.938 in.)
Thickness (T)
6.350
mm
+ 0.076 / - 0.127
(Equiv. 0.25 in.)
Bore (d2)
12.700
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 12.7x23.813x6.35 mm / 12.7 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    OD (D2): 23.813 mm - 0.025 / - 0.202    Dynamic Load Capacity: 33 kgf    Cage Type: Moulded Nylon
Part Number: T-0127-0236-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$13.95 AUD
$16.75 AUD $13.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 14.288x25.4x6.35 mm / 14.288 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
14.288
mm
+ 0.089 / + 0.216
(Equiv. 0.563 in.)
O.D. (D1)
25.400
mm
- 0.013 / - 0.208
(Equiv. 1 in.)
Thickness (T)
6.350
mm
+ 0.076 / - 0.127
(Equiv. 0.25 in.)
Bore (d2)
14.288
mm
- 0.025 / - 0.202
OD (D2)
25.400
mm
- 0.025 / - 0.202
Dynamic Load Capacity
37
kgf
Thrust Ball Bearings - 14.288x25.4x6.35 mm / 14.288 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    Cage Type: Moulded Nylon
Part Number: T-0143-0252-F-S440-NY (Each)
2 Available Now | Further orders can be expected around Sat, Jun 27, 2026
$20.68 AUD
$20.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Thrust Ball Bearings - 14.288x25.4x6.35 mm / 14.288 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
14.288
mm
+ 0.089 / + 0.216
(Equiv. 0.563 in.)
O.D. (D1)
25.400
mm
- 0.013 / - 0.208
(Equiv. 1 in.)
Thickness (T)
6.350
mm
+ 0.076 / - 0.127
(Equiv. 0.25 in.)
Bore (d2)
14.288
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 14.288x25.4x6.35 mm / 14.288 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    OD (D2): 25.400 mm - 0.025 / - 0.202    Dynamic Load Capacity: 37 kgf    Cage Type: Moulded Nylon
Part Number: T-0143-0252-F-S440-NY (Each)
2 Available Now | Further orders can be expected around Sat, Jun 27, 2026
$20.68 AUD
$20.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Thrust Ball Bearings - 15.875x28.575x8.731 mm / 15.875 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
15.875
mm
+ 0.076 / + 0.203
(Equiv. 0.625 in.)
O.D. (D1)
28.575
mm
- 0.013 / - 0.208
(Equiv. 1.125 in.)
Thickness (T)
8.731
mm
+ 0.076 / - 0.127
(Equiv. 0.344 in.)
Bore (d2)
15.875
mm
- 0.025 / - 0.202
OD (D2)
28.575
mm
- 0.025 / - 0.202
Dynamic Load Capacity
40
kgf
Thrust Ball Bearings - 15.875x28.575x8.731 mm / 15.875 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    Cage Type: Moulded Nylon
Part Number: T-0159-0283-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$46.23 AUD
$55.47 AUD $46.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 15.875x28.575x8.731 mm / 15.875 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
15.875
mm
+ 0.076 / + 0.203
(Equiv. 0.625 in.)
O.D. (D1)
28.575
mm
- 0.013 / - 0.208
(Equiv. 1.125 in.)
Thickness (T)
8.731
mm
+ 0.076 / - 0.127
(Equiv. 0.344 in.)
Bore (d2)
15.875
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 15.875x28.575x8.731 mm / 15.875 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    OD (D2): 28.575 mm - 0.025 / - 0.202    Dynamic Load Capacity: 40 kgf    Cage Type: Moulded Nylon
Part Number: T-0159-0283-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$46.23 AUD
$55.47 AUD $46.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 16x28x8.731 mm / 16 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
16.000
mm
+ 0.07 / + 0.26
(Equiv. 0.63 in.)
O.D. (D1)
28.000
mm
- 0.040 / - 0.220
(Equiv. 1.102 in.)
Thickness (T)
8.731
mm
+ 0.076 / - 0.127
(Equiv. 0.344 in.)
Bore (d2)
16.000
mm
- 0.025 / - 0.202
OD (D2)
28.000
mm
- 0.025 / - 0.202
Dynamic Load Capacity
40
kgf
Thrust Ball Bearings - 16x28x8.731 mm / 16 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    Cage Type: Moulded Nylon
Part Number: T-0160-0280-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026
$23.14 AUD
$27.76 AUD $23.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 16x28x8.731 mm / 16 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
16.000
mm
+ 0.07 / + 0.26
(Equiv. 0.63 in.)
O.D. (D1)
28.000
mm
- 0.040 / - 0.220
(Equiv. 1.102 in.)
Thickness (T)
8.731
mm
+ 0.076 / - 0.127
(Equiv. 0.344 in.)
Bore (d2)
16.000
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 16x28x8.731 mm / 16 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    OD (D2): 28.000 mm - 0.025 / - 0.202    Dynamic Load Capacity: 40 kgf    Cage Type: Moulded Nylon
Part Number: T-0160-0280-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026
$23.14 AUD
$27.76 AUD $23.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 17.463x30.175x8.731 mm / 17.463 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
17.463
mm
+ 0.088 / + 0.262
(Equiv. 0.688 in.)
O.D. (D1)
30.175
mm
- 0.013 / - 0.208
(Equiv. 1.188 in.)
Thickness (T)
8.731
mm
+ 0.076 / - 0.127
(Equiv. 0.344 in.)
Bore (d2)
17.463
mm
- 0.025 / - 0.202
OD (D2)
30.163
mm
- 0.025 / - 0.202
Dynamic Load Capacity
47
kgf
Thrust Ball Bearings - 17.463x30.175x8.731 mm / 17.463 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    Cage Type: Moulded Nylon
Part Number: T-0175-0299-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$21.32 AUD
$25.58 AUD $21.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 17.463x30.175x8.731 mm / 17.463 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
17.463
mm
+ 0.088 / + 0.262
(Equiv. 0.688 in.)
O.D. (D1)
30.175
mm
- 0.013 / - 0.208
(Equiv. 1.188 in.)
Thickness (T)
8.731
mm
+ 0.076 / - 0.127
(Equiv. 0.344 in.)
Bore (d2)
17.463
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 17.463x30.175x8.731 mm / 17.463 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    OD (D2): 30.163 mm - 0.025 / - 0.202    Dynamic Load Capacity: 47 kgf    Cage Type: Moulded Nylon
Part Number: T-0175-0299-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$21.32 AUD
$25.58 AUD $21.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 19x32x8.731 mm / 19 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
19.000
mm
+ 0.08 / + 0.25
(Equiv. 0.748 in.)
O.D. (D1)
32.000
mm
- 0.040 / - 0.220
(Equiv. 1.26 in.)
Thickness (T)
8.731
mm
+ 0.076 / - 0.127
(Equiv. 0.344 in.)
Bore (d2)
19.000
mm
- 0.025 / - 0.202
OD (D2)
32.000
mm
- 0.025 / - 0.202
Dynamic Load Capacity
40
kgf
Thrust Ball Bearings - 19x32x8.731 mm / 19 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    Cage Type: Moulded Nylon
Part Number: T-0190-0320-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026
$28.77 AUD
$34.53 AUD $28.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 19x32x8.731 mm / 19 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
19.000
mm
+ 0.08 / + 0.25
(Equiv. 0.748 in.)
O.D. (D1)
32.000
mm
- 0.040 / - 0.220
(Equiv. 1.26 in.)
Thickness (T)
8.731
mm
+ 0.076 / - 0.127
(Equiv. 0.344 in.)
Bore (d2)
19.000
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 19x32x8.731 mm / 19 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    OD (D2): 32.000 mm - 0.025 / - 0.202    Dynamic Load Capacity: 40 kgf    Cage Type: Moulded Nylon
Part Number: T-0190-0320-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026
$28.77 AUD
$34.53 AUD $28.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 19.05x31.75x8.731 mm / 19.05 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
19.050
mm
+ 0.076 / + 0.263
(Equiv. 0.75 in.)
O.D. (D1)
31.750
mm
- 0.013 / - 0.208
(Equiv. 1.25 in.)
Thickness (T)
8.731
mm
+ 0.076 / - 0.127
(Equiv. 0.344 in.)
Bore (d2)
19.050
mm
- 0.025 / - 0.202
OD (D2)
31.750
mm
- 0.025 / - 0.202
Dynamic Load Capacity
54
kgf
Thrust Ball Bearings - 19.05x31.75x8.731 mm / 19.05 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    Cage Type: Moulded Nylon
Part Number: T-0191-0315-F-S440-NY (Each)
2 Available Now | Further orders can be expected around Sat, Jun 27, 2026
$15.50 AUD
$28.29 AUD $15.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Thrust Ball Bearings - 19.05x31.75x8.731 mm / 19.05 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
19.050
mm
+ 0.076 / + 0.263
(Equiv. 0.75 in.)
O.D. (D1)
31.750
mm
- 0.013 / - 0.208
(Equiv. 1.25 in.)
Thickness (T)
8.731
mm
+ 0.076 / - 0.127
(Equiv. 0.344 in.)
Bore (d2)
19.050
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 19.05x31.75x8.731 mm / 19.05 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    OD (D2): 31.750 mm - 0.025 / - 0.202    Dynamic Load Capacity: 54 kgf    Cage Type: Moulded Nylon
Part Number: T-0191-0315-F-S440-NY (Each)
2 Available Now | Further orders can be expected around Sat, Jun 27, 2026
$15.50 AUD
$28.29 AUD $15.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Thrust Ball Bearings - 20.638x33.338x8.731 mm / 20.638 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
20.638
mm
+ 0.088 / + 0.262
(Equiv. 0.813 in.)
O.D. (D1)
33.338
mm
- 0.013 / - 0.208
(Equiv. 1.313 in.)
Thickness (T)
8.731
mm
+ 0.076 / - 0.127
(Equiv. 0.344 in.)
Bore (d2)
20.638
mm
- 0.025 / - 0.202
OD (D2)
33.338
mm
- 0.025 / - 0.202
Dynamic Load Capacity
60
kgf
Thrust Ball Bearings - 20.638x33.338x8.731 mm / 20.638 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    Cage Type: Moulded Nylon
Part Number: T-0206-0331-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$23.50 AUD
$28.20 AUD $23.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 20.638x33.338x8.731 mm / 20.638 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
20.638
mm
+ 0.088 / + 0.262
(Equiv. 0.813 in.)
O.D. (D1)
33.338
mm
- 0.013 / - 0.208
(Equiv. 1.313 in.)
Thickness (T)
8.731
mm
+ 0.076 / - 0.127
(Equiv. 0.344 in.)
Bore (d2)
20.638
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 20.638x33.338x8.731 mm / 20.638 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    OD (D2): 33.338 mm - 0.025 / - 0.202    Dynamic Load Capacity: 60 kgf    Cage Type: Moulded Nylon
Part Number: T-0206-0331-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$23.50 AUD
$28.20 AUD $23.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 22.225x34.925x8.731 mm / 22.225 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
22.225
mm
+ 0.076 / + 0.263
(Equiv. 0.875 in.)
O.D. (D1)
34.925
mm
- 0.013 / - 0.208
(Equiv. 1.375 in.)
Thickness (T)
8.731
mm
+ 0.076 / - 0.127
(Equiv. 0.344 in.)
Bore (d2)
22.225
mm
- 0.025 / - 0.202
OD (D2)
34.925
mm
- 0.025 / - 0.202
Dynamic Load Capacity
67
kgf
Thrust Ball Bearings - 22.225x34.925x8.731 mm / 22.225 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    Cage Type: Moulded Nylon
Part Number: T-0222-0347-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$24.77 AUD
$29.73 AUD $24.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 22.225x34.925x8.731 mm / 22.225 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
22.225
mm
+ 0.076 / + 0.263
(Equiv. 0.875 in.)
O.D. (D1)
34.925
mm
- 0.013 / - 0.208
(Equiv. 1.375 in.)
Thickness (T)
8.731
mm
+ 0.076 / - 0.127
(Equiv. 0.344 in.)
Bore (d2)
22.225
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 22.225x34.925x8.731 mm / 22.225 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    OD (D2): 34.925 mm - 0.025 / - 0.202    Dynamic Load Capacity: 67 kgf    Cage Type: Moulded Nylon
Part Number: T-0222-0347-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$24.77 AUD
$29.73 AUD $24.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 23.813x36.688x11.113 mm / 23.813 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
23.813
mm
+ 0.088 / + 0.262
(Equiv. 0.938 in.)
O.D. (D1)
36.688
mm
- 0.013 / - 0.208
(Equiv. 1.444 in.)
Thickness (T)
11.113
mm
+ 0.360 / - 0.240
(Equiv. 0.438 in.)
Bore (d2)
23.813
mm
- 0.025 / - 0.202
OD (D2)
39.688
mm
- 0.025 / - 0.202
Dynamic Load Capacity
75
kgf
Thrust Ball Bearings - 23.813x36.688x11.113 mm / 23.813 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    Cage Type: Moulded Nylon
Part Number: T-0238-0394-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$37.05 AUD
$44.45 AUD $37.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 23.813x36.688x11.113 mm / 23.813 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
23.813
mm
+ 0.088 / + 0.262
(Equiv. 0.938 in.)
O.D. (D1)
36.688
mm
- 0.013 / - 0.208
(Equiv. 1.444 in.)
Thickness (T)
11.113
mm
+ 0.360 / - 0.240
(Equiv. 0.438 in.)
Bore (d2)
23.813
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 23.813x36.688x11.113 mm / 23.813 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    OD (D2): 39.688 mm - 0.025 / - 0.202    Dynamic Load Capacity: 75 kgf    Cage Type: Moulded Nylon
Part Number: T-0238-0394-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$37.05 AUD
$44.45 AUD $37.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 25x41x11 mm / 25 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
25.000
mm
+ 0.070 / + 0.300
(Equiv. 0.984 in.)
O.D. (D1)
41.000
mm
- 0.040 / - 0.220
(Equiv. 1.614 in.)
Thickness (T)
11.000
mm
+ 0.360 / - 0.240
(Equiv. 0.433 in.)
Bore (d2)
25.000
mm
- 0.025 / - 0.202
OD (D2)
41.000
mm
- 0.025 / - 0.202
Dynamic Load Capacity
80
kgf
Thrust Ball Bearings - 25x41x11 mm / 25 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    Cage Type: Moulded Nylon
Part Number: T-0250-0410-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026
$45.77 AUD
$54.93 AUD $45.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 25x41x11 mm / 25 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
25.000
mm
+ 0.070 / + 0.300
(Equiv. 0.984 in.)
O.D. (D1)
41.000
mm
- 0.040 / - 0.220
(Equiv. 1.614 in.)
Thickness (T)
11.000
mm
+ 0.360 / - 0.240
(Equiv. 0.433 in.)
Bore (d2)
25.000
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 25x41x11 mm / 25 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    OD (D2): 41.000 mm - 0.025 / - 0.202    Dynamic Load Capacity: 80 kgf    Cage Type: Moulded Nylon
Part Number: T-0250-0410-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026
$45.77 AUD
$54.93 AUD $45.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 25.4x41.275x11.113 mm / 25.4 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
25.400
mm
+ 0.076 / + 0.263
(Equiv. 1 in.)
O.D. (D1)
41.275
mm
- 0.013 / - 0.208
(Equiv. 1.625 in.)
Thickness (T)
11.113
mm
+ 0.360 / - 0.240
(Equiv. 0.438 in.)
Bore (d2)
25.400
mm
- 0.025 / - 0.202
OD (D2)
41.275
mm
- 0.025 / - 0.202
Dynamic Load Capacity
83
kgf
Thrust Ball Bearings - 25.4x41.275x11.113 mm / 25.4 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    Cage Type: Moulded Nylon
Part Number: T-0254-0410-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$39.95 AUD
$47.95 AUD $39.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thrust Ball Bearings - 25.4x41.275x11.113 mm / 25.4 mm Flat - Stainless Steel 400 Series and Nylon Bearing
Shaft Diameter (d1)
25.400
mm
+ 0.076 / + 0.263
(Equiv. 1 in.)
O.D. (D1)
41.275
mm
- 0.013 / - 0.208
(Equiv. 1.625 in.)
Thickness (T)
11.113
mm
+ 0.360 / - 0.240
(Equiv. 0.438 in.)
Bore (d2)
25.400
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 25.4x41.275x11.113 mm / 25.4 mm Flat - Stainless Steel 400 Series and Nylon
Material: Stainless Steel 400 Series and Nylon    OD (D2): 41.275 mm - 0.025 / - 0.202    Dynamic Load Capacity: 83 kgf    Cage Type: Moulded Nylon
Part Number: T-0254-0410-F-S440-NY (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$39.95 AUD
$47.95 AUD $39.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
