Collection: Bearings - Conveyor
Bearings -> ConveyorThere are 41 products in the sub-categories of Bearings - Conveyor. Scroll down or follow the link to Bearings - Conveyor in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.
Bearings - Conveyor - Double Row
This category includes various types of conveyor bearings. This range includes plastic...
Bearings - Conveyor - Single Row
This category includes various types of conveyor bearings. This range includes plastic...
Category Details

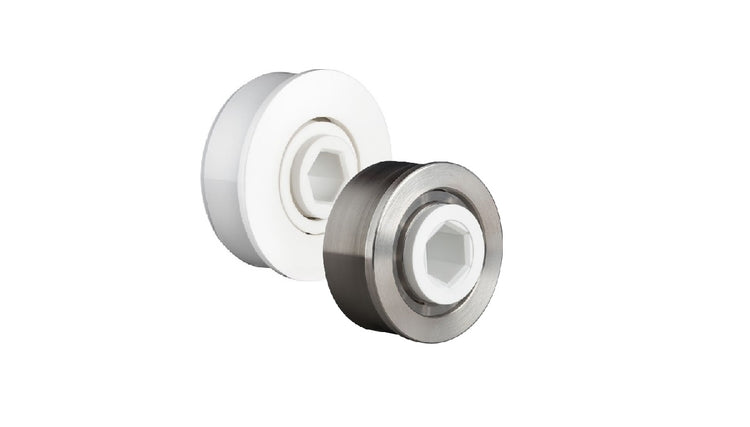

This category includes various types of conveyor bearings.
- This range includes plastic and stainless steel bearings for conveyor lines using hexagonal shafting.
- Both types are ideal for coping with regular washdown.
- Loads and Speeds are for reference only. Testing recommended.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Bearings - Conveyor category on the Small Parts & Bearings online store.
| Hex Bore (A) | OD (B) | Width (C) | Width (D) | Flange Dia. (E) | Flange Width (F) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Hex Bore (A)
7.94
mm + 0.30 / - 0.00
(Equiv. 0.313 in.) |
OD (B)
25.40
mm +/- 0.080 (Equiv. 1 in.) |
Width (C)
21.34
mm (Equiv. 0.84 in.) |
Width (D)
11.94
mm |
Flange Dia. (E)
29.46
mm |
Flange Width (F)
3.05
mm |
|
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Max Speed Unloaded: 1280 RPM
Category: Bearings - Conveyor - Double Row |
||||||
|
Part Number: CB-254-079H-21-PD (10 Pcs)
Conveyor Bearings - 7.94x25.4x21.34 mm / 11.94 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$209.68 AUD
Regular price
Unit price
per
Per 10
|
||||||
| Hex Bore (A) | OD (B) | Width (C) | Width (D) |
Indicative Image |
||
|
Hex Bore (A)
7.94
mm + 0.30 / - 0.00 (Equiv. 0.313 in.) |
OD (B)
25.40
mm +/- 0.080 (Equiv. 1 in.) |
Width (C)
21.34
mm (Equiv. 0.84 in.) |
Width (D)
11.94
mm |
|
||
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Flange Dia. (E): 29.46 mm
Flange Width (F): 3.05 mm
Max Speed Unloaded: 1280 RPM
Category: Bearings - Conveyor - Double Row |
||||||
|
Part Number: CB-254-079H-21-PD (10 Pcs)
Conveyor Bearings - 7.94x25.4x21.34 mm / 11.94 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$209.68 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Hex Bore (A)
7.94
mm + 0.30 / - 0.00
(Equiv. 0.313 in.) |
OD (B)
25.40
mm +/- 0.080 (Equiv. 1 in.) |
Width (C)
21.34
mm (Equiv. 0.84 in.) |
Width (D)
11.94
mm |
Flange Dia. (E)
29.46
mm |
Flange Width (F)
3.05
mm |
|
|
Material: Stainless Steel 316 Balls and Races
Max Speed Unloaded: 1600 RPM
Category: Bearings - Conveyor - Single Row |
||||||
|
Part Number: CB-254-079H-21-6S (25 Pcs)
Conveyor Bearings - 7.94x25.4x21.34 mm / 11.94 mm Single Row - Stainless Steel 316 Balls and Races Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$1,549.32 AUD
Regular price
Unit price
per
Per 25
|
||||||
|
Hex Bore (A)
7.94
mm + 0.30 / - 0.00 (Equiv. 0.313 in.) |
OD (B)
25.40
mm +/- 0.080 (Equiv. 1 in.) |
Width (C)
21.34
mm (Equiv. 0.84 in.) |
Width (D)
11.94
mm |
|
||
|
Material: Stainless Steel 316 Balls and Races
Flange Dia. (E): 29.46 mm
Flange Width (F): 3.05 mm
Max Speed Unloaded: 1600 RPM
Category: Bearings - Conveyor - Single Row |
||||||
|
Part Number: CB-254-079H-21-6S (25 Pcs)
Conveyor Bearings - 7.94x25.4x21.34 mm / 11.94 mm Single Row - Stainless Steel 316 Balls and Races Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$1,549.32 AUD
Regular price
Unit price
per
Per 25
|
||||||
|
||||||
|
Hex Bore (A)
7.94
mm + 0.30 / - 0.00
(Equiv. 0.313 in.) |
OD (B)
25.40
mm +/- 0.080 (Equiv. 1 in.) |
Width (C)
21.34
mm (Equiv. 0.84 in.) |
Width (D)
11.94
mm |
Flange Dia. (E)
29.46
mm |
Flange Width (F)
3.05
mm |
|
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Max Speed Unloaded: 1600 RPM
Category: Bearings - Conveyor - Single Row |
||||||
|
Part Number: CB-254-079H-21-PS (10 Pcs)
Conveyor Bearings - 7.94x25.4x21.34 mm / 11.94 mm Single Row - Polypropylene Races with Stainless Steel 316 Balls Bearing Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 15, 2025 Regular price
$140.32 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Hex Bore (A)
7.94
mm + 0.30 / - 0.00 (Equiv. 0.313 in.) |
OD (B)
25.40
mm +/- 0.080 (Equiv. 1 in.) |
Width (C)
21.34
mm (Equiv. 0.84 in.) |
Width (D)
11.94
mm |
|
||
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Flange Dia. (E): 29.46 mm
Flange Width (F): 3.05 mm
Max Speed Unloaded: 1600 RPM
Category: Bearings - Conveyor - Single Row |
||||||
|
Part Number: CB-254-079H-21-PS (10 Pcs)
Conveyor Bearings - 7.94x25.4x21.34 mm / 11.94 mm Single Row - Polypropylene Races with Stainless Steel 316 Balls Bearing Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 15, 2025 Regular price
$140.32 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Hex Bore (A)
7.94
mm + 0.30 / - 0.00
(Equiv. 0.313 in.) |
OD (B)
25.40
mm +/- 0.080 (Equiv. 1 in.) |
Width (C)
21.34
mm (Equiv. 0.84 in.) |
Width (D)
11.94
mm |
Flange Dia. (E)
29.46
mm |
Flange Width (F)
3.05
mm |
|
|
Material: Stainless Steel 316 Balls and Races
Max Speed Unloaded: 1280 RPM
Category: Bearings - Conveyor - Double Row |
||||||
|
Part Number: CB-254-079H-21-6D (25 Pcs)
Conveyor Bearings - 7.94x25.4x21.34 mm / 11.94 mm Double Row - Stainless Steel 316 Balls and Races Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$2,620.50 AUD
Regular price
Unit price
per
Per 25
|
||||||
|
Hex Bore (A)
7.94
mm + 0.30 / - 0.00 (Equiv. 0.313 in.) |
OD (B)
25.40
mm +/- 0.080 (Equiv. 1 in.) |
Width (C)
21.34
mm (Equiv. 0.84 in.) |
Width (D)
11.94
mm |
|
||
|
Material: Stainless Steel 316 Balls and Races
Flange Dia. (E): 29.46 mm
Flange Width (F): 3.05 mm
Max Speed Unloaded: 1280 RPM
Category: Bearings - Conveyor - Double Row |
||||||
|
Part Number: CB-254-079H-21-6D (25 Pcs)
Conveyor Bearings - 7.94x25.4x21.34 mm / 11.94 mm Double Row - Stainless Steel 316 Balls and Races Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$2,620.50 AUD
Regular price
Unit price
per
Per 25
|
||||||
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
OD (B)
38.10
mm +/- 0.080 (Equiv. 1.5 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
15.24
mm |
Flange Dia. (E)
39.62
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Max Speed Unloaded: 1069 RPM
Category: Bearings - Conveyor - Single Row |
||||||
|
Part Number: CB-381-111H-18-PS (10 Pcs)
Conveyor Bearings - 11.11x38.1x17.78 mm / 15.24 mm Single Row - Polypropylene Races with Stainless Steel 316 Balls Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$138.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
OD (B)
38.10
mm +/- 0.080 (Equiv. 1.5 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
15.24
mm |
|
||
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Flange Dia. (E): 39.62 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 1069 RPM
Category: Bearings - Conveyor - Single Row |
||||||
|
Part Number: CB-381-111H-18-PS (10 Pcs)
Conveyor Bearings - 11.11x38.1x17.78 mm / 15.24 mm Single Row - Polypropylene Races with Stainless Steel 316 Balls Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$138.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
OD (B)
38.10
mm +/- 0.080 (Equiv. 1.5 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
39.62
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Max Speed Unloaded: 1069 RPM
Category: Bearings - Conveyor - Single Row |
||||||
|
Part Number: CB-381-111H-18L-PS
Conveyor Bearings - 11.11x38.1x17.78 mm / 23.62 mm Single Row - Polypropylene Races with Stainless Steel 316 Balls Bearing 1 Available Now | Further orders can be expected around Sat, Oct 11, 2025 Regular price
$9.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
OD (B)
38.10
mm +/- 0.080 (Equiv. 1.5 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Flange Dia. (E): 39.62 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 1069 RPM
Category: Bearings - Conveyor - Single Row |
||||||
|
Part Number: CB-381-111H-18L-PS
Conveyor Bearings - 11.11x38.1x17.78 mm / 23.62 mm Single Row - Polypropylene Races with Stainless Steel 316 Balls Bearing 1 Available Now | Further orders can be expected around Sat, Oct 11, 2025 Regular price
$9.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
OD (B)
38.10
mm +/- 0.080 (Equiv. 1.5 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
39.62
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Stainless Steel 316 Balls and Races
Max Speed Unloaded: 1069 RPM
Category: Bearings - Conveyor - Single Row |
||||||
|
Part Number: CB-381-111H-18-6S (25 Pcs)
Conveyor Bearings - 11.11x38.1x17.78 mm / 23.62 mm Single Row - Stainless Steel 316 Balls and Races Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$2,918.68 AUD
Regular price
Unit price
per
Per 25
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
OD (B)
38.10
mm +/- 0.080 (Equiv. 1.5 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Stainless Steel 316 Balls and Races
Flange Dia. (E): 39.62 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 1069 RPM
Category: Bearings - Conveyor - Single Row |
||||||
|
Part Number: CB-381-111H-18-6S (25 Pcs)
Conveyor Bearings - 11.11x38.1x17.78 mm / 23.62 mm Single Row - Stainless Steel 316 Balls and Races Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$2,918.68 AUD
Regular price
Unit price
per
Per 25
|
||||||
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
OD (B)
38.10
mm +/- 0.080 (Equiv. 1.5 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
39.62
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row |
||||||
|
Part Number: CB-381-111H-18-PD (10 Pcs)
Conveyor Bearings - 11.11x38.1x17.78 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$220.05 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
OD (B)
38.10
mm +/- 0.080 (Equiv. 1.5 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Flange Dia. (E): 39.62 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row |
||||||
|
Part Number: CB-381-111H-18-PD (10 Pcs)
Conveyor Bearings - 11.11x38.1x17.78 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$220.05 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
OD (B)
38.10
mm +/- 0.080 (Equiv. 1.5 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
39.62
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Stainless Steel 316 Balls and Races
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row |
||||||
|
Part Number: CB-381-111H-18-6D
Conveyor Bearings - 11.11x38.1x17.78 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$167.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
OD (B)
38.10
mm +/- 0.080 (Equiv. 1.5 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Stainless Steel 316 Balls and Races
Flange Dia. (E): 39.62 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row |
||||||
|
Part Number: CB-381-111H-18-6D
Conveyor Bearings - 11.11x38.1x17.78 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$167.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
OD (B)
40.64
mm +/- 0.080 (Equiv. 1.6 in.) |
Width (C)
27.94
mm (Equiv. 1.1 in.) |
Width (D)
15.24
mm |
Flange Dia. (E)
45.72
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Max Speed Unloaded: 1069 RPM
Category: Bearings - Conveyor - Single Row |
||||||
|
Part Number: CB-406-111H-28-PS
Conveyor Bearings - 11.11x40.64x27.94 mm / 15.24 mm Single Row - Polypropylene Races with Stainless Steel 316 Balls Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
OD (B)
40.64
mm +/- 0.080 (Equiv. 1.6 in.) |
Width (C)
27.94
mm (Equiv. 1.1 in.) |
Width (D)
15.24
mm |
|
||
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Flange Dia. (E): 45.72 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 1069 RPM
Category: Bearings - Conveyor - Single Row |
||||||
|
Part Number: CB-406-111H-28-PS
Conveyor Bearings - 11.11x40.64x27.94 mm / 15.24 mm Single Row - Polypropylene Races with Stainless Steel 316 Balls Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
OD (B)
40.64
mm +/- 0.080 (Equiv. 1.6 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
15.24
mm |
Flange Dia. (E)
45.72
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Max Speed Unloaded: 1069 RPM
Category: Bearings - Conveyor - Single Row |
||||||
|
Part Number: CB-406-111H-18-PS (10 Pcs)
Conveyor Bearings - 11.11x40.64x17.78 mm / 15.24 mm Single Row - Polypropylene Races with Stainless Steel 316 Balls Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$138.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
OD (B)
40.64
mm +/- 0.080 (Equiv. 1.6 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
15.24
mm |
|
||
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Flange Dia. (E): 45.72 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 1069 RPM
Category: Bearings - Conveyor - Single Row |
||||||
|
Part Number: CB-406-111H-18-PS (10 Pcs)
Conveyor Bearings - 11.11x40.64x17.78 mm / 15.24 mm Single Row - Polypropylene Races with Stainless Steel 316 Balls Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$138.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
OD (B)
40.64
mm +/- 0.080 (Equiv. 1.6 in.) |
Width (C)
27.94
mm (Equiv. 1.1 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
45.72
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Stainless Steel 316 Balls and Races
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row |
||||||
|
Part Number: CB-406-111H-28-6D
Conveyor Bearings - 11.11x40.64x27.94 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
OD (B)
40.64
mm +/- 0.080 (Equiv. 1.6 in.) |
Width (C)
27.94
mm (Equiv. 1.1 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Stainless Steel 316 Balls and Races
Flange Dia. (E): 45.72 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row |
||||||
|
Part Number: CB-406-111H-28-6D
Conveyor Bearings - 11.11x40.64x27.94 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
OD (B)
40.64
mm +/- 0.080 (Equiv. 1.6 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
45.72
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row |
||||||
|
Part Number: CB-406-111H-18-PD (10 Pcs)
Conveyor Bearings - 11.11x40.64x17.78 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$220.05 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
OD (B)
40.64
mm +/- 0.080 (Equiv. 1.6 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Flange Dia. (E): 45.72 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row |
||||||
|
Part Number: CB-406-111H-18-PD (10 Pcs)
Conveyor Bearings - 11.11x40.64x17.78 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$220.05 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
OD (B)
40.64
mm +/- 0.080 (Equiv. 1.6 in.) |
Width (C)
27.94
mm (Equiv. 1.1 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
45.72
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row |
||||||
|
Part Number: CB-406-111H-28-PD
Conveyor Bearings - 11.11x40.64x27.94 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
OD (B)
40.64
mm +/- 0.080 (Equiv. 1.6 in.) |
Width (C)
27.94
mm (Equiv. 1.1 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Flange Dia. (E): 45.72 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row |
||||||
|
Part Number: CB-406-111H-28-PD
Conveyor Bearings - 11.11x40.64x27.94 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
OD (B)
40.64
mm +/- 0.080 (Equiv. 1.6 in.) |
Width (C)
27.94
mm (Equiv. 1.1 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
45.72
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Stainless Steel 316 Balls and Races
Max Speed Unloaded: 1069 RPM
Category: Bearings - Conveyor - Single Row |
||||||
|
Part Number: CB-406-111H-28-6S
Conveyor Bearings - 11.11x40.64x27.94 mm / 23.62 mm Single Row - Stainless Steel 316 Balls and Races Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
OD (B)
40.64
mm +/- 0.080 (Equiv. 1.6 in.) |
Width (C)
27.94
mm (Equiv. 1.1 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Stainless Steel 316 Balls and Races
Flange Dia. (E): 45.72 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 1069 RPM
Category: Bearings - Conveyor - Single Row |
||||||
|
Part Number: CB-406-111H-28-6S
Conveyor Bearings - 11.11x40.64x27.94 mm / 23.62 mm Single Row - Stainless Steel 316 Balls and Races Bearing Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
OD (B)
40.64
mm +/- 0.080 (Equiv. 1.6 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
45.72
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Stainless Steel 316 Balls and Races
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row |
||||||
|
Part Number: CB-406-111H-18-6D
Conveyor Bearings - 11.11x40.64x17.78 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$174.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
OD (B)
40.64
mm +/- 0.080 (Equiv. 1.6 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Stainless Steel 316 Balls and Races
Flange Dia. (E): 45.72 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row |
||||||
|
Part Number: CB-406-111H-18-6D
Conveyor Bearings - 11.11x40.64x17.78 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$174.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
OD (B)
40.64
mm +/- 0.080 (Equiv. 1.6 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
45.72
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Stainless Steel 316 Balls and Races
Max Speed Unloaded: 1069 RPM
Category: Bearings - Conveyor - Single Row |
||||||
|
Part Number: CB-406-111H-18-6S
Conveyor Bearings - 11.11x40.64x17.78 mm / 23.62 mm Single Row - Stainless Steel 316 Balls and Races Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$144.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
OD (B)
40.64
mm +/- 0.080 (Equiv. 1.6 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Stainless Steel 316 Balls and Races
Flange Dia. (E): 45.72 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 1069 RPM
Category: Bearings - Conveyor - Single Row |
||||||
|
Part Number: CB-406-111H-18-6S
Conveyor Bearings - 11.11x40.64x17.78 mm / 23.62 mm Single Row - Stainless Steel 316 Balls and Races Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$144.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
OD (B)
45.21
mm +/- 0.080 (Equiv. 1.78 in.) |
Width (C)
27.94
mm (Equiv. 1.1 in.) |
Width (D)
15.24
mm |
Flange Dia. (E)
47.24
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Max Speed Unloaded: 1069 RPM
Category: Bearings - Conveyor - Single Row |
||||||
|
Part Number: CB-452-111H-28-PS (10 Pcs)
Conveyor Bearings - 11.11x45.21x27.94 mm / 15.24 mm Single Row - Polypropylene Races with Stainless Steel 316 Balls Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$138.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
OD (B)
45.21
mm +/- 0.080 (Equiv. 1.78 in.) |
Width (C)
27.94
mm (Equiv. 1.1 in.) |
Width (D)
15.24
mm |
|
||
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Flange Dia. (E): 47.24 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 1069 RPM
Category: Bearings - Conveyor - Single Row |
||||||
|
Part Number: CB-452-111H-28-PS (10 Pcs)
Conveyor Bearings - 11.11x45.21x27.94 mm / 15.24 mm Single Row - Polypropylene Races with Stainless Steel 316 Balls Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$138.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
OD (B)
45.21
mm +/- 0.080 (Equiv. 1.78 in.) |
Width (C)
27.94
mm (Equiv. 1.1 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
47.24
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row |
||||||
|
Part Number: CB-452-111H-28-PD (10 Pcs)
Conveyor Bearings - 11.11x45.21x27.94 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$230.41 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
OD (B)
45.21
mm +/- 0.080 (Equiv. 1.78 in.) |
Width (C)
27.94
mm (Equiv. 1.1 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Flange Dia. (E): 47.24 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row |
||||||
|
Part Number: CB-452-111H-28-PD (10 Pcs)
Conveyor Bearings - 11.11x45.21x27.94 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$230.41 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
OD (B)
45.21
mm +/- 0.080 (Equiv. 1.78 in.) |
Width (C)
27.94
mm (Equiv. 1.1 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
47.24
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Stainless Steel 316 Balls and Races
Max Speed Unloaded: 1069 RPM
Category: Bearings - Conveyor - Single Row |
||||||
|
Part Number: CB-452-111H-28-6S (25 Pcs)
Conveyor Bearings - 11.11x45.21x27.94 mm / 23.62 mm Single Row - Stainless Steel 316 Balls and Races Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$3,202.50 AUD
Regular price
Unit price
per
Per 25
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
OD (B)
45.21
mm +/- 0.080 (Equiv. 1.78 in.) |
Width (C)
27.94
mm (Equiv. 1.1 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Stainless Steel 316 Balls and Races
Flange Dia. (E): 47.24 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 1069 RPM
Category: Bearings - Conveyor - Single Row |
||||||
|
Part Number: CB-452-111H-28-6S (25 Pcs)
Conveyor Bearings - 11.11x45.21x27.94 mm / 23.62 mm Single Row - Stainless Steel 316 Balls and Races Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$3,202.50 AUD
Regular price
Unit price
per
Per 25
|
||||||
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
OD (B)
45.21
mm +/- 0.080 (Equiv. 1.78 in.) |
Width (C)
27.94
mm (Equiv. 1.1 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
47.24
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Stainless Steel 316 Balls and Races
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row |
||||||
|
Part Number: CB-452-111H-28-6D
Conveyor Bearings - 11.11x45.21x27.94 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$188.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
OD (B)
45.21
mm +/- 0.080 (Equiv. 1.78 in.) |
Width (C)
27.94
mm (Equiv. 1.1 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Stainless Steel 316 Balls and Races
Flange Dia. (E): 47.24 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row |
||||||
|
Part Number: CB-452-111H-28-6D
Conveyor Bearings - 11.11x45.21x27.94 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$188.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
OD (B)
47.50
mm +/- 0.080 (Equiv. 1.87 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
15.24
mm |
Flange Dia. (E)
50.80
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Max Speed Unloaded: 1069 RPM
Category: Bearings - Conveyor - Single Row |
||||||
|
Part Number: CB-475-111H-18-PS (10 Pcs)
Conveyor Bearings - 11.11x47.5x17.78 mm / 15.24 mm Single Row - Polypropylene Races with Stainless Steel 316 Balls Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$176.14 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
OD (B)
47.50
mm +/- 0.080 (Equiv. 1.87 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
15.24
mm |
|
||
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Flange Dia. (E): 50.80 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 1069 RPM
Category: Bearings - Conveyor - Single Row |
||||||
|
Part Number: CB-475-111H-18-PS (10 Pcs)
Conveyor Bearings - 11.11x47.5x17.78 mm / 15.24 mm Single Row - Polypropylene Races with Stainless Steel 316 Balls Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$176.14 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
OD (B)
47.50
mm +/- 0.080 (Equiv. 1.87 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
50.80
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Stainless Steel 316 Balls and Races
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row |
||||||
|
Part Number: CB-475-111H-18-6D
Conveyor Bearings - 11.11x47.5x17.78 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$194.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
OD (B)
47.50
mm +/- 0.080 (Equiv. 1.87 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Stainless Steel 316 Balls and Races
Flange Dia. (E): 50.80 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row |
||||||
|
Part Number: CB-475-111H-18-6D
Conveyor Bearings - 11.11x47.5x17.78 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$194.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
OD (B)
47.50
mm +/- 0.080 (Equiv. 1.87 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
50.80
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row |
||||||
|
Part Number: CB-475-111H-18-PD (10 Pcs)
Conveyor Bearings - 11.11x47.5x17.78 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$268.23 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
OD (B)
47.50
mm +/- 0.080 (Equiv. 1.87 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Flange Dia. (E): 50.80 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row |
||||||
|
Part Number: CB-475-111H-18-PD (10 Pcs)
Conveyor Bearings - 11.11x47.5x17.78 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 11, 2025 Regular price
$268.23 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
