Collection: Bearings - Conveyor - Double Row
Bearings -> Conveyor -> Double RowThere are 20 products in the sub-categories of Bearings - Conveyor - Double Row. Scroll down or follow the link to Bearings - Conveyor - Double Row in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.
Bearings - Conveyor - Double Row - Hex Bore Plastic
A selection of Hex Bore Plastic Double Row Conveyor Bearings. Plastic hex...
Bearings - Conveyor - Double Row - Hex Bore Stainless Steel
A selection of Hex Bore Stainless Steel Double Row Conveyor Bearings. 316...
Category Details
This category includes various types of conveyor bearings.
- This range includes plastic and stainless steel bearings for conveyor lines using hexagonal shafting.
- Both types are ideal for coping with regular washdown.
- Loads and Speeds are for reference only. Testing recommended.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Bearings - Conveyor - Double Row category on the Small Parts & Bearings online store.
| Hex Bore (A) | O.D. (B) | Width (C) | Width (D) | Flange Dia. (E) | Flange Width (F) |
Indicative Image |
|---|---|---|---|---|---|---|

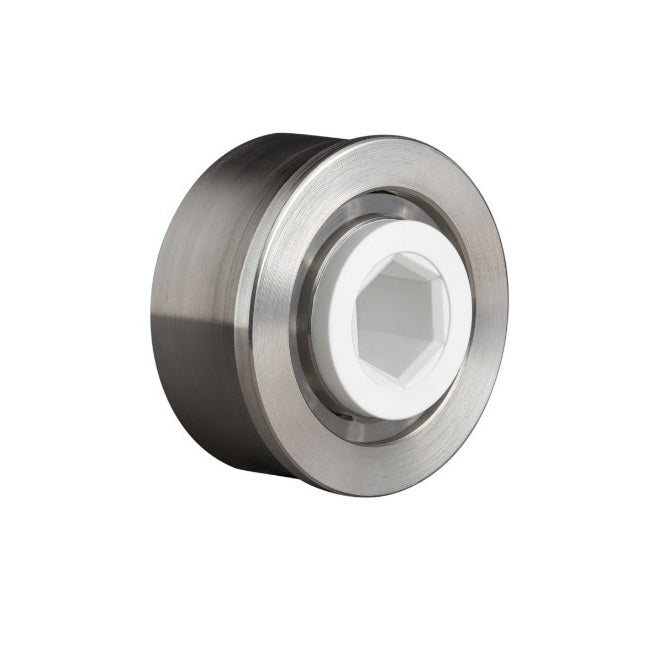

| Conveyor Bearings - 7.94x25.4x21.34 mm / 11.94 mm Double Row - Stainless Steel 316 Balls and Races Bearing | ||||||
|
Hex Bore (A)
7.94
mm + 0.30 / - 0.00
(Equiv. 0.313 in.) |
O.D. (B)
25.40
mm +/- 0.080 (Equiv. 1 in.) |
Width (C)
21.34
mm (Equiv. 0.84 in.) |
Width (D)
11.94
mm |
Flange Dia. (E)
29.46
mm |
Flange Width (F)
3.05
mm |
|
|
Material: Stainless Steel 316 Balls and Races
Max Speed Unloaded: 1280 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Stainless Steel |
||||||
|
Part Number: CB-254-079H-21-6D (PK-25)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$2,699.05 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 25 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Hex Bore (A) | O.D. (B) | Width (C) | Width (D) |
Indicative Image |
||
| Conveyor Bearings - 7.94x25.4x21.34 mm / 11.94 mm Double Row - Stainless Steel 316 Balls and Races Bearing | ||||||
|
Hex Bore (A)
7.94
mm + 0.30 / - 0.00 (Equiv. 0.313 in.) |
O.D. (B)
25.40
mm +/- 0.080 (Equiv. 1 in.) |
Width (C)
21.34
mm (Equiv. 0.84 in.) |
Width (D)
11.94
mm |
|
||
|
Material: Stainless Steel 316 Balls and Races
Flange Dia. (E): 29.46 mm
Flange Width (F): 3.05 mm
Max Speed Unloaded: 1280 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Stainless Steel |
||||||
|
Part Number: CB-254-079H-21-6D (PK-25)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$2,699.05 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 25 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||

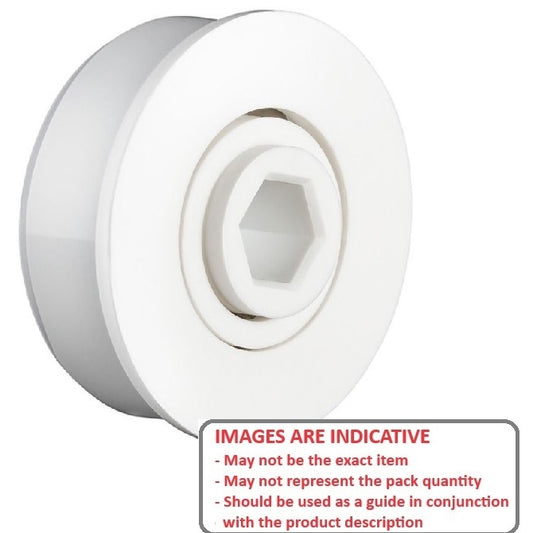

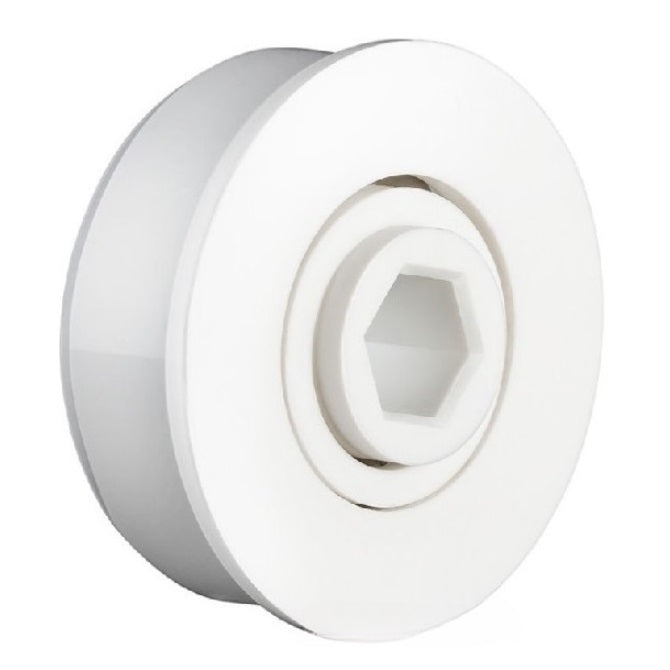

| Conveyor Bearings - 7.94x25.4x21.34 mm / 11.94 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing | ||||||
|
Hex Bore (A)
7.94
mm + 0.30 / - 0.00
(Equiv. 0.313 in.) |
O.D. (B)
25.40
mm +/- 0.080 (Equiv. 1 in.) |
Width (C)
21.34
mm (Equiv. 0.84 in.) |
Width (D)
11.94
mm |
Flange Dia. (E)
29.46
mm |
Flange Width (F)
3.05
mm |
|
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Max Speed Unloaded: 1280 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Plastic |
||||||
|
Part Number: CB-254-079H-21-PD (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$216.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Conveyor Bearings - 7.94x25.4x21.34 mm / 11.94 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing | ||||||
|
Hex Bore (A)
7.94
mm + 0.30 / - 0.00 (Equiv. 0.313 in.) |
O.D. (B)
25.40
mm +/- 0.080 (Equiv. 1 in.) |
Width (C)
21.34
mm (Equiv. 0.84 in.) |
Width (D)
11.94
mm |
|
||
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Flange Dia. (E): 29.46 mm
Flange Width (F): 3.05 mm
Max Speed Unloaded: 1280 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Plastic |
||||||
|
Part Number: CB-254-079H-21-PD (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$216.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Conveyor Bearings - 11.11x40.64x27.94 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
O.D. (B)
40.64
mm +/- 0.080 (Equiv. 1.6 in.) |
Width (C)
27.94
mm (Equiv. 1.1 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
45.72
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Stainless Steel 316 Balls and Races
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Stainless Steel |
||||||
|
Part Number: CB-406-111H-28-6D (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Conveyor Bearings - 11.11x40.64x27.94 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
O.D. (B)
40.64
mm +/- 0.080 (Equiv. 1.6 in.) |
Width (C)
27.94
mm (Equiv. 1.1 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Stainless Steel 316 Balls and Races
Flange Dia. (E): 45.72 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Stainless Steel |
||||||
|
Part Number: CB-406-111H-28-6D (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Tue, Mar 17, 2026 |
||||||
| Conveyor Bearings - 11.11x40.64x27.94 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
O.D. (B)
40.64
mm +/- 0.080 (Equiv. 1.6 in.) |
Width (C)
27.94
mm (Equiv. 1.1 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
45.72
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Plastic |
||||||
|
Part Number: CB-406-111H-28-PD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Conveyor Bearings - 11.11x40.64x27.94 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
O.D. (B)
40.64
mm +/- 0.080 (Equiv. 1.6 in.) |
Width (C)
27.94
mm (Equiv. 1.1 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Flange Dia. (E): 45.72 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Plastic |
||||||
|
Part Number: CB-406-111H-28-PD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Tue, Mar 17, 2026 |
||||||
| Conveyor Bearings - 11.11x38.1x17.78 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
O.D. (B)
38.10
mm +/- 0.080 (Equiv. 1.5 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
39.62
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Stainless Steel 316 Balls and Races
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Stainless Steel |
||||||
|
Part Number: CB-381-111H-18-6D (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$172.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Conveyor Bearings - 11.11x38.1x17.78 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
O.D. (B)
38.10
mm +/- 0.080 (Equiv. 1.5 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Stainless Steel 316 Balls and Races
Flange Dia. (E): 39.62 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Stainless Steel |
||||||
|
Part Number: CB-381-111H-18-6D (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$172.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Conveyor Bearings - 11.11x38.1x17.78 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
O.D. (B)
38.10
mm +/- 0.080 (Equiv. 1.5 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
39.62
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Plastic |
||||||
|
Part Number: CB-381-111H-18-PD (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$226.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Conveyor Bearings - 11.11x38.1x17.78 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
O.D. (B)
38.10
mm +/- 0.080 (Equiv. 1.5 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Flange Dia. (E): 39.62 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Plastic |
||||||
|
Part Number: CB-381-111H-18-PD (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$226.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Conveyor Bearings - 11.11x40.64x17.78 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
O.D. (B)
40.64
mm +/- 0.080 (Equiv. 1.6 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
45.72
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Plastic |
||||||
|
Part Number: CB-406-111H-18-PD (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$226.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Conveyor Bearings - 11.11x40.64x17.78 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
O.D. (B)
40.64
mm +/- 0.080 (Equiv. 1.6 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Flange Dia. (E): 45.72 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Plastic |
||||||
|
Part Number: CB-406-111H-18-PD (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$226.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Conveyor Bearings - 11.11x40.64x17.78 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
O.D. (B)
40.64
mm +/- 0.080 (Equiv. 1.6 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
45.72
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Stainless Steel 316 Balls and Races
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Stainless Steel |
||||||
|
Part Number: CB-406-111H-18-6D (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$179.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Conveyor Bearings - 11.11x40.64x17.78 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
O.D. (B)
40.64
mm +/- 0.080 (Equiv. 1.6 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Stainless Steel 316 Balls and Races
Flange Dia. (E): 45.72 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Stainless Steel |
||||||
|
Part Number: CB-406-111H-18-6D (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$179.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Conveyor Bearings - 11.11x45.21x27.94 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
O.D. (B)
45.21
mm +/- 0.080 (Equiv. 1.78 in.) |
Width (C)
27.94
mm (Equiv. 1.1 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
47.24
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Plastic |
||||||
|
Part Number: CB-452-111H-28-PD (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$237.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Conveyor Bearings - 11.11x45.21x27.94 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
O.D. (B)
45.21
mm +/- 0.080 (Equiv. 1.78 in.) |
Width (C)
27.94
mm (Equiv. 1.1 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Flange Dia. (E): 47.24 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Plastic |
||||||
|
Part Number: CB-452-111H-28-PD (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$237.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Conveyor Bearings - 11.11x45.21x27.94 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
O.D. (B)
45.21
mm +/- 0.080 (Equiv. 1.78 in.) |
Width (C)
27.94
mm (Equiv. 1.1 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
47.24
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Stainless Steel 316 Balls and Races
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Stainless Steel |
||||||
|
Part Number: CB-452-111H-28-6D (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$194.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Conveyor Bearings - 11.11x45.21x27.94 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
O.D. (B)
45.21
mm +/- 0.080 (Equiv. 1.78 in.) |
Width (C)
27.94
mm (Equiv. 1.1 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Stainless Steel 316 Balls and Races
Flange Dia. (E): 47.24 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Stainless Steel |
||||||
|
Part Number: CB-452-111H-28-6D (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$194.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Conveyor Bearings - 11.11x47.5x17.78 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
O.D. (B)
47.50
mm +/- 0.080 (Equiv. 1.87 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
50.80
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Plastic |
||||||
|
Part Number: CB-475-111H-18-PD (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$276.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Conveyor Bearings - 11.11x47.5x17.78 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
O.D. (B)
47.50
mm +/- 0.080 (Equiv. 1.87 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Flange Dia. (E): 50.80 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Plastic |
||||||
|
Part Number: CB-475-111H-18-PD (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$276.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Conveyor Bearings - 11.11x47.5x17.78 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
O.D. (B)
47.50
mm +/- 0.080 (Equiv. 1.87 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
50.80
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Stainless Steel 316 Balls and Races
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Stainless Steel |
||||||
|
Part Number: CB-475-111H-18-6D (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$200.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Conveyor Bearings - 11.11x47.5x17.78 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
O.D. (B)
47.50
mm +/- 0.080 (Equiv. 1.87 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Stainless Steel 316 Balls and Races
Flange Dia. (E): 50.80 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 855 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Stainless Steel |
||||||
|
Part Number: CB-475-111H-18-6D (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$200.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Conveyor Bearings - 11.11x52.22x17.78 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
O.D. (B)
52.22
mm +/- 0.080 (Equiv. 2.056 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
58.93
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Stainless Steel 316 Balls and Races
Max Speed Unloaded: 672 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Stainless Steel |
||||||
|
Part Number: CB-522-111H-18-6D (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$278.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Conveyor Bearings - 11.11x52.22x17.78 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
O.D. (B)
52.22
mm +/- 0.080 (Equiv. 2.056 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Stainless Steel 316 Balls and Races
Flange Dia. (E): 58.93 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 672 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Stainless Steel |
||||||
|
Part Number: CB-522-111H-18-6D (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$278.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Conveyor Bearings - 11.11x52.22x17.78 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
O.D. (B)
52.22
mm +/- 0.080 (Equiv. 2.056 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
58.93
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Max Speed Unloaded: 672 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Plastic |
||||||
|
Part Number: CB-522-111H-18-PD (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$293.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Conveyor Bearings - 11.11x52.22x17.78 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
O.D. (B)
52.22
mm +/- 0.080 (Equiv. 2.056 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Flange Dia. (E): 58.93 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 672 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Plastic |
||||||
|
Part Number: CB-522-111H-18-PD (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$293.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Conveyor Bearings - 11.11x57.4x17.78 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
O.D. (B)
57.40
mm +/- 0.080 (Equiv. 2.26 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
60.20
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Max Speed Unloaded: 672 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Plastic |
||||||
|
Part Number: CB-574-111H-18-PD (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$308.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Conveyor Bearings - 11.11x57.4x17.78 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
O.D. (B)
57.40
mm +/- 0.080 (Equiv. 2.26 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Flange Dia. (E): 60.20 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 672 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Plastic |
||||||
|
Part Number: CB-574-111H-18-PD (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$308.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Conveyor Bearings - 11.11x57.4x17.78 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00
(Equiv. 0.437 in.) |
O.D. (B)
57.40
mm +/- 0.080 (Equiv. 2.26 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
60.20
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Stainless Steel 316 Balls and Races
Max Speed Unloaded: 672 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Stainless Steel |
||||||
|
Part Number: CB-574-111H-18-6D (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$293.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Conveyor Bearings - 11.11x57.4x17.78 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing | ||||||
|
Hex Bore (A)
11.11
mm + 0.30 / - 0.00 (Equiv. 0.437 in.) |
O.D. (B)
57.40
mm +/- 0.080 (Equiv. 2.26 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Stainless Steel 316 Balls and Races
Flange Dia. (E): 60.20 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 672 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Stainless Steel |
||||||
|
Part Number: CB-574-111H-18-6D (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$293.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Conveyor Bearings - 17.45x52.22x17.78 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing | ||||||
|
Hex Bore (A)
17.45
mm + 0.30 / - 0.00
(Equiv. 0.687 in.) |
O.D. (B)
52.22
mm +/- 0.080 (Equiv. 2.056 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
58.93
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Max Speed Unloaded: 672 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Plastic |
||||||
|
Part Number: CB-522-175H-18-PD (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$323.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Conveyor Bearings - 17.45x52.22x17.78 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing | ||||||
|
Hex Bore (A)
17.45
mm + 0.30 / - 0.00 (Equiv. 0.687 in.) |
O.D. (B)
52.22
mm +/- 0.080 (Equiv. 2.056 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Flange Dia. (E): 58.93 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 672 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Plastic |
||||||
|
Part Number: CB-522-175H-18-PD (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$323.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Conveyor Bearings - 17.45x52.22x17.78 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing | ||||||
|
Hex Bore (A)
17.45
mm + 0.30 / - 0.00
(Equiv. 0.687 in.) |
O.D. (B)
52.22
mm +/- 0.080 (Equiv. 2.056 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
58.93
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Stainless Steel 316 Balls and Races
Max Speed Unloaded: 672 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Stainless Steel |
||||||
|
Part Number: CB-522-175H-18-6D (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$281.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Conveyor Bearings - 17.45x52.22x17.78 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing | ||||||
|
Hex Bore (A)
17.45
mm + 0.30 / - 0.00 (Equiv. 0.687 in.) |
O.D. (B)
52.22
mm +/- 0.080 (Equiv. 2.056 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Stainless Steel 316 Balls and Races
Flange Dia. (E): 58.93 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 672 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Stainless Steel |
||||||
|
Part Number: CB-522-175H-18-6D (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$281.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Conveyor Bearings - 17.45x57.4x17.78 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing | ||||||
|
Hex Bore (A)
17.45
mm + 0.30 / - 0.00
(Equiv. 0.687 in.) |
O.D. (B)
57.40
mm +/- 0.080 (Equiv. 2.26 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
60.20
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Stainless Steel 316 Balls and Races
Max Speed Unloaded: 672 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Stainless Steel |
||||||
|
Part Number: CB-574-175H-18-6D (PK-25)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$5,896.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 25 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Conveyor Bearings - 17.45x57.4x17.78 mm / 23.62 mm Double Row - Stainless Steel 316 Balls and Races Bearing | ||||||
|
Hex Bore (A)
17.45
mm + 0.30 / - 0.00 (Equiv. 0.687 in.) |
O.D. (B)
57.40
mm +/- 0.080 (Equiv. 2.26 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Stainless Steel 316 Balls and Races
Flange Dia. (E): 60.20 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 672 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Stainless Steel |
||||||
|
Part Number: CB-574-175H-18-6D (PK-25)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$5,896.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 25 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Conveyor Bearings - 17.45x57.4x17.78 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing | ||||||
|
Hex Bore (A)
17.45
mm + 0.30 / - 0.00
(Equiv. 0.687 in.) |
O.D. (B)
57.40
mm +/- 0.080 (Equiv. 2.26 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
Flange Dia. (E)
60.20
mm |
Flange Width (F)
2.54
mm |
|
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Max Speed Unloaded: 672 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Plastic |
||||||
|
Part Number: CB-574-175H-18-PD (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$353.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Conveyor Bearings - 17.45x57.4x17.78 mm / 23.62 mm Double Row - Polypropylene Races with Stainless Steel 316 Balls Bearing | ||||||
|
Hex Bore (A)
17.45
mm + 0.30 / - 0.00 (Equiv. 0.687 in.) |
O.D. (B)
57.40
mm +/- 0.080 (Equiv. 2.26 in.) |
Width (C)
17.78
mm (Equiv. 0.7 in.) |
Width (D)
23.62
mm |
|
||
|
Material: Polypropylene Races with Stainless Steel 316 Balls
Flange Dia. (E): 60.20 mm
Flange Width (F): 2.54 mm
Max Speed Unloaded: 672 RPM
Category: Bearings - Conveyor - Double Row - Hex Bore Plastic |
||||||
|
Part Number: CB-574-175H-18-PD (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Tue, Mar 17, 2026 Regular price
$353.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
