WRE-0508-RD-O

External Retaining Rings - 50.8x5.16x47.6 mm Round Wire - Carbon Spring Steel

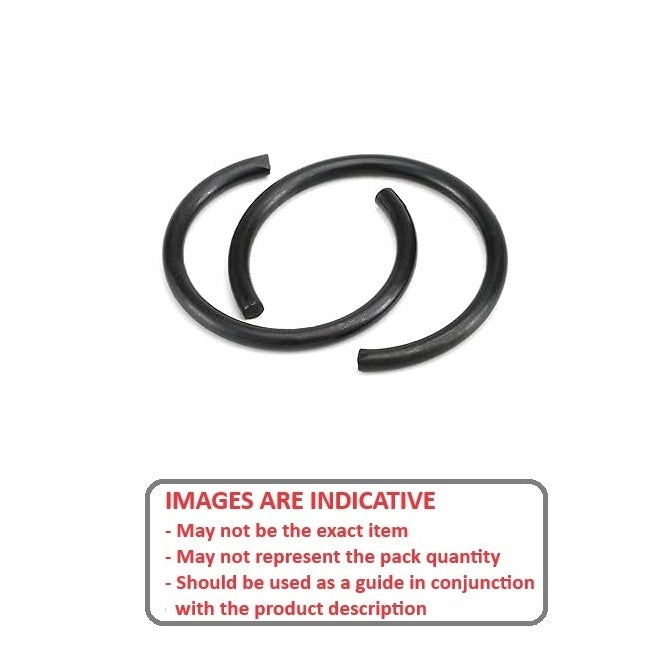

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • External Retaining Rings - 50.8x5.16x47.6 mm - Spring Steel
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Discontinued
This item is discontinued. Please contact us for a special quote if you require a large quantity.

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Round Wire

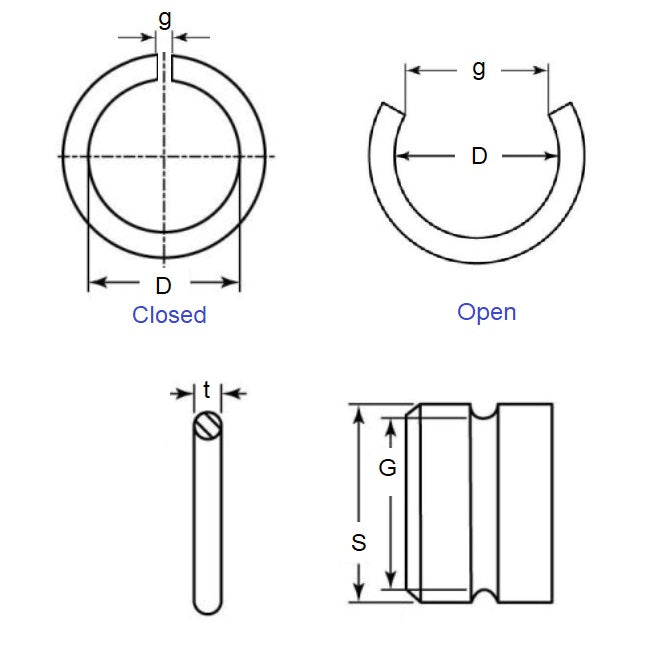

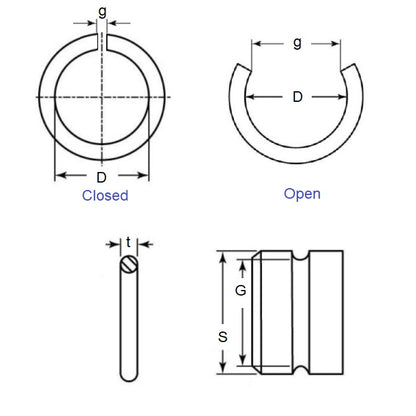

Product Details

Shaft Diameter (Ds): 50.80mm
(50.80mm is 2 in.)

Carbon Spring Steel
  • Clip Thickness (T): 5.16mm
    +/- 0.06
    (5.16mm is 0.203 in.)
  • Groove Dia. (Dg): 47.60mm
    + /- 0.10
    (47.60mm is 1.874 in.)
  • Approx. Loose Circlip ID (A): 47.12mm
  • Radial Wall (S) min/max: 47.60mm
  • Groove Width (W): 5.21mm
  • Free Outside Dia (Dr): 57.44
  • Section Profile: Round Section
  • Info: Radial Assembly - Open Gap

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Eaton 200-460
  • Arcon XRO-460
  • NoCor XRO-460
  • 200460
  • XRO460
  • WRE0508SRO

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
