W0220-T-029-035-W3-C-ECO (PK-5)

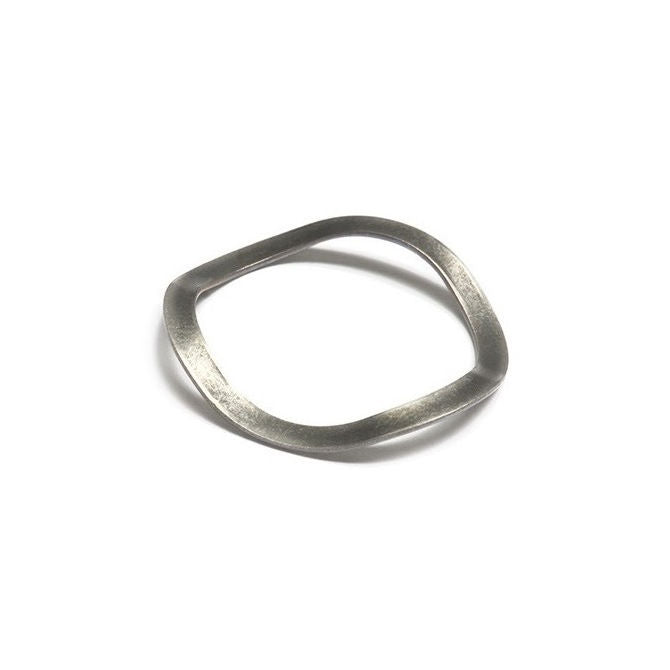

Spring Washers - 22x29x3.5 mm Wave - Carbon Spring Steel Self Finish Washer
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleAssortment Kits
Screws
Order 50 or more packs of 5 (250 pcs)
for $3.47 AUD per 5 pack
Couldn't load pickup availability
22x29x3.5 mm Spring Washers - Carbon Spring Steel Self Finish - Sold per pack of 5:
Base Category: Washers - Spring
Top Level Category: Washers - Spring - Wave - Carbon Steel
Product Details

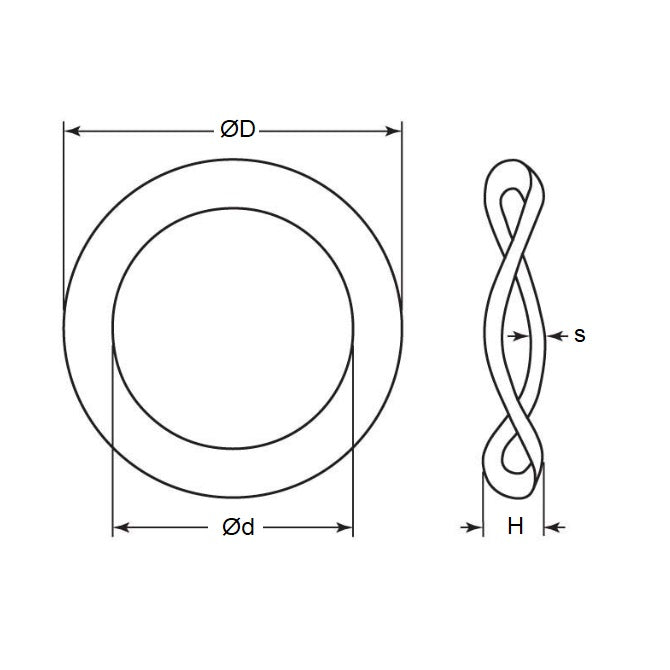

Nominal Inside Diameter (d): 22.00mm+ 0.1 / + 1.2
(22.00mm is 0.866 in.)
Carbon Spring Steel Self Finish
- Nominal Inside Diameter (d): 22.00mm
+ 0.1 / + 1.2
(22.00mm is 0.866 in.)
- Nominal Outside Diameter (D): 29.00mm
- 0.1 / - 1.0
(29.00mm is 1.142 in.)
- Nom. Height (H): 3.50mm
(3.50mm is 0.138 in.)
- Thickness (s): 0.30mm
- Info: Suits OD of 639, 6200, and 6903 Bearings
- Type: 3 Wave
- Nominal Screw Size: M22
Brand: MBA
Country of Origin: TW
