W0120-FP-020-0100-CL (Each)

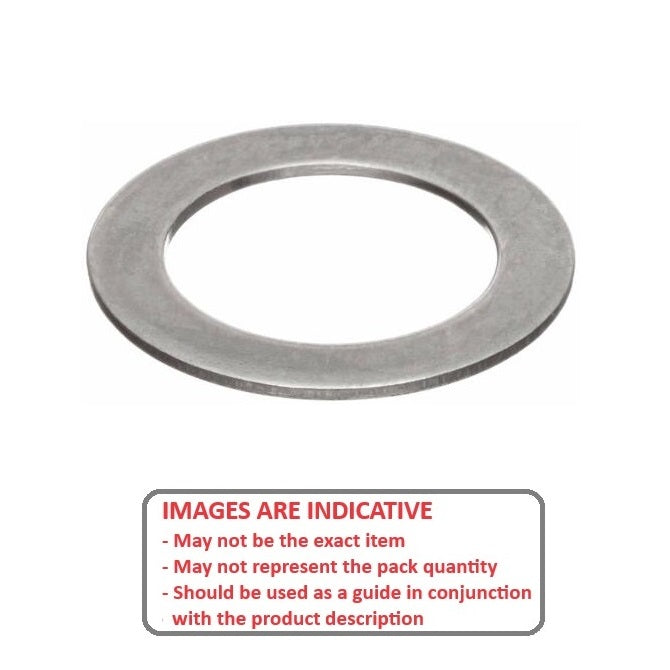

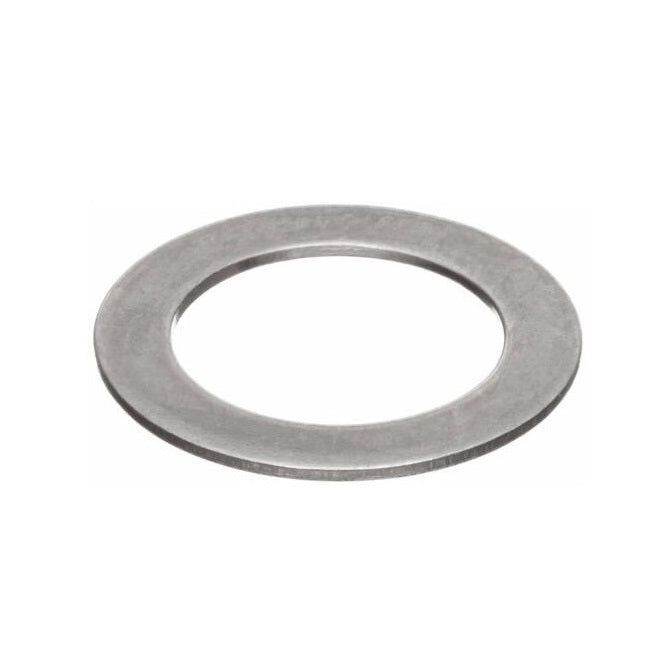

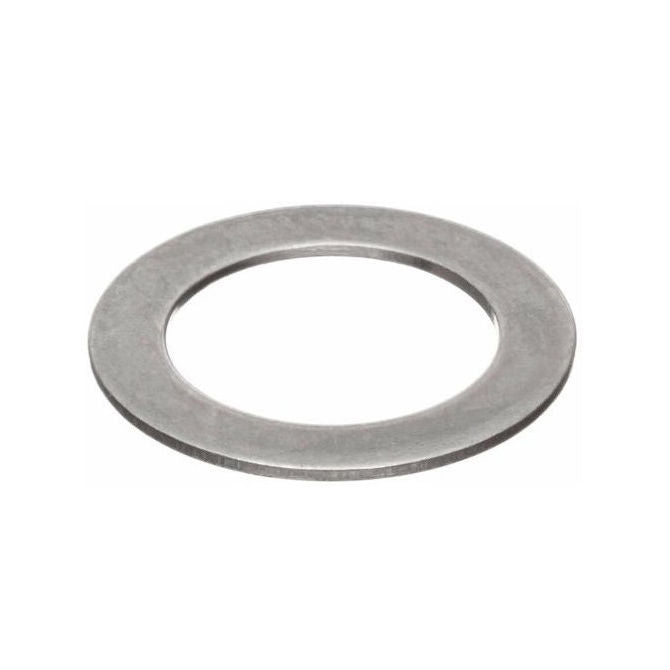

Flat Washers - 12x20x1 mm Precision Shim - Carbon Spring Steel Self Finish Washer
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Precision Shim Washer PDF Catalogue
Washers and Spacers PDF Catalogue
Screws
Order 50 or more
for $2.57 AUD Each
12x20x1 mm Flat Washers - Carbon Spring Steel Self Finish - Sold per Each:
Base Category: Washers - Flat
Top Level Category: Washers - Flat - Precision Shim - Carbon Spring Steel
Product Details

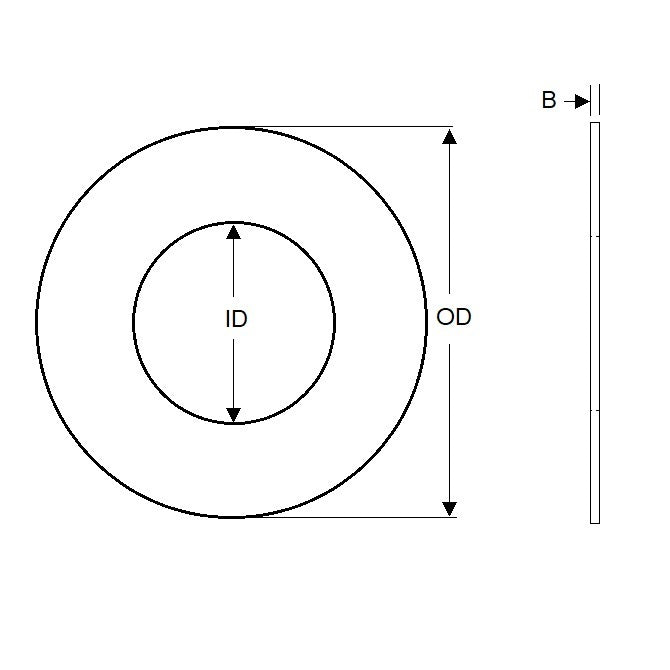

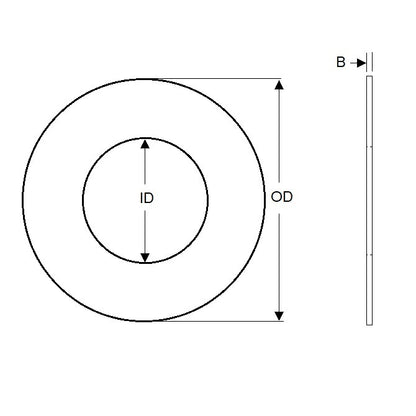

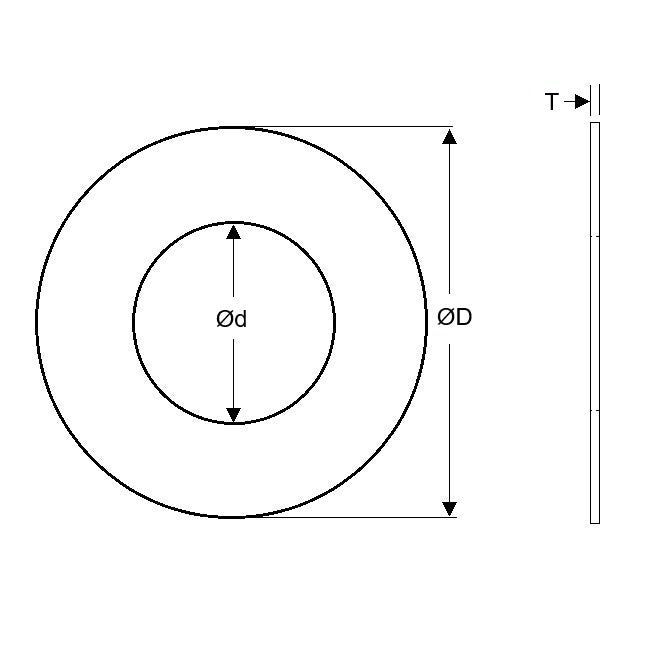

Nominal Inside Diameter (d): 12.000mm+ 0.300 / - 0.000
(12.000mm is 0.472 in.)
Carbon Spring Steel Self Finish
- Nominal Inside Diameter (d): 12.000mm
+ 0.300 / - 0.000
(12.000mm is 0.472 in.)
- Nominal Outside Diameter (D): 20.000mm
+ 0.000 / - 0.300
(20.000mm is 0.787 in.)
- Thickness (T): 1.000mm
+ 0.030 / - 0.030
(1.000mm is 0.039 in.)
- Other: Rockwell B 80 Min
- Grade: Precision
- Other: DIN988
- Min. Actual ID (Ref): 12.05mm
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- Misumi® PCIMR12-20-1.0
- PCIMR122010
- A7C8MC1220010
- W0120FP020010C
- W0120FP020010CL
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0120FP0200100CL, W0120FP020
