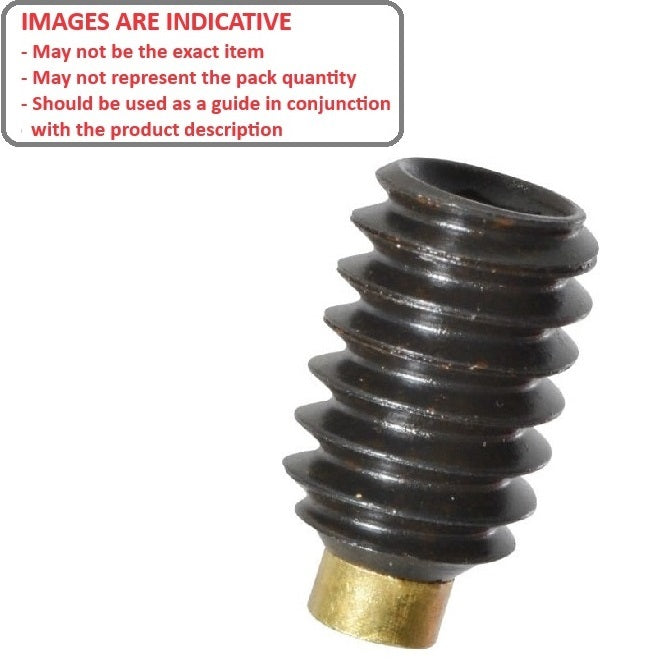

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

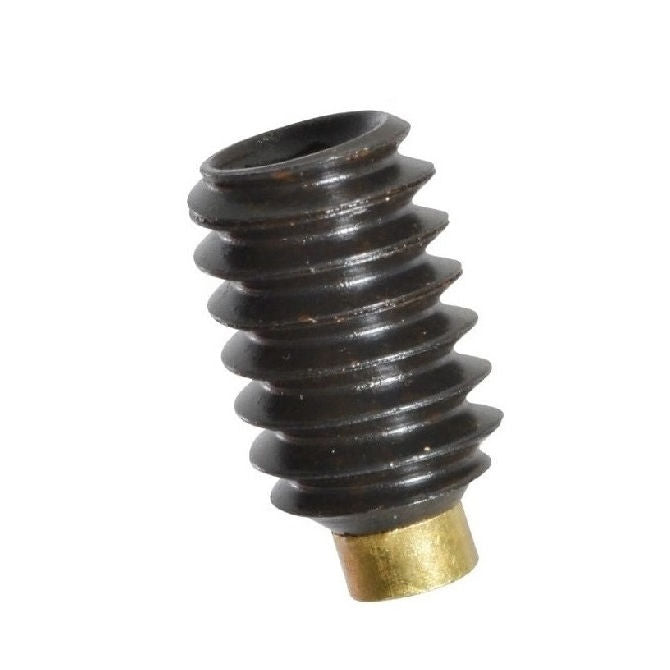

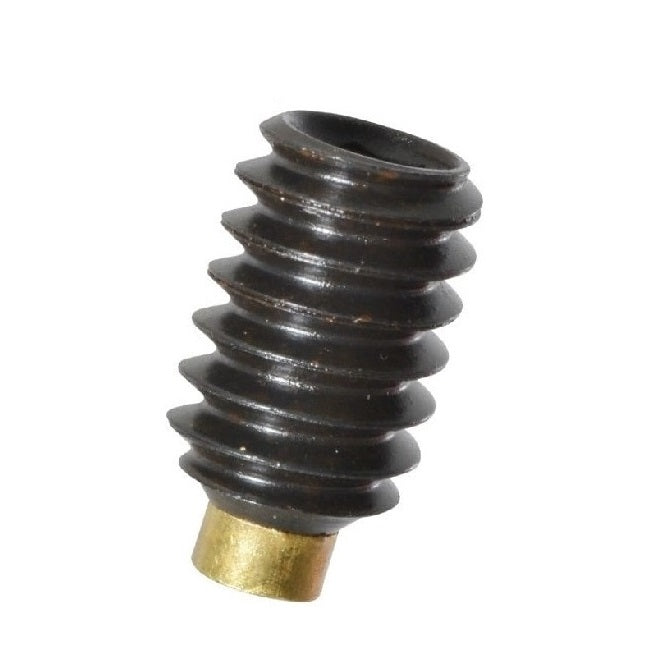

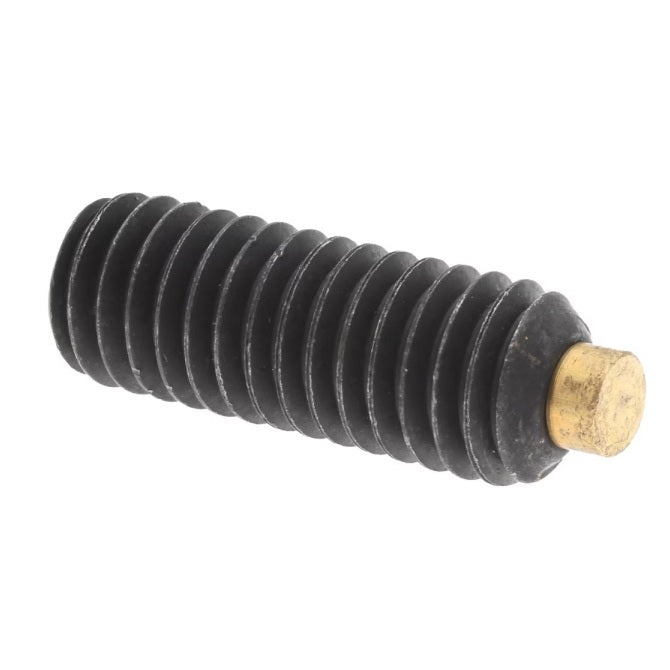

Brass Tipped Socket Set Screws - M4x0.7 x 20 mm Brass Tipped
SS040M-0200-AS-BT

MBA

Additional resources:
Socket Set Screws Master PDF
Price:
$9.05 AUD
$9.05 AUD
Each
Out Of Stock
Order 50 or more for $8.15 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Feb 16, 2025

Base Category: Socket Set Screws - Brass Tipped

Top Level Category: Socket Set Screws - Brass Tipped - Alloy Steel

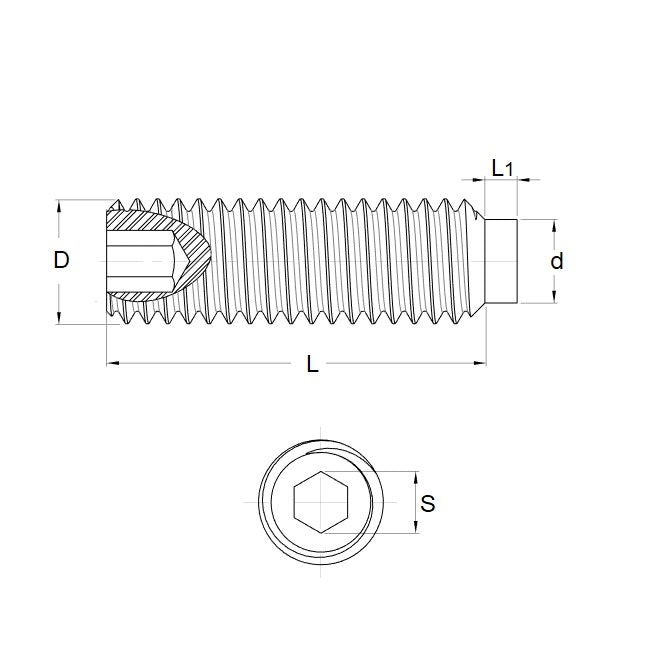

Product Details:

Thread Size: M4x0.7
Carbon Steel
  • Thread Length (L): 20.0mm
  • Type: Brass Tipped
  • Overall Length (L + L1): 20.5mm
  • Tip Diameter (d): 2.5mm
  • Tip Length (L1): 0.5
  • Hex Key Size: 2.00 mm
  • Pitch: 0.700mm
  • Threads Per Inch: 36.29TPI
  • Finish: Black Oxide

Brand: MBA
Country of Origin: DE

Alternatives: GN.13806, SBCP4-

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
