ID-P020S-30-011-040BB-F-A-C (Each)

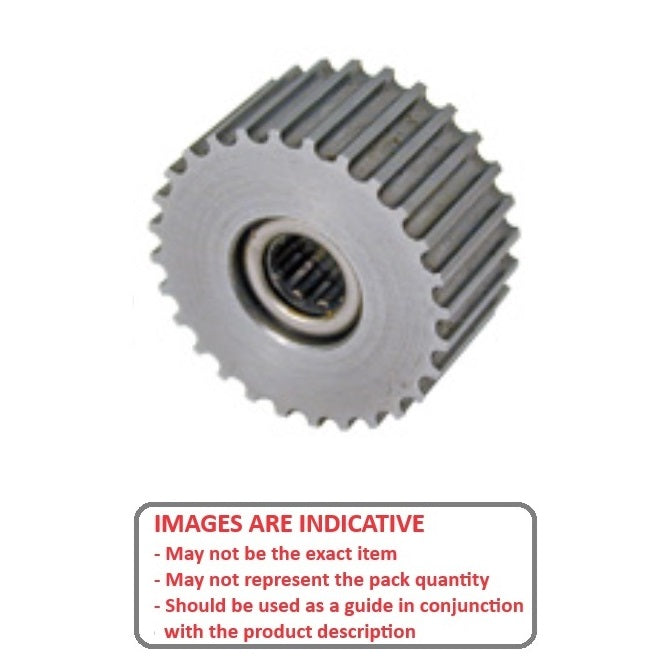

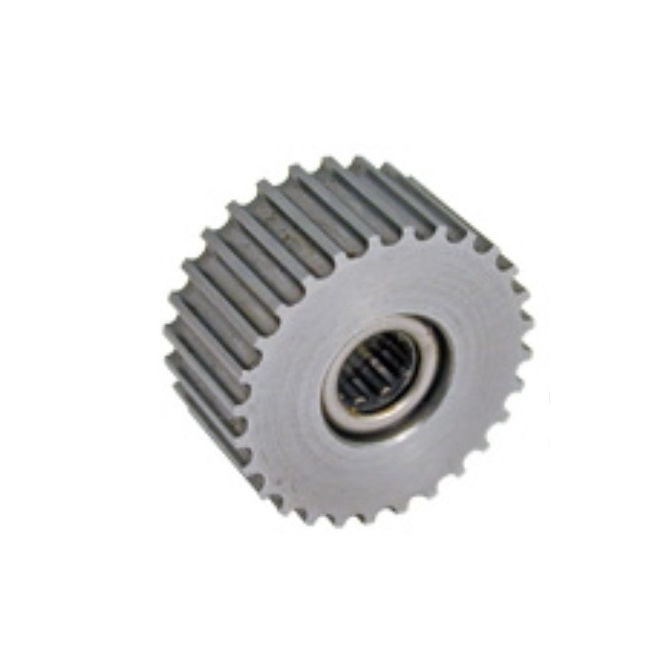

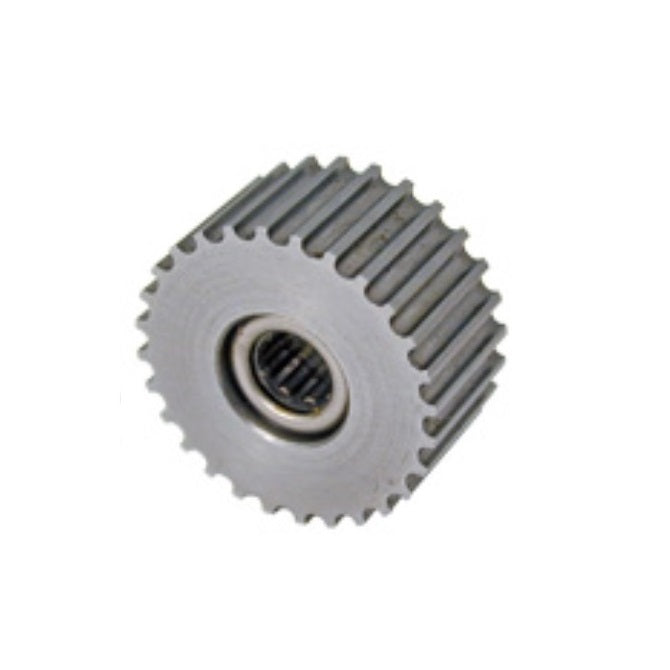

Timing Idler Pulleys - Belt Type S2M 18.59x4 mm - Aluminium Alloy Clear Anodised Pulley
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more
for $62.79 AUD Each
Belt Type S2M 18.59x4 mm Timing Idler Pulleys - Aluminium Alloy Clear Anodised - Sold per Each:
Base Category: Pulleys - Timing Idler
Top Level Category: Pulleys - Timing Idler

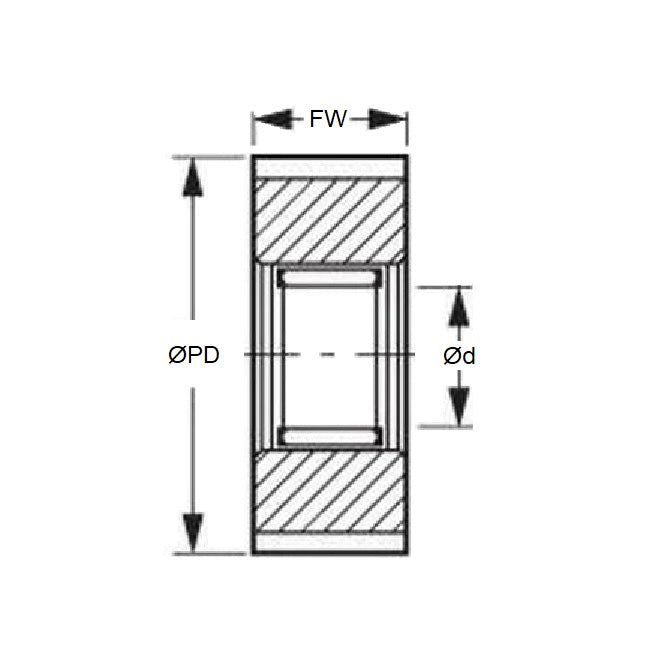

Product Details
Belt Type: S2MAluminium Alloy Clear Anodised
- Belt Type: S2M
- O.D.: 18.590mm
(18.590mm is 0.732 in.)
- Bore (B): 4.000mm
(4.000mm is 0.157 in.)
- Face Width (F): 11.00mm
- Number of Teeth: 30
- Bearing Type: Ball Bearing - Both Sides
- Style: Flanged
- Flange Diameter: 22.00
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- Misumi® AHTFW30-S2M100-4
- AHTFW30S2M1004
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
IDP020S30011040BBFAC, IDP020S30
