REM-120F-L-S4 (Each)

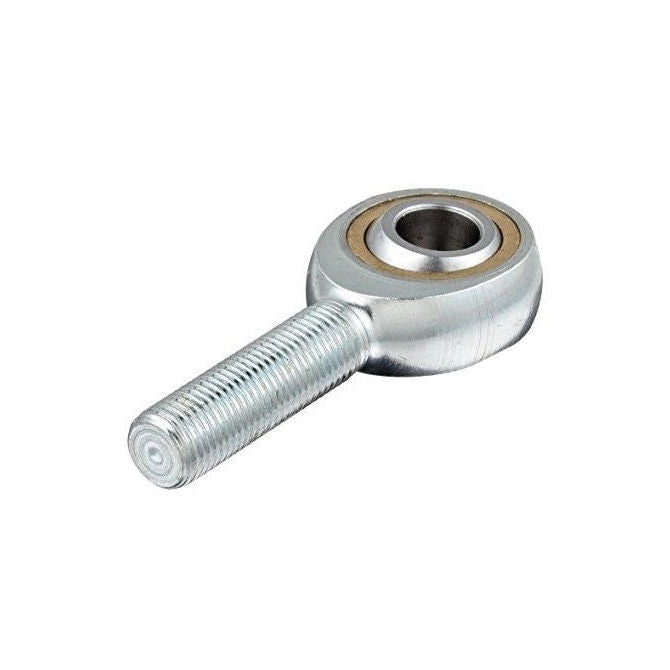

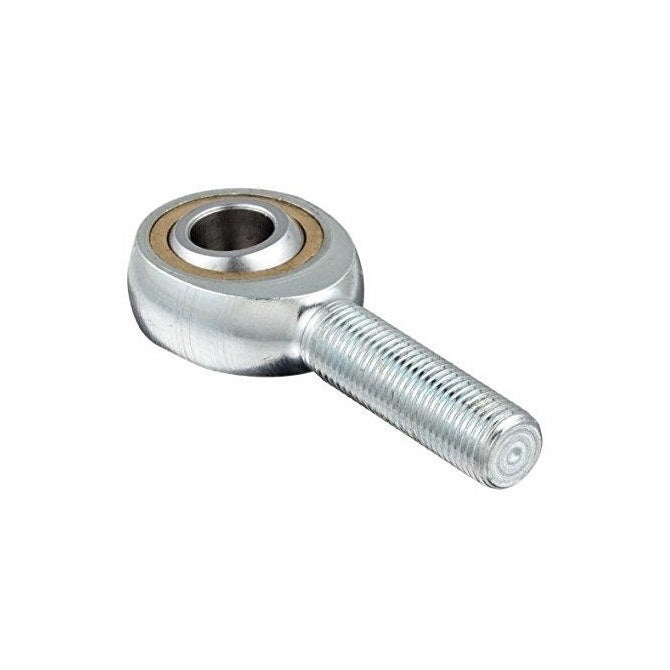

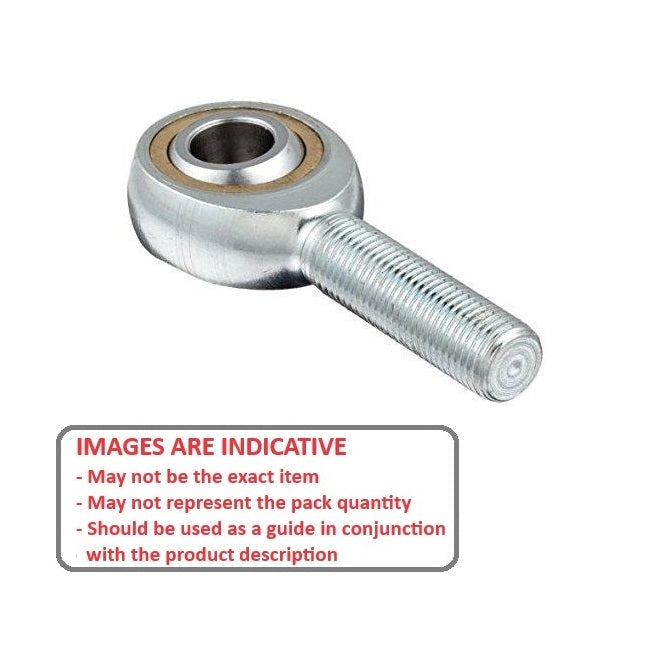

Male Rod Ends - 12x71 mm - M12x1.25 Left - Stainless Steel 304 Rod End
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more
for $22.79 AUD Each
12x71 mm - M12x1.25 Left Male Rod Ends - Stainless Steel 304 - Sold per Each:
Base Category: Rod Ends - Male
Top Level Category: Rod Ends - Male - Stainless - 304

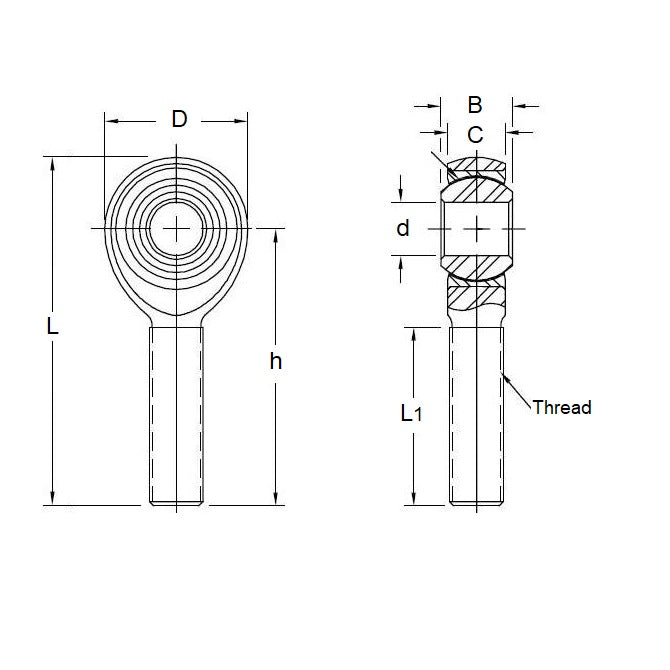

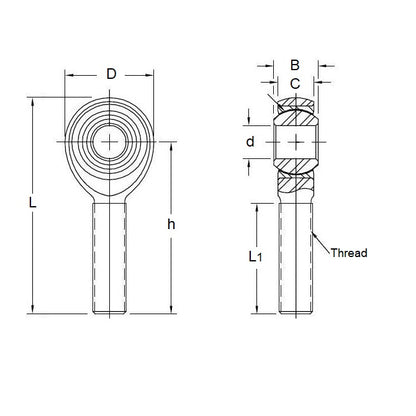

Product Details
Eye Size (d1): 12.00mm(12.00mm is 0.472 in.)
Stainless Steel 304
- Eye Size (d1): 12.00mm
(12.00mm is 0.472 in.)
- Overall Length (L): 71.00mm
(71.00mm is 2.795 in.)
- Thread Size: M12x1.25 Left
- Thread Length (l2): 35.00mm
- Head Width (W): 12.00mm
- Eye Width (W1): 16.00mm
- Head Diameter (D): 32.00mm
- Centre Height (l1): 56.00mm
- Grease Nipple: No
Brand: MBA
Country of Origin: TW
Product Compliance and Data
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
REM120FLS4, REM120F
