SC050M-020-C-SK-TC2 (Each)

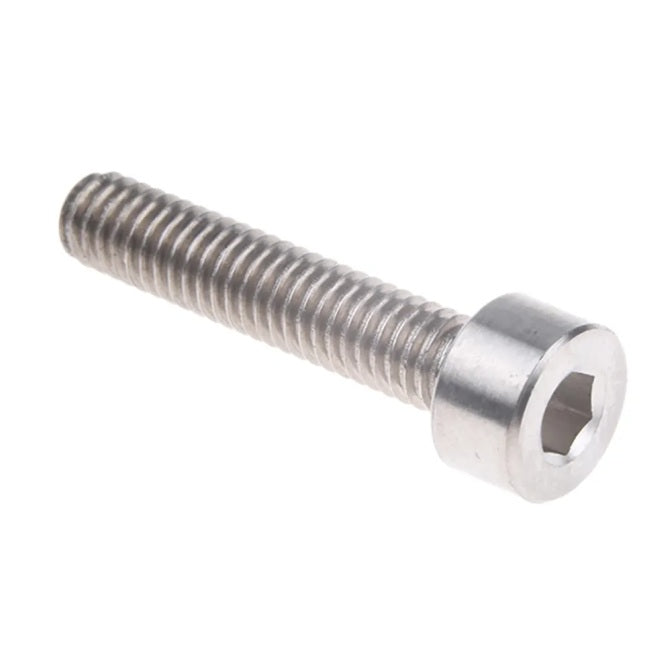

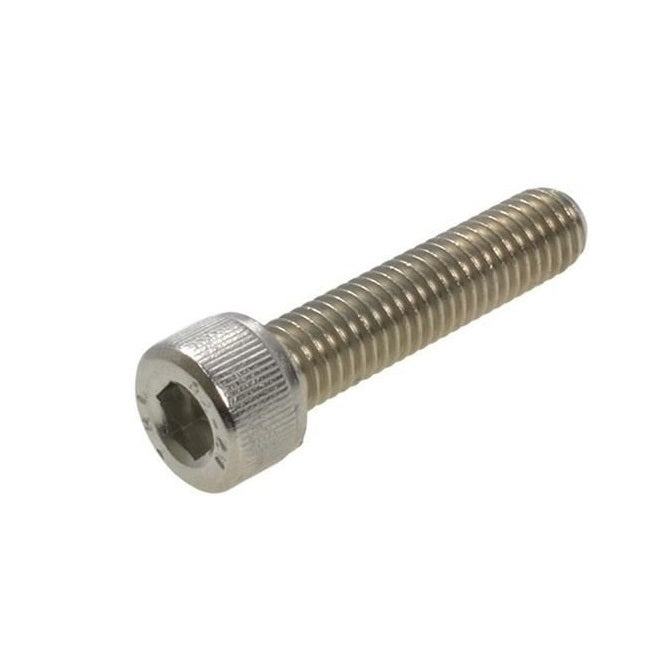

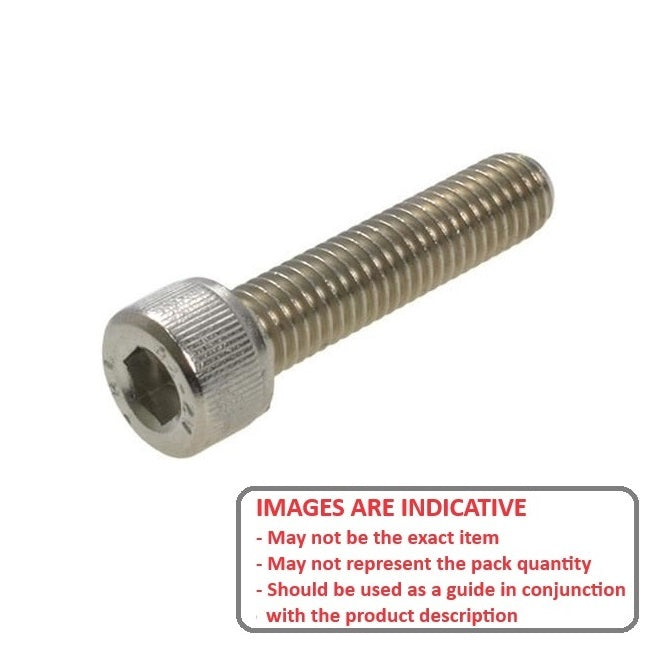

Socket Cap Screws - M5 - 5x0.8mm - 20 mm - Titanium CP Grade 2 Screw
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:PDF Screws Catalogue
Washers
Nuts
Order 50 or more
for $20.17 AUD Each
M5 (5x0.8mm) 20 mm - Titanium CP Grade 2 Socket Cap Screws - Titanium - CP2 Commercially Pure - Sold per Each:
Base Category: Screws - Socket Cap
Top Level Category: Screws - Socket Cap - Titanium - CP Grade 2 DIN912
Product Details

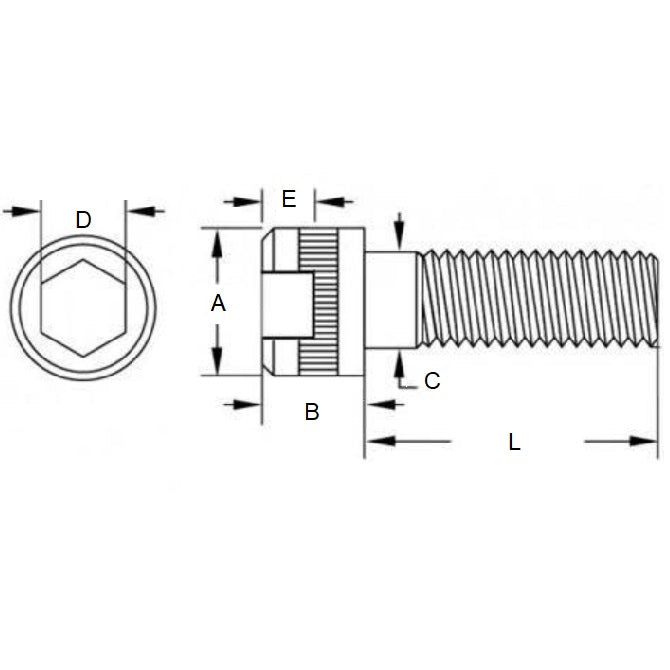

Thread Size (C): M5 (5x0.8mm)Titanium - CP2 Commercially Pure
- Thread Size (C): M5 (5x0.8mm)
- Thread Length (L): 20mm
(20mm is 0.787 in.)
- Material: Titanium CP Grade 2
- Head Length (B Max.): 5.0mm
- Head Diameter (A Max.): 8.5mm
- Drive Depth (E): 2.50mm
- Shank Diameter (C): 4.82 - 5.00mm
- Hex Key (D): 4.00mm
- Pitch: 0.800mm
- Threads Per Inch: 31.75TPI
- Min thread Length: 20mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 95735A978
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SC050M020CSKTC2, SC050M020C
