SC520M-090-C-SK-BO (Each)
Socket Cap Screws - M52 - 52x5mm - 90 mm - Black Oxide Carbon Steel 12.9 Alloy Steel Screw
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:PDF Screws Catalogue
Washers
Nuts
Order 50 or more
for $184.63 AUD Each
M52 (52x5mm) 90 mm - Black Oxide Carbon Steel 12.9 Socket Cap Screws - High Tensile Steel Black Oxide - Sold per Each:
Base Category: Screws - Socket Cap
Top Level Category: Screws - Socket Cap - Alloy Steel - Black Oxide
Product Details

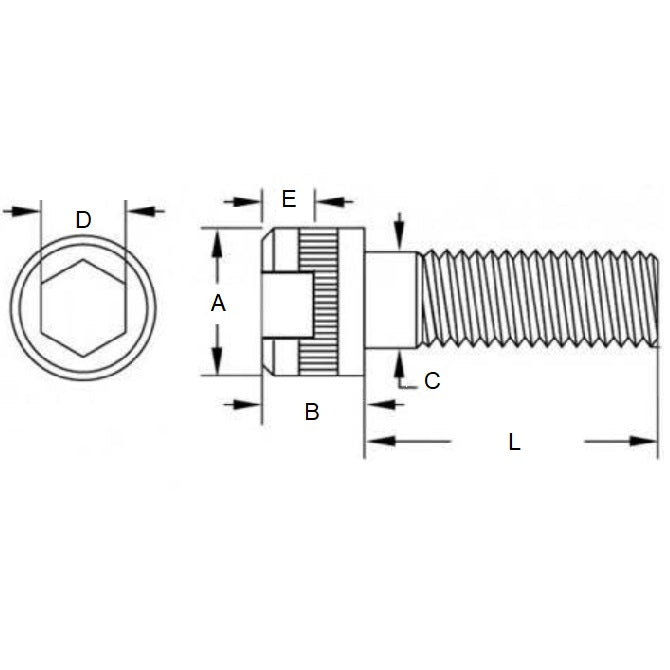

Thread Size (C): M52 (52x5mm)High Tensile Steel Black Oxide
- Thread Size (C): M52 (52x5mm)
- Thread Length (L): 90mm
(90mm is 3.543 in.)
- Material: Black Oxide Carbon Steel 12.9
- Head Length (B Max.): 52mm
- Head Diameter (A Max.): 80mm
- Shank Diameter (C): 51.00 - 52.00mm
- Pitch: 5.00mm
- Threads Per Inch: 5.080TPI
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- Misumi® CSH-ST-M52-90
- CSHSTM5290
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SC520M090CSKBO, SC520M090C
