SS040M-0058-S4-NT

Nylon Tipped Socket Set Screws - M4 - 4x0.7mm - 5.8 mm 304 Stainless Steel - Stainless Steel 304 Similar to A2, 18-8 HRB80 Screw

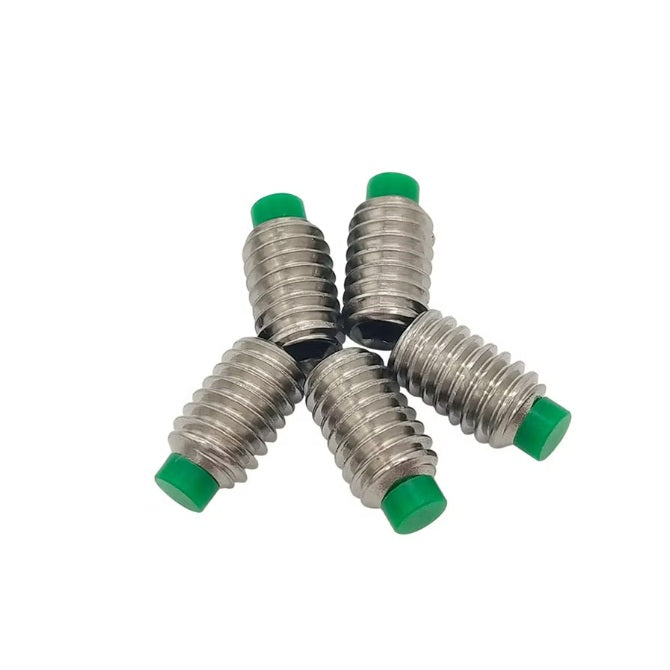

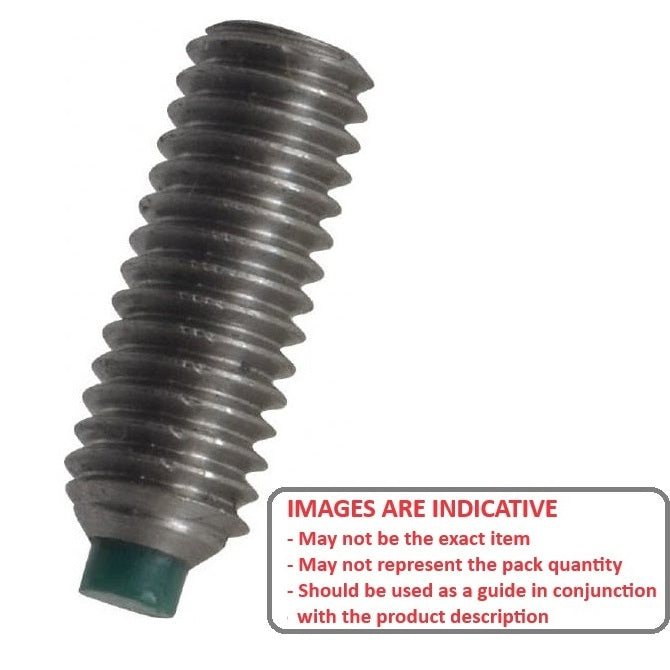

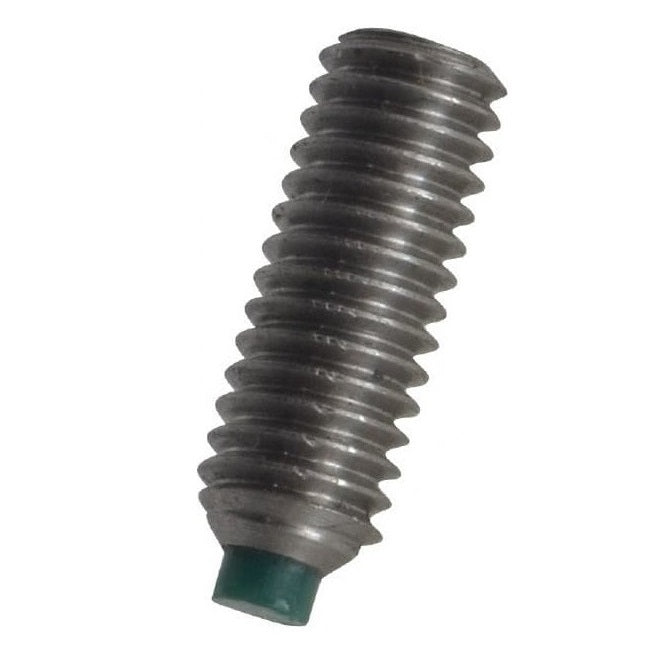

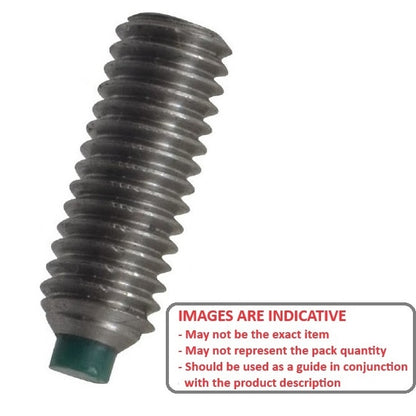

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Nylon Tipped Socket Set Screws - M4 - 4x0.7mm - 5.8 mm 304 Stainless Steel - Stainless Steel 304 Similar to A2, 18-8 HRB80
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Socket Set Screws Master PDF
Price:
$9.86 AUD
$9.86 AUD
Each
Backorder
Order 50 or more for $8.87 AUD Each
More stock due Oct 22, 2025: Qty 8 Backorder now! If you wish to order more than 8, delivery is expected before Nov 12, 2025

Base Category: Socket Set Screws - Nylon Tipped

Top Level Category: Socket Set Screws - Nylon Tipped - 304 Stainless Steel

Product Details

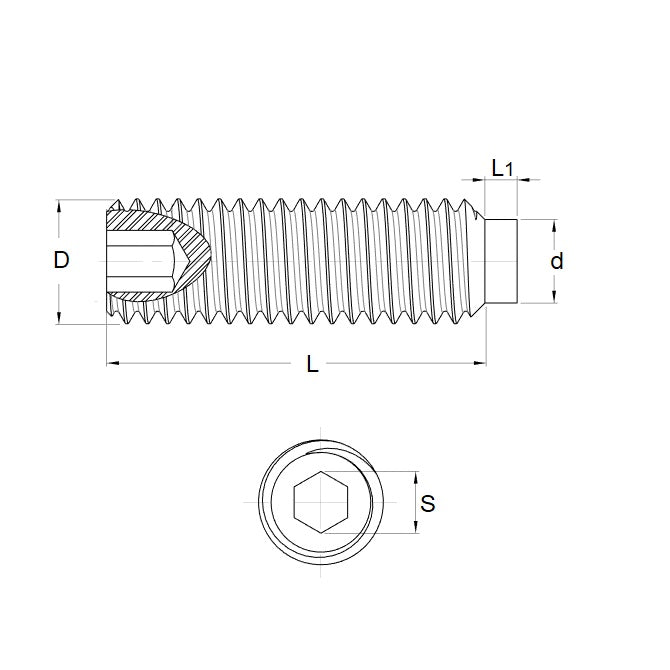

Thread Size: M4 (4x0.7mm)

Stainless Steel 304 (Similar to A2, 18-8) HRB80
  • Thread Length (L): 5.8mm
    (5.8mm is 0.228 in.)
  • Type: Nylon Tipped
  • Overall Length (L + L1): 7.0mm
  • Tip Diameter (d): 2.4mm
  • Tip Length (L1): 1.2
  • Hex Key Size: 2.00
  • Pitch: 0.700mm
  • Threads Per Inch: 36.29TPI
  • Drive Type: Socket

Brand: MBA
Country of Origin: GB

Product Compliance and Data

Similar to

  • A9X93MSO040070

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
