SC025M-020-C-SK-S6L (Each)
Socket Cap Screws - M2.5 - 2.5x0.45mm - 20 mm - 316L Stainless Screw
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesalePDF Screws Catalogue
Washers
Nuts
Order 50 or more
for $1.19 AUD Each
M2.5 (2.5x0.45mm) 20 mm - 316L Stainless Socket Cap Screws - Stainless Steel 316L - Sold per Each:
Base Category: Screws - Socket Cap
Top Level Category: Screws - Socket Cap - Stainless - 316
Product Details

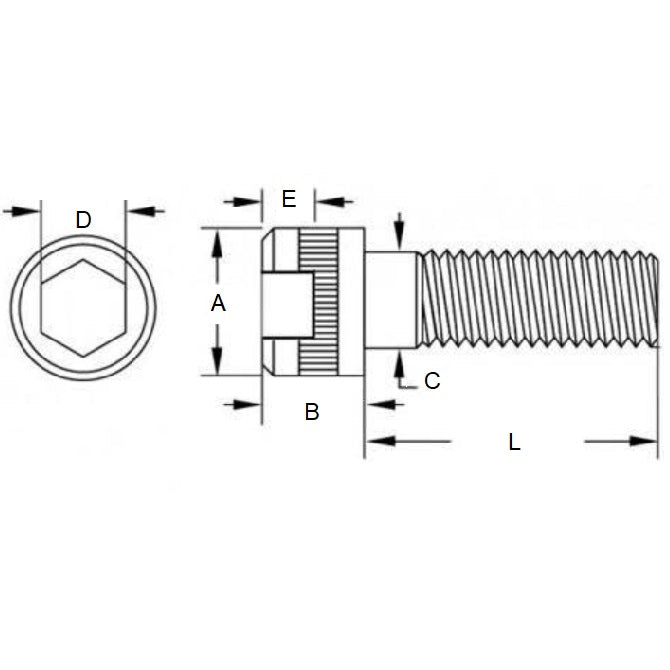

Thread Size (C): M2.5 (2.5x0.45mm)Stainless Steel 316L
- Thread Size (C): M2.5 (2.5x0.45mm)
- Thread Length (L): 20mm
(20mm is 0.787 in.)
- Material: 316L Stainless
- Head Length (B Max.): 2.500mm
- Head Diameter (A Max.): 4.500mm
- Drive Depth (E): 1.100mm
- Shank Diameter (C): 2.36 - 2.50mm
- Hex Key (D): 2.00mm
- Pitch: 0.45mm
- Threads Per Inch: 56.440TPI
- Min thread Length: Fully Threadedmm
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- SC025M020CSK6
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SC025M020CSKS6L, SC025M020C
