MLM-160M-150-S4-ECO (Each)
Levelling Studded Mounts - M16 - 16x2mm - 75x32 mm Economy - Stainless Steel 304 Similar to A2, 18-8 HRB80 Mount
ECO
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more
for $14.11 AUD Each

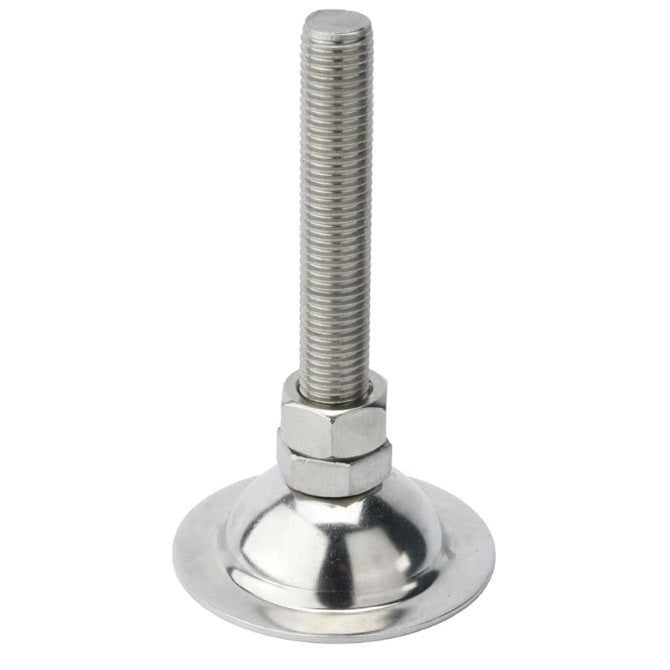

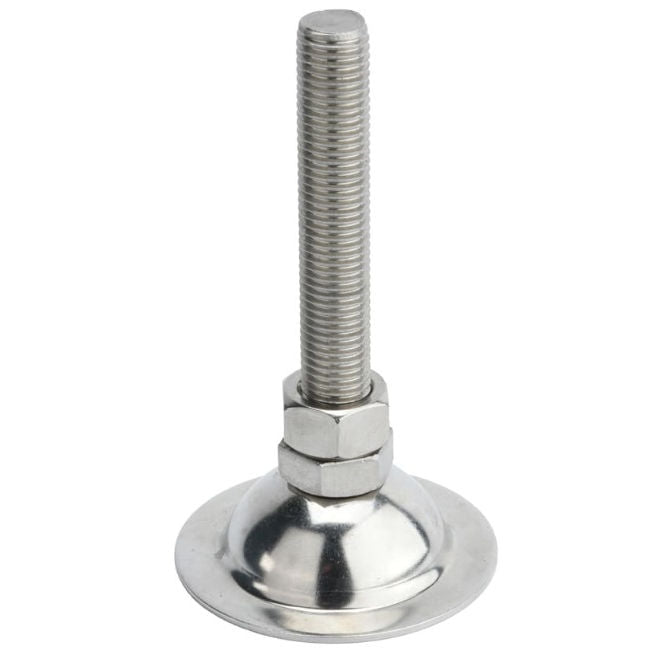

M16 (16x2mm) 75x32 mm Levelling Studded Mounts - Stainless Steel 304 (Similar to A2, 18-8) HRB80 - Sold per Each:
Base Category: Mounts - Levelling Studded
Top Level Category: Mounts - Levelling Studded - Economy - Plain Base
Product Details
Thread Size (A): M16 (16x2mm)Stainless Steel 304 (Similar to A2, 18-8) HRB80
- Thread Size (A): M16 (16x2mm)
- Base Diameter (D): 75.0mm
(75.0mm is 2.953 in.)
- Foot Height (C): 32.0mm
(32.0mm is 1.26 in.)
- Thread Length (F): 150.0mm
- Base Height (E): 30.0mm
- Overall Height: 182.0mm
- Load Rating: 53.90Kg
- Pad Thickness: 2mm
- Pad Material: Metal
- Hex Flats (B): 24mm
Brand: ECO
Country of Origin: JP
Product Compliance and Data
Similar to
- Misumi® C-CNFJNS16-150
- CCNFJNS16150
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
MLM160M150S4ECO, MLM160M150
