SC160MF-130-C-SK-BO (Each)

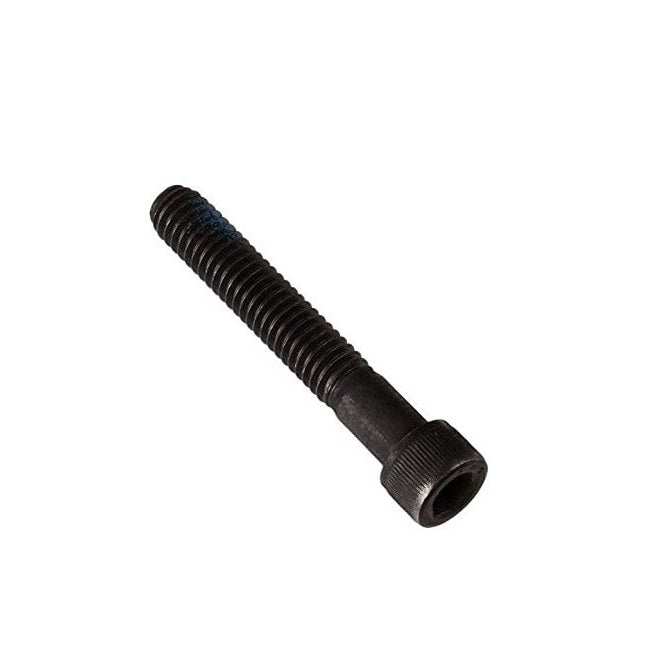

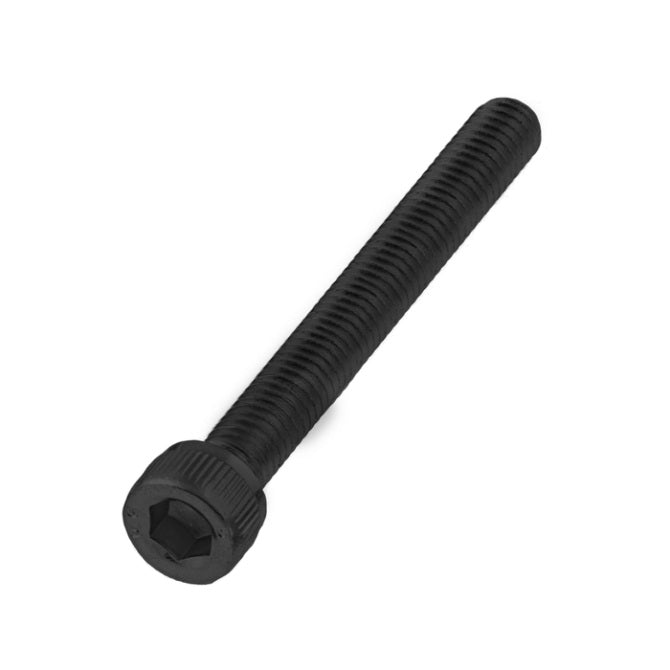

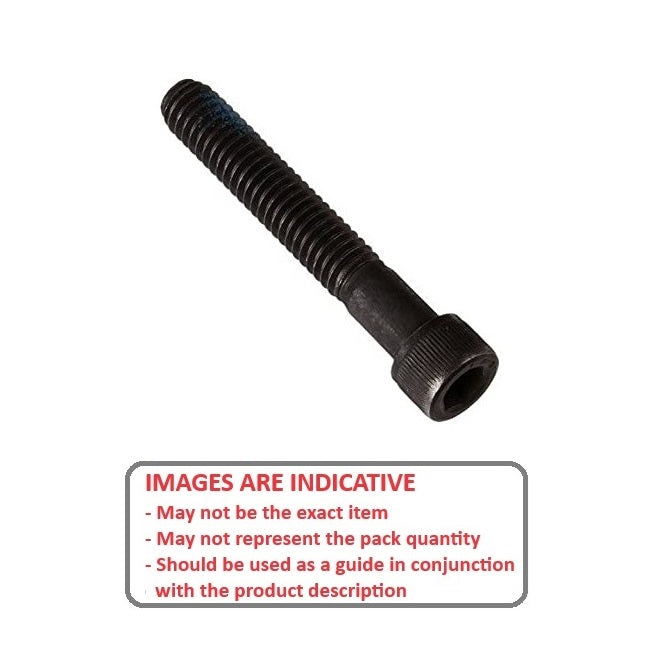

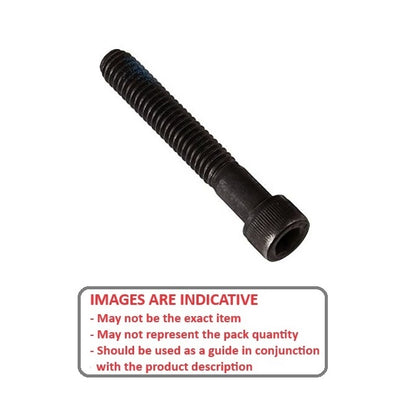

Socket Cap Screws - M16 Extra Fine - 16x1.5mm - 130 mm - Black Oxide Carbon Steel 12.9 Alloy Steel Screw
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:PDF Screws Catalogue
Washers
Nuts
Order 50 or more
for $36.21 AUD Each
M16 Extra Fine (16x1.5mm) 130 mm - Black Oxide Carbon Steel 12.9 Socket Cap Screws - High Tensile Steel Black Oxide - Sold per Each:
Base Category: Screws - Socket Cap
Top Level Category: Screws - Socket Cap - Alloy Steel - Black Oxide
Product Details

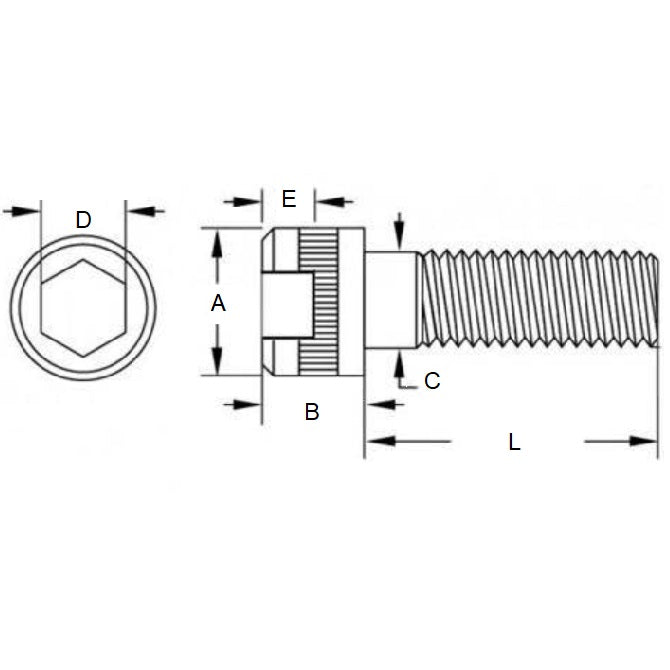

Thread Size (C): M16 Extra Fine (16x1.5mm)High Tensile Steel Black Oxide
- Thread Size (C): M16 Extra Fine (16x1.5mm)
- Thread Length (L): 130mm
(130mm is 5.118 in.)
- Material: Black Oxide Carbon Steel 12.9
- Head Length (B Max.): 16mm
- Head Diameter (A Max.): 24mm
- Drive Depth (E): 8mm
- Shank Diameter (C): 15.73 - 16.00mm
- Hex Key (D): 14.00mm
- Pitch: 1.50mm
- Threads Per Inch: 16.930TPI
- Min thread Length: 44.00mm
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- Misumi® CSHH-ST-MS16-130
- CSHHSTMS16130
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SC160MF130CSKBO, SC160MF130C
