SC120MEF-070-C-SK-C (PK-50)

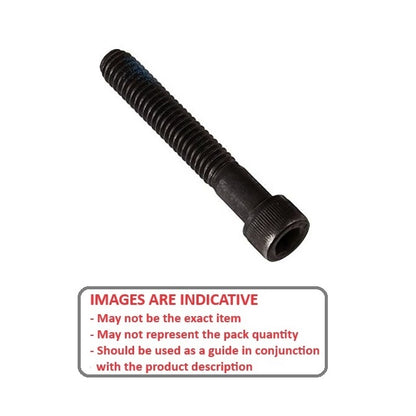

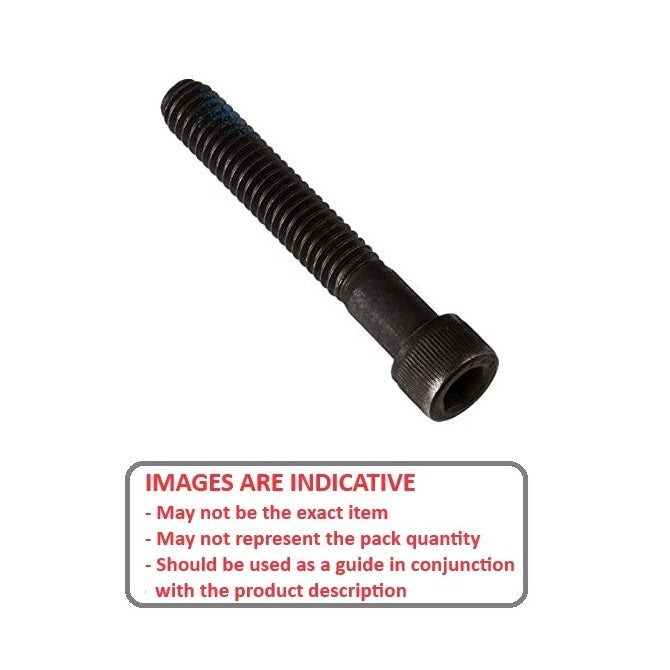

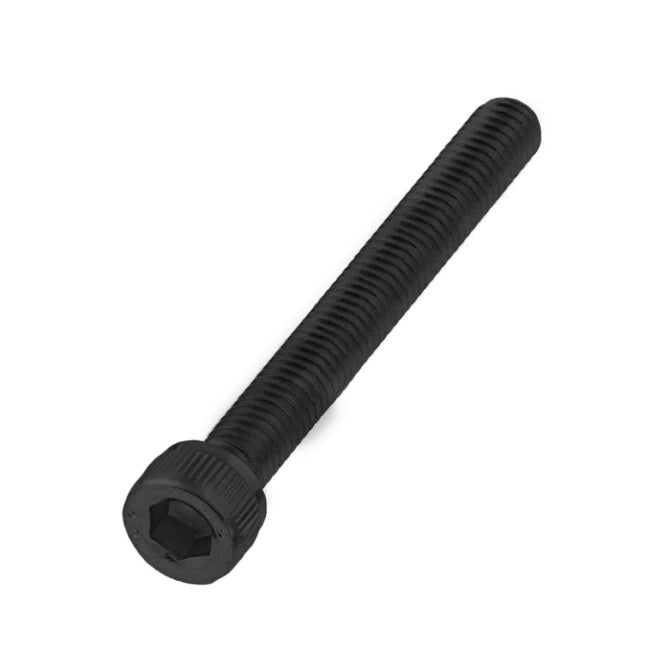

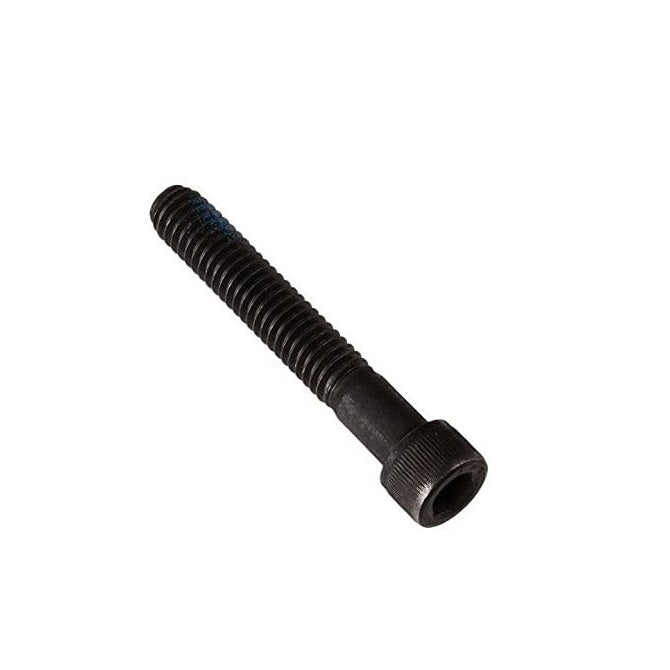

Socket Cap Screws - M12x1.25 - Extra Fine - 70 mm - High Tensile Steel / Black Oxide Alloy Steel Screw
Brighton Best
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:PDF Screws Catalogue
Washers
Nuts
Order 50 or more packs of 50 (2500 pcs)
for $221.27 AUD per 50 pack
M12x1.25 (Extra Fine) 70 mm - High Tensile Steel / Black Oxide Socket Cap Screws - High Tensile Steel Black Oxide - Sold per pack of 50:
Base Category: Screws - Socket Cap
Top Level Category: Screws - Socket Cap - Alloy Steel - Black Oxide
Product Details

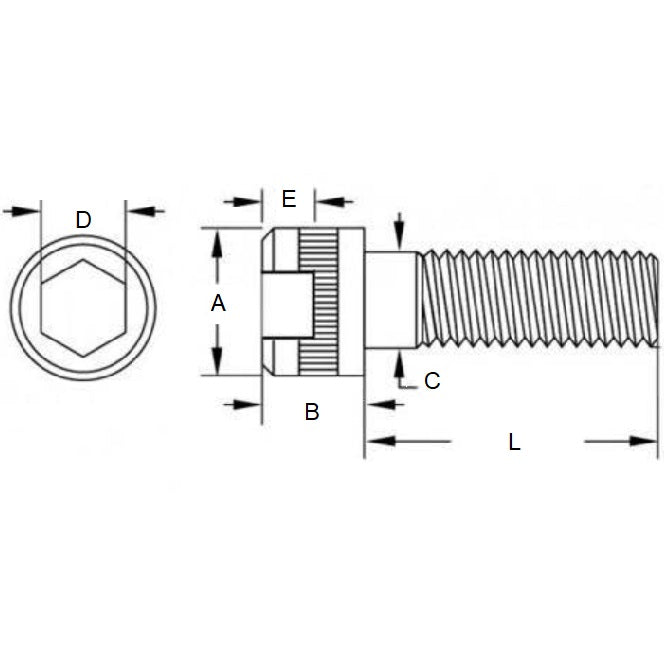

Thread Size (C): M12x1.25 (Extra Fine)High Tensile Steel Black Oxide
- Thread Size (C): M12x1.25 (Extra Fine)
- Thread Length (L): 70mm
(70mm is 2.756 in.)
- Material: High Tensile Steel / Black Oxide
- Head Length (B Max.): 12.0mm
- Head Diameter (A Max.): 18.0mm
- Drive Depth (E): 6.00mm
- Shank Diameter (C): 11.73 - 12.00mm
- Hex Key (D): 10.00mm
- Pitch: 1.250mm
- Threads Per Inch: 20.32TPI
- Min thread Length: 36mm
Brand: Brighton Best
Country of Origin: TW
Product Compliance and Data
Similar to
- Brighton Best® 532953
- ALTPART
- 96144A313
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SC120MEF070CSKC, SC120MEF070C
