FU01SS-OUK

Stainless Insert Locknuts - M12 Super Fine - 12x1mm - 22-0.2 - 18-0.2

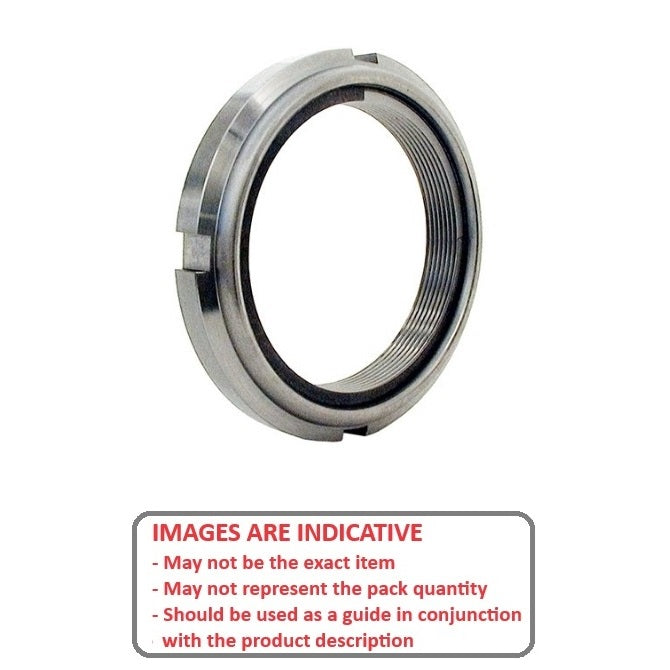

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Stainless Insert Locknuts - M12 Super Fine -12x1mm- 22-0.2 - 18-0.2
1 4

Equivalent

FU01SS-OUK has been identified as a possible equivalent to ONDRIVES FU01SS. Please take care when ordering equivalents, and check the data displayed further down to ensure it meets your requirements.

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$22.00 AUD
$41.80 AUD $22.00 AUD
Each
Qty: 4 available now
Only 4 may be ordered online. If you need a large quantity, please contact us.

Base Category: Locknuts - Stainless Insert

Top Level Category: Locknuts - Stainless Insert

Product Details

Thread Size: M12 Super Fine (12x1mm)
  • Diameter: 22-0.2mm
    (22-0.2mm is 0.866 in.)
  • Distance from Groove to Groove: 18-0.2mm
    (18-0.2mm is 0.709 in.)
  • Depth of Groove (T): 2.00mm
  • Thickness of Groove (S): 3+/-0.1mm
  • Overall Thickness: 5.4+/-0.3mm
  • Nut Prevailing Torque: 1.30Nm
  • Max Tightening: 23.50Nm
  • Proof Load: 10.70kN

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

Similar to

  • FU01SS

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
