SC100M-030-C-SK-S4 (PK-100)
Socket Cap Screws - M10 - 10x1.5mm - 30 mm - 304 Stainless Screw
Brighton Best
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:PDF Screws Catalogue
Washers
Nuts
Order 50 or more packs of 100 (5000 pcs)
for $82.43 AUD per 100 pack
M10 (10x1.5mm) 30 mm - 304 Stainless Socket Cap Screws - Stainless Steel 304 (Similar to A2, 18-8) HRB80 - Sold per pack of 100:
Base Category: Screws - Socket Cap
Top Level Category: Screws - Socket Cap - Stainless - 303-304
Product Details

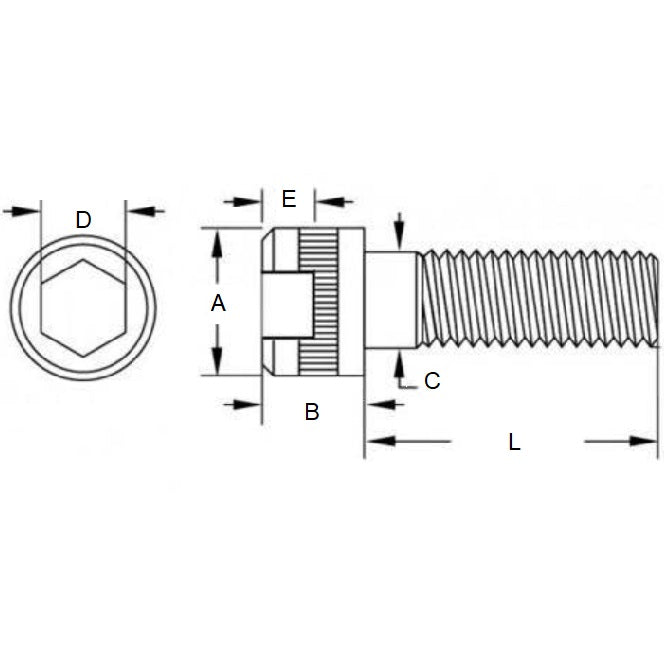

Thread Size (C): M10 (10x1.5mm)Stainless Steel 304 (Similar to A2, 18-8) HRB80
- Thread Size (C): M10 (10x1.5mm)
- Thread Length (L): 30mm
(30mm is 1.181 in.)
- Material: 304 Stainless
- Head Length (B Max.): 10.0mm
- Head Diameter (A Max.): 16.0mm
- Drive Depth (E): 5.00mm
- Shank Diameter (C): 9.78 - 10.00mm
- Hex Key (D): 8.00mm
- Pitch: 1.500mm
- Threads Per Inch: 16.93TPI
- Min thread Length: 30.0mm
Brand: Brighton Best
Country of Origin: TW
Product Compliance and Data
Similar to
- Brighton Best® 538152
- ALTPART
- 91292A159
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SC100M030CSKS4, SC100M030C
