SS100M-0177-CS-RB (Each)
Rolling Ball Tip Socket Set Screws - M10 - 10x1.5mm - 15.4 mm - Carbon Steel with Carbon Steel HRC 55-60 tip Screw
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Socket Set Screws Master PDF
Order 50 or more
for $20.91 AUD Each

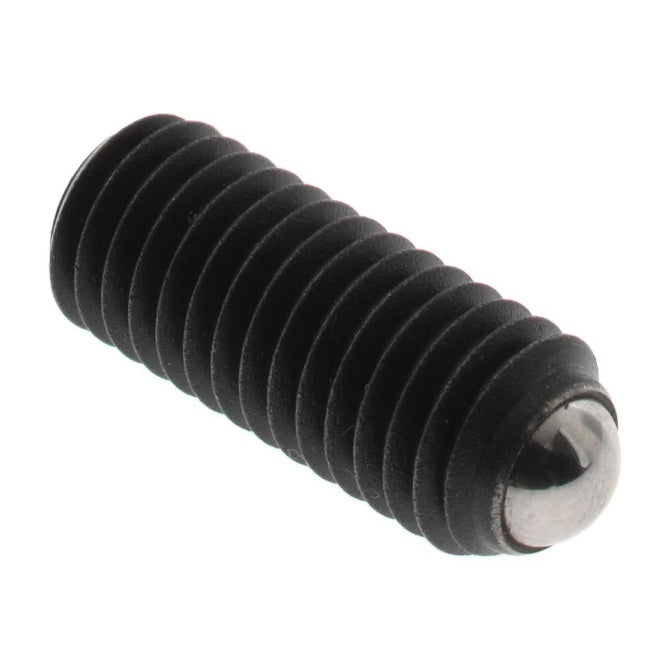

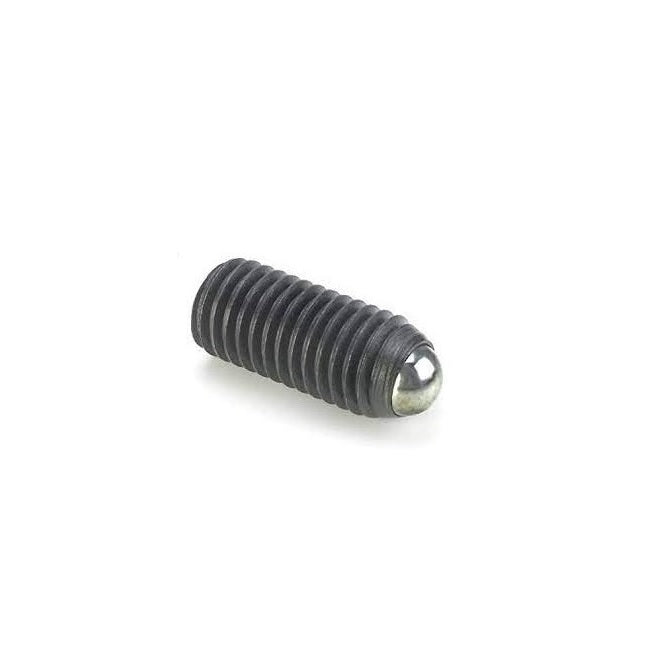

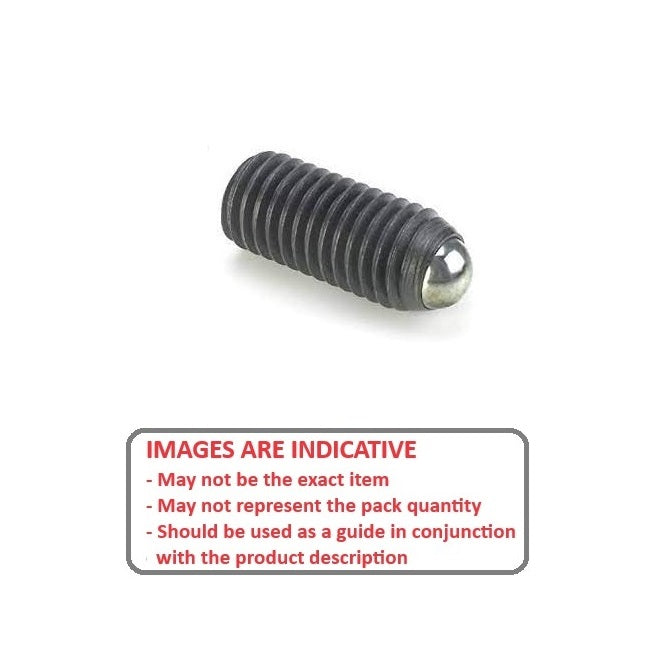

M10 (10x1.5mm) 15.4 mm Rolling Ball Tip Socket Set Screws - Carbon Steel with Carbon Steel HRC 55-60 tip - Sold per Each:
Base Category: Socket Set Screws - Rolling Ball Tip
Top Level Category: Socket Set Screws - Rolling Ball Tip - Carbon Steel
Product Details
Thread Size: M10 (10x1.5mm)Carbon Steel with Carbon Steel HRC 55-60 tip

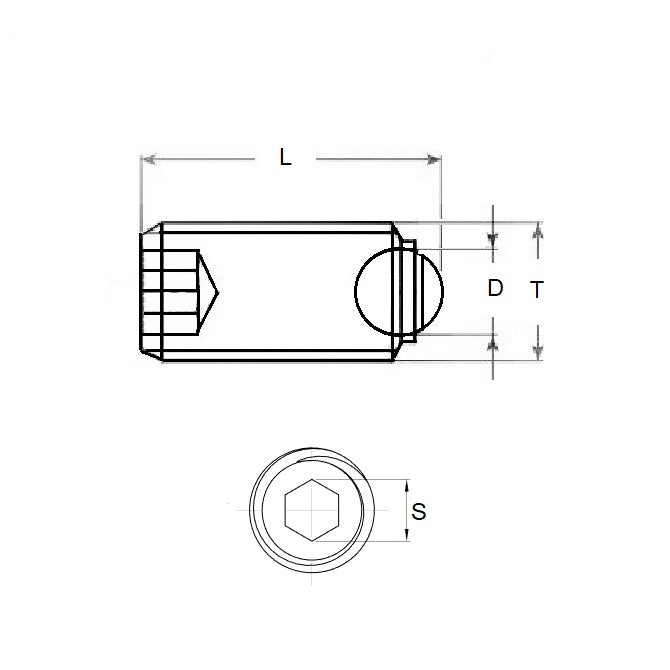

- Thread Size: M10 (10x1.5mm)
- Thread Length (L): 15.4mm
(15.4mm is 0.606 in.)
- Type: Rolling Ball Tip
- Overall Length (L): 17.7mm
- Ball Diameter (D): 7.0mm
- Hex Key Size: 5.0
- Body Material: Carbon Steel
- Ball Material: Carbon Steel HRC 55-60
- Pitch: 1.5mm
- Threads Per Inch: 16.93TPI
- Finish: Black Oxide
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 93339A230
- Misumi® BSR10X16
- Misumi® RSM10-17.7
- Misumi® SCS-M10X16-R
- RSM10177
- SCSM10X16R
- S705CBM1018
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SS100M0177CSRB, SS100M0177CS
