GHK1111-1111-127 (Each)

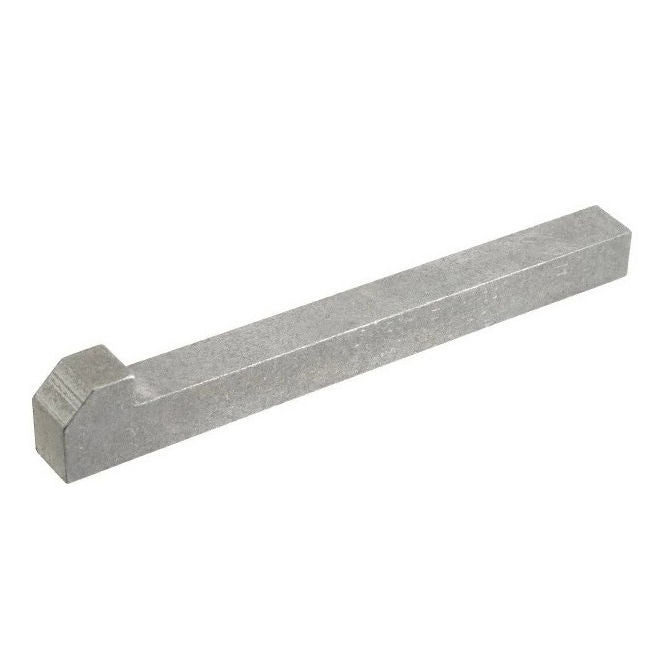

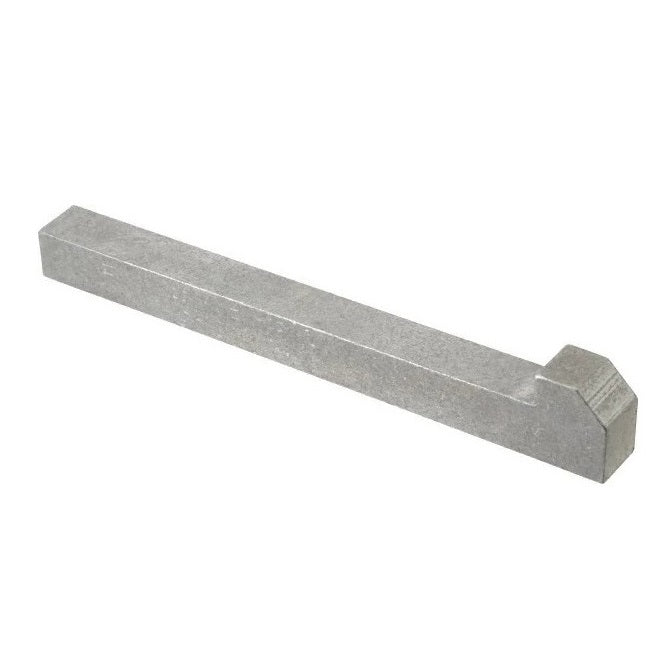

Gib Head Keys - 11.113x11.113x127 mm - Cold Finished Steel Key

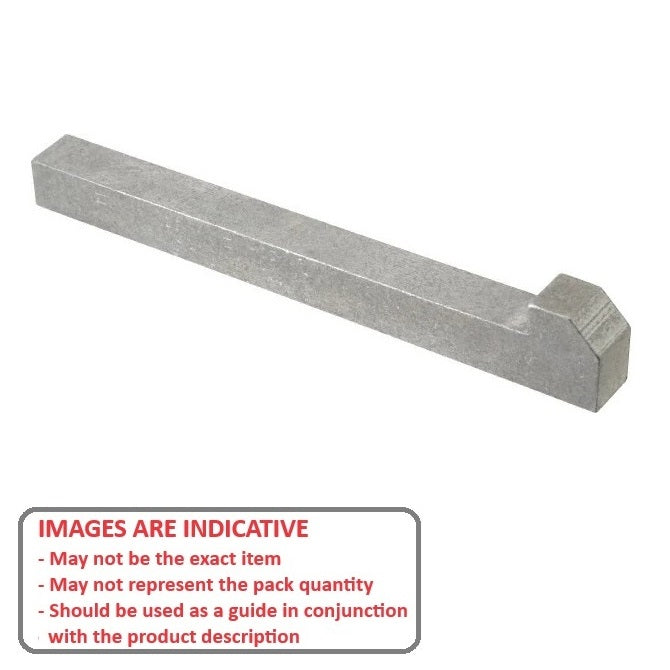

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Gib Head Keys - 11.113x11.113x127 mm - Cold Finished Steel
1 4

ENQUIRE

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Keysteel Catalogue PDF
Special Order Only
This item is discontinued. Please contact us for a special quote if you require a large quantity.

Base Category: Keys - Gib Head

Top Level Category: Keys - Gib Head - Steel

Product Details

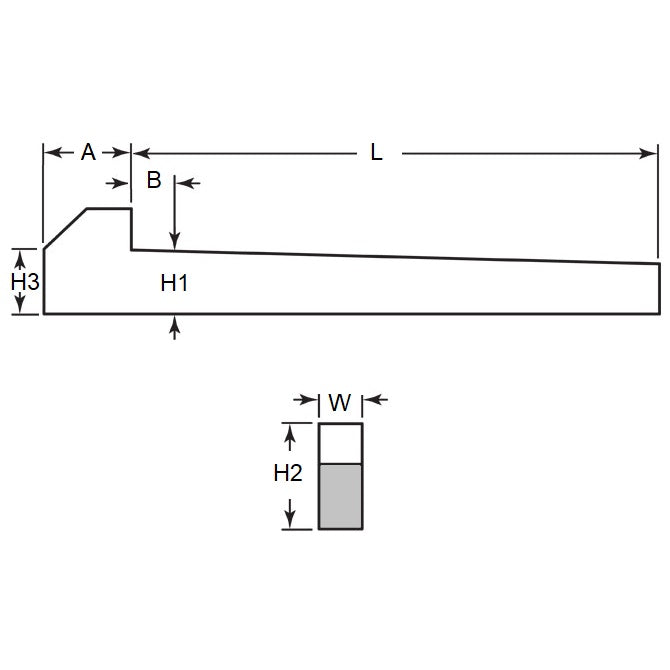

Nominal Key Height (H1): 11.113mm
(11.113mm is 0.438 in.)

Cold Finished Steel
  • Nominal Key Height (H1): 11.113mm
    (11.113mm is 0.438 in.)
  • Width (W): 11.113mm
    (11.113mm is 0.438 in.)
  • Length (L): 127.0mm
    (127.0mm is 5 in.)
  • Head Height (h2) Approx.: 17.5mm
  • Approx (B): 10.16
  • Approx (H3): 11.91
  • Taper: 1:100
  • Standard: BS46
  • Head Length (Approx) (A): 12.70mm

Brand: ExaktKey
Country of Origin: US

Product Compliance and Data

Similar to

  • MAK-A-KEY® JFOR5X716

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
