G014K-014-M1-080-060F-CG (Each)

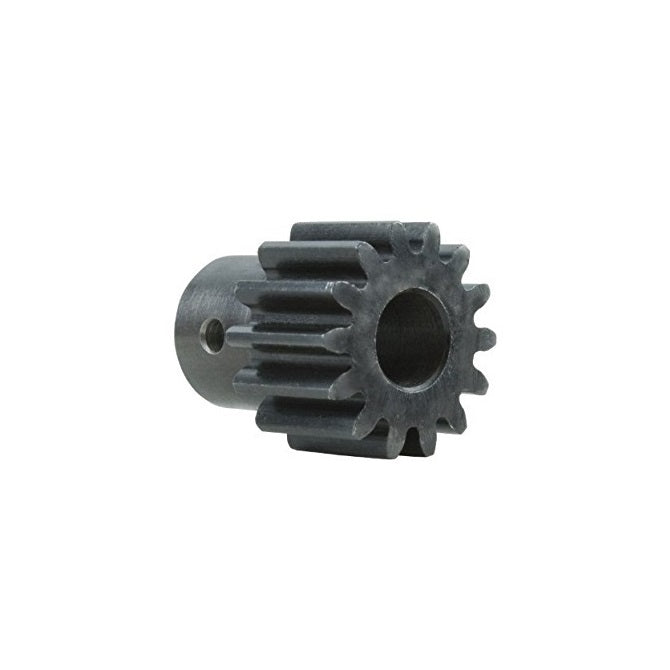

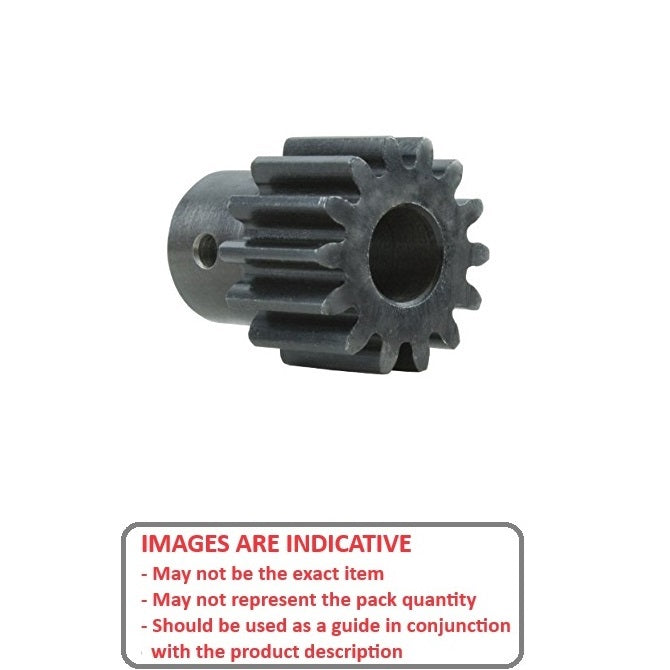

Spur Gears - 14 tooth - 14x6 mm Hubbed - Carbon Steel S45C Gear
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more
for $19.43 AUD Each
14 tooth - 14x6 mm Spur Gears - Carbon Steel S45C - Sold per Each:
Base Category: Gears - Spur
Top Level Category: Gears - Spur - Hubbed - Module 1 - Steel
Product Details
Number of Teeth: 14Carbon Steel S45C

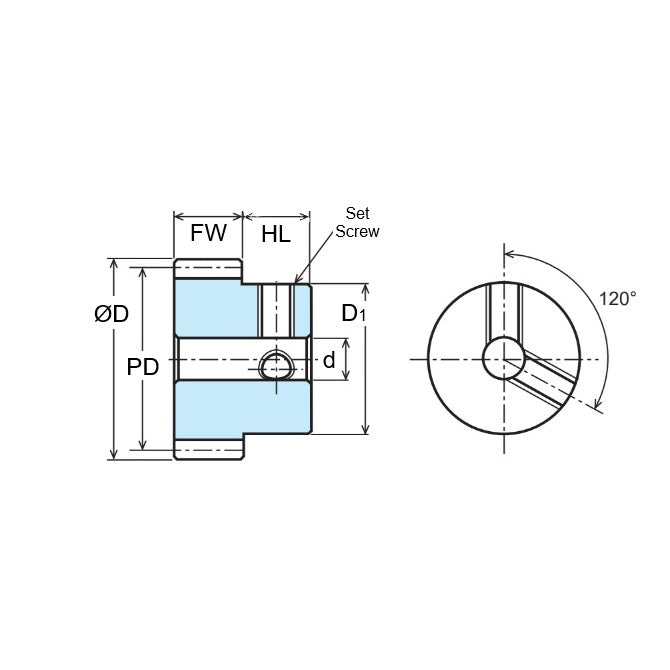

- Number of Teeth: 14
- Pitch Circle Diameter (PD): 14.00mm
(14.00mm is 0.551 in.)
- Bore (d): 6.000mm
H8
(6.000mm is 0.236 in.)
- Face Width (FW): 8.00mm
- Type: Integral Hub
- Hub Diameter (D1): 16.00
- Hub Projection (HL): 17.00
- Locking Method: Set Screws x 2
- Hardness: Unhardened
- Quality: N8 (JIS B 1702-1)
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- S1S14Kx0806
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
G014K014M1080060FCG, G014K014M1
