G120B-120-M1-100-430F-C (Each)

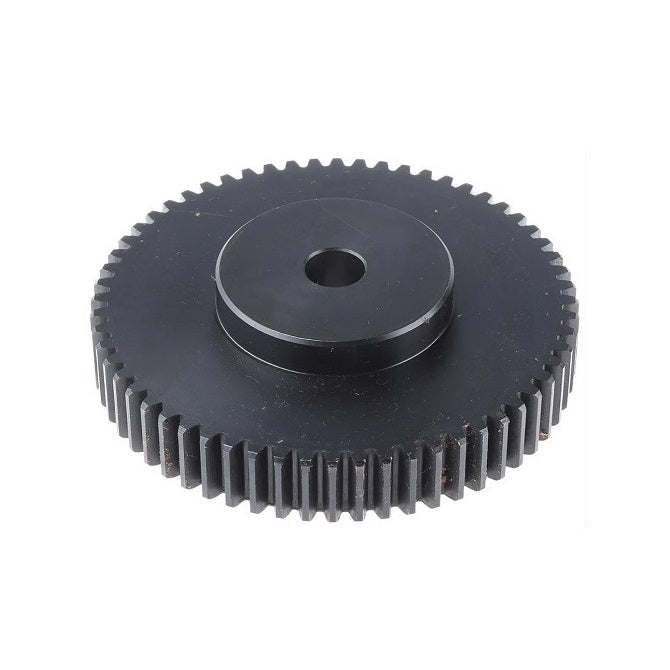

Spur Gears - 120 tooth - 120x43 mm Hubbed - Carbon Steel S45C Gear
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more
for $121.29 AUD Each
120 tooth - 120x43 mm Spur Gears - Carbon Steel S45C - Sold per Each:
Base Category: Gears - Spur
Top Level Category: Gears - Spur - Hubbed - Module 1 - Steel
Product Details
Number of Teeth: 120Carbon Steel S45C

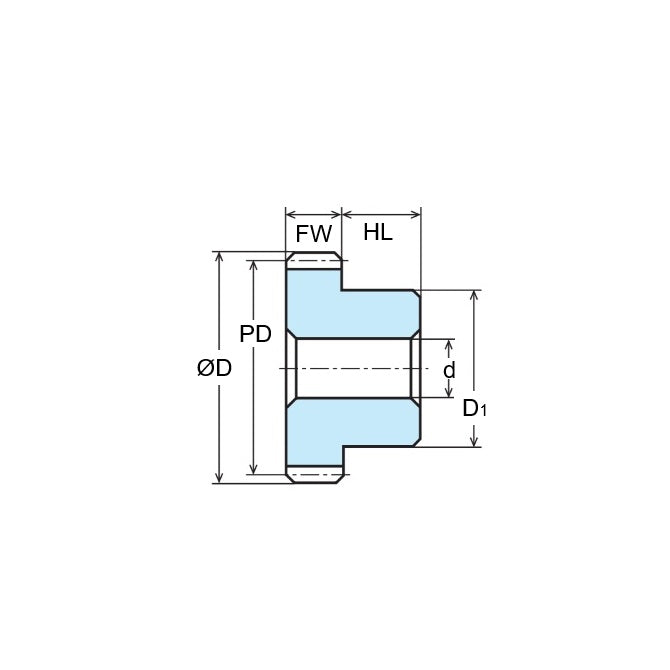

- Number of Teeth: 120
- Pitch Circle Diameter (PD): 120.00mm
(120.00mm is 4.724 in.)
- Bore (d): 43.000mm
H7
(43.000mm is 1.693 in.)
- Face Width (FW): 10.00mm
- Type: Hubbed
- Hub Diameter (D1): 50.00
- Hub Projection (HL): 10.00
- Locking Method: None
- Hardness: Unhardened
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- SS1120H43
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
