CCE-09368-CZY (Each)
External Retaining Rings - 93.68x2.77x88.72 mm Circlips - Steel Zinc Plated Yellow Circlip
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

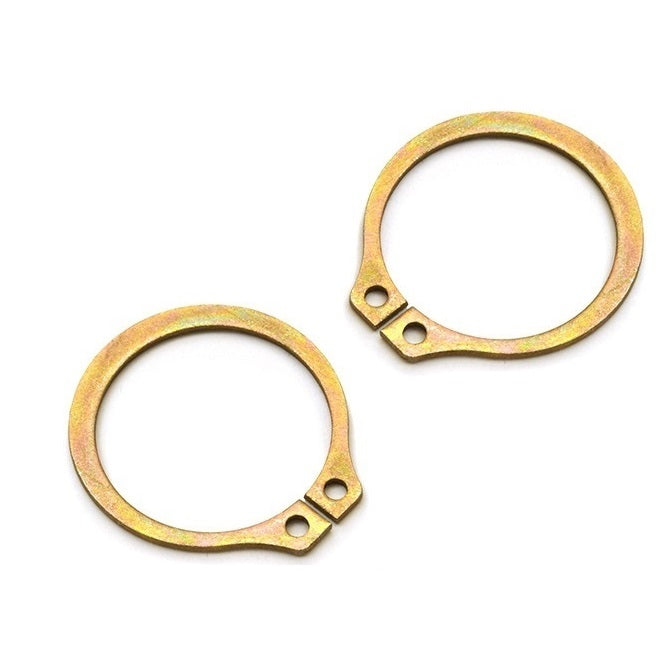

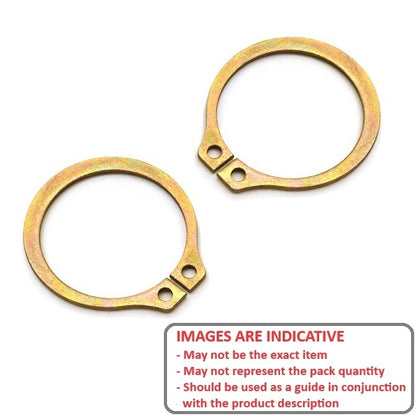

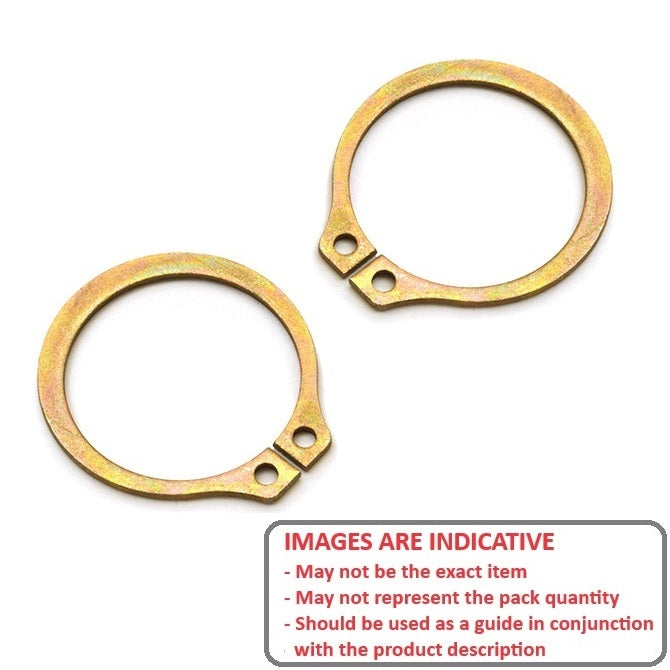

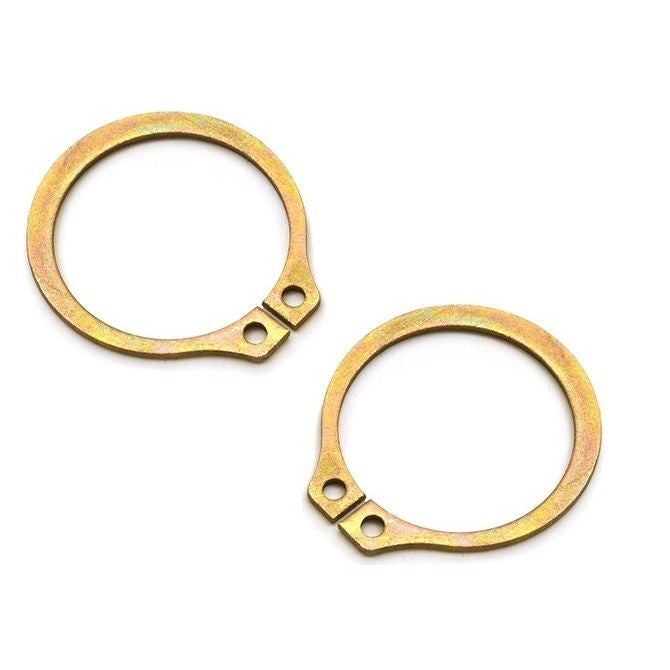

3-11/16x3-1/2 inch Circlip - 93.68x2.77x88.72 mm External Retaining Rings - Steel Zinc Plated Yellow - Sold per Each:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Product Details
Shaft Diameter (Ds): 93.68mm(93.68mm is 3.688 in.)
Steel Zinc Plated Yellow
- Shaft Diameter (Ds): 93.68mm
(93.68mm is 3.688 in.)
- Clip Thickness (T): 2.77mm
+/- 0.076
(2.77mm is 0.109 in.)
- Groove Dia. (Dg): 88.72mm
+/- 0.152
(88.72mm is 3.493 in.)
- Approx. Loose Circlip ID (A): 86.60mm
- Groove Width (W): 3.10mm
- Standard: MIL-16624
Brand: MBA
Country of Origin: US
Product Compliance and Data
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCE09368CZY, CCE09368
