CCE-00478-CZY (Each)
External Retaining Rings - 4.78x0.38x4.45 mm Circlips - Steel Zinc Plated Yellow Circlip
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

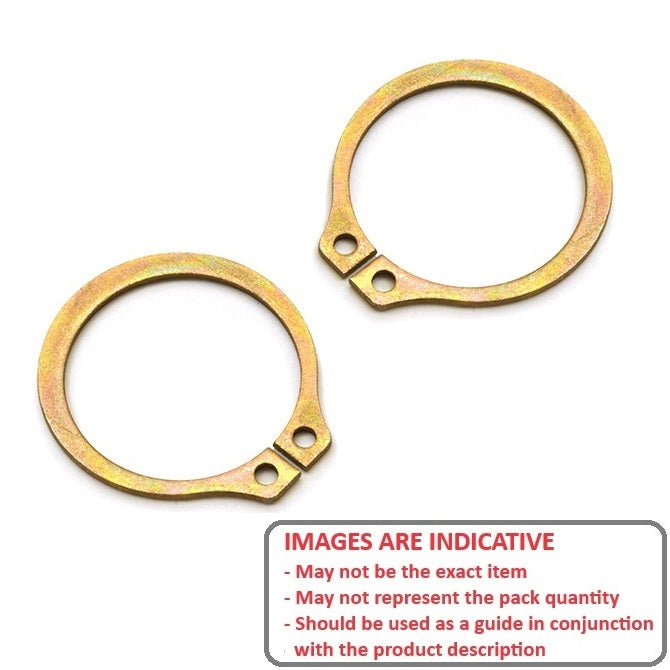

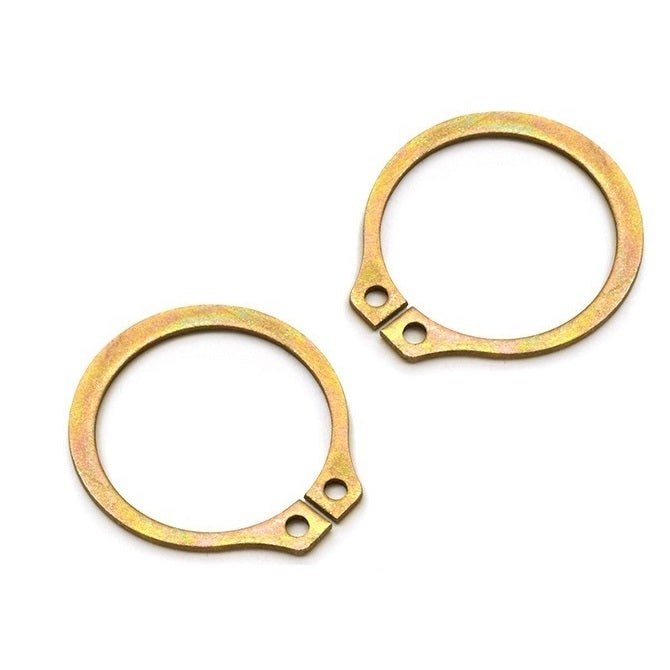

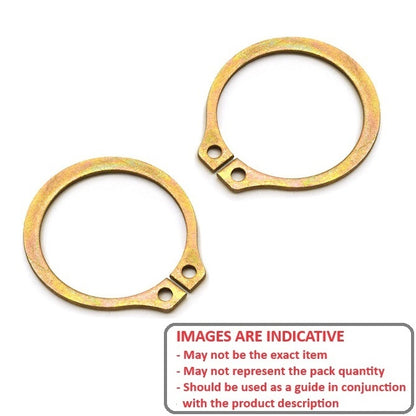

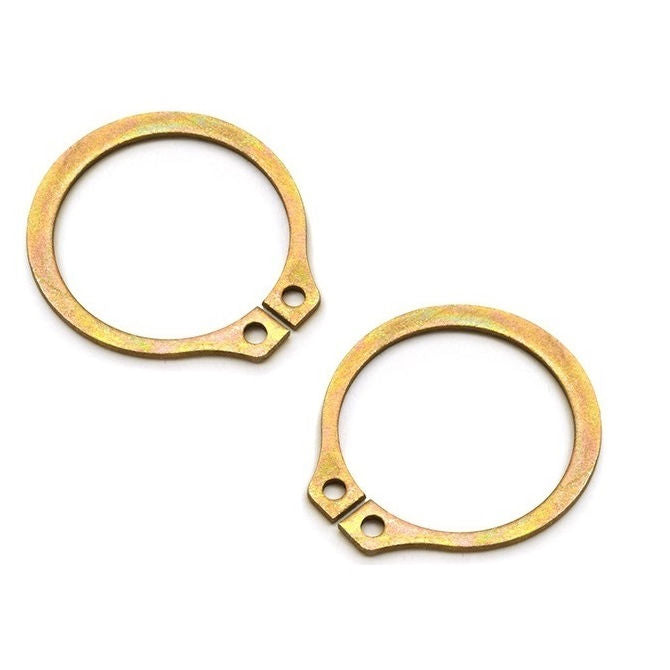

3/16 inch Circlip - 4.78x0.38x4.45 mm External Retaining Rings - Steel Zinc Plated Yellow - Sold per Each:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Product Details
Shaft Diameter (Ds): 4.78mm(4.78mm is 0.188 in.)
Steel Zinc Plated Yellow
- Shaft Diameter (Ds): 4.78mm
(4.78mm is 0.188 in.)
- Clip Thickness (T): 0.38mm
+/- 0.051
(0.38mm is 0.015 in.)
- Groove Dia. (Dg): 4.45mm
+/- 0.038
(4.45mm is 0.175 in.)
- Approx. Loose Circlip ID (A): 4.30mm
- Groove Width (W): 0.50mm
- Clearance in Groove (C1): 7.26mm
- Min. Extension (n): 0.56
- Standard: MIL-16624
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- NoCor® SH-018-ZD
- SH018ZD
- N14000018AZD
- N1400-0018AZD
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCE00478CZY, CCE00478
