CCE-00318-BZ (Each)

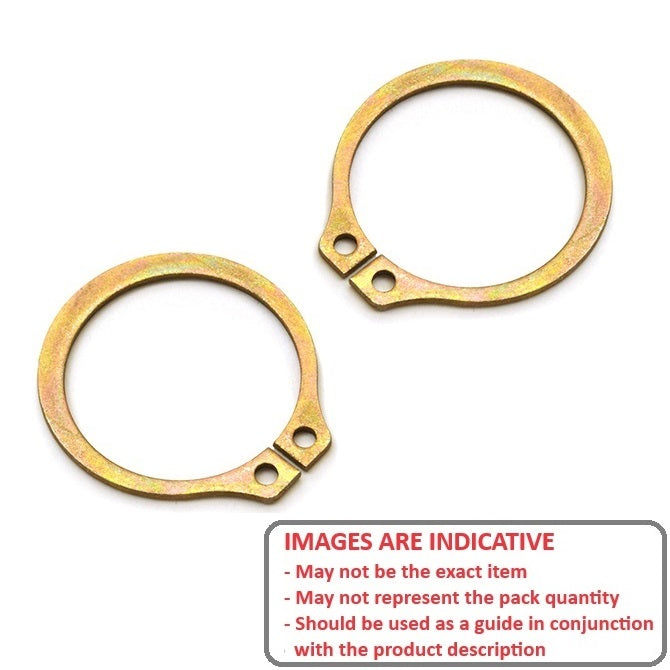

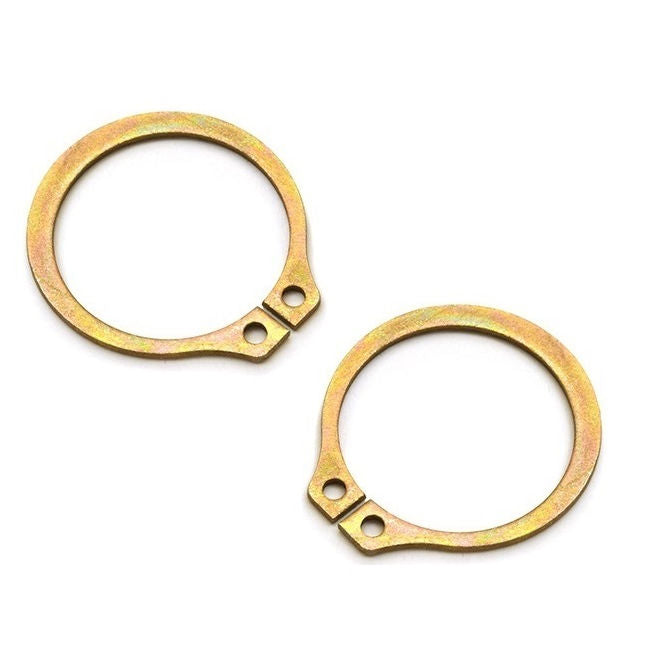

External Retaining Rings - 3.18x0.25x2.97 mm Circlips - Zinc Plated Beryllium Copper Circlip
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
1/8 inch Circlip - 3.18x0.25x2.97 mm External Retaining Rings - Zinc Plated Beryllium Copper - Sold per Each:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Product Details
Shaft Diameter (Ds): 3.18mm(3.18mm is 0.125 in.)
Zinc Plated Beryllium Copper
- Shaft Diameter (Ds): 3.18mm
(3.18mm is 0.125 in.)
- Clip Thickness (T): 0.25mm
+/- 0.025
(0.25mm is 0.01 in.)
- Groove Dia. (Dg): 2.97mm
+/- 0.038
(2.97mm is 0.117 in.)
- Approx. Loose Circlip ID (A): 2.80mm
- Groove Width (W): 0.30mm
- Clearance on Shaft (C1): 5.59mm
- Clearance in Groove (C1): 5.44mm
- Min. Extension (n): 0.36
- Standard: MIL-16624
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- NoCor® SH-012-BCZD
- SH012BCZD
- N14000012BCZ
- N1400-0012BCZ
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCE00318BZ, CCE00318
