BF0180-0200-0170-PH3 (PK-10)
Flanged Bushes - 18x20x17 mm Plastic - Iglidur H370 Bush
Iglidur
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more packs of 10 (500 pcs)
for $99.45 AUD per 10 pack

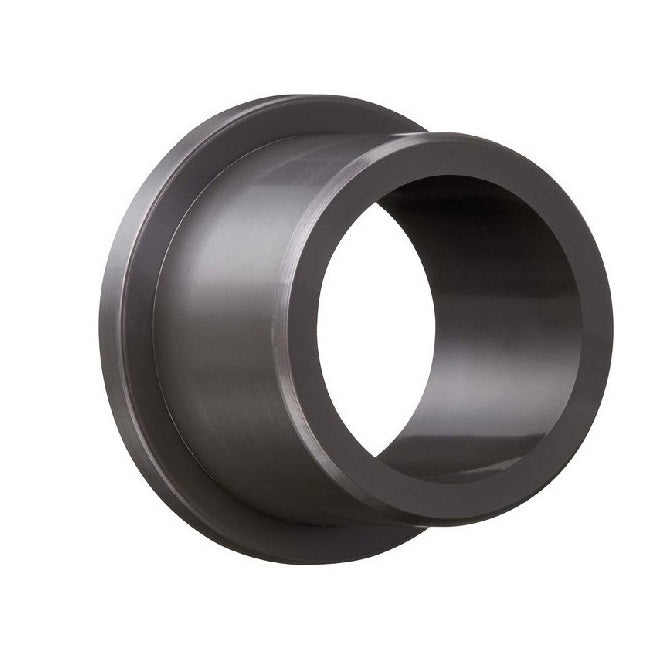

18x20x17 mm Flanged Bushes - Iglidur H370 - Sold per pack of 10:
Base Category: Bushes - Flanged
Top Level Category: Bushes - Flanged - Plastic - Iglidur H370
Product Details

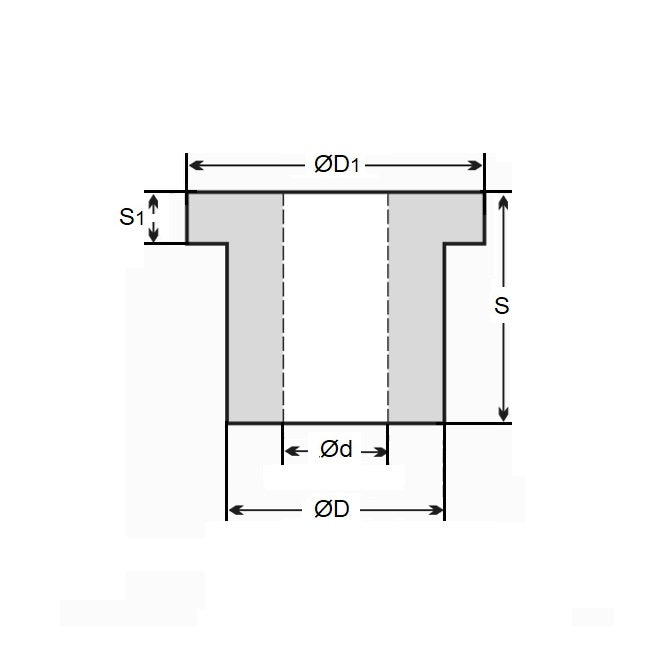

Nominal Inside Diameter (d): 18.000mm+ 0.016 / + 0.086
(18.000mm is 0.709 in.)
Iglidur H370
- Nominal Inside Diameter (d): 18.000mm
+ 0.016 / + 0.086
(18.000mm is 0.709 in.)
- Nominal Outside Diameter (D): 20.000mm
(20.000mm is 0.787 in.)
- Length (s): 17.000mm
+ 0.000 / - 0.270
(17.000mm is 0.669 in.)
- Flange OD (D1): 26.00mm
- Flange Thickness (s1): 1.00mm
Brand: Iglidur
Country of Origin: DE
Product Compliance and Data
Similar to
- Igus® H370FM-1820-17
- H370FM182017
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BF018002000170PH3, BF018002000170
