BF0140-0160-0120-PH3 (PK-10)
Flanged Bushes - 14x16x12 mm Plastic - Iglidur H370 Bush
Iglidur
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more packs of 10 (500 pcs)
for $87.17 AUD per 10 pack
14x16x12 mm Flanged Bushes - Iglidur H370 - Sold per pack of 10:
Base Category: Bushes - Flanged
Top Level Category: Bushes - Flanged - Plastic - Iglidur H370

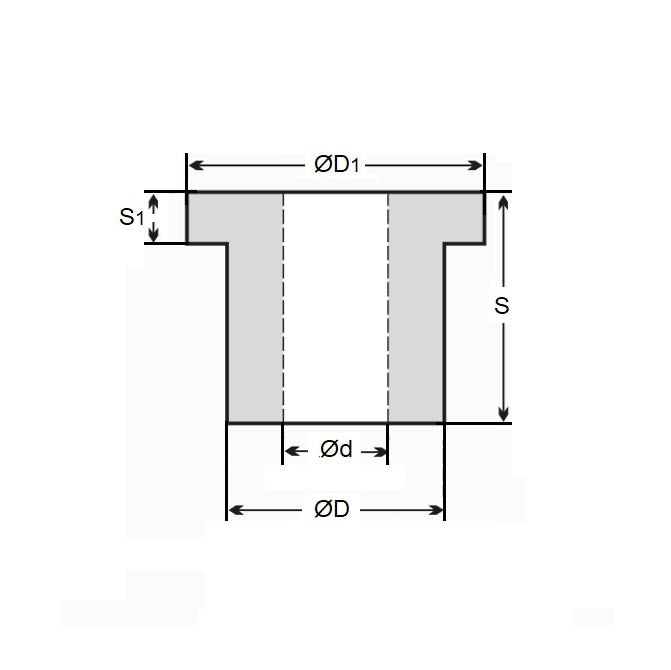

Product Details
Nominal Inside Diameter (d): 14.000mm+ 0.016 / + 0.086
(14.000mm is 0.551 in.)
Iglidur H370
- Nominal Inside Diameter (d): 14.000mm
+ 0.016 / + 0.086
(14.000mm is 0.551 in.)
- Nominal Outside Diameter (D): 16.000mm
(16.000mm is 0.63 in.)
- Length (s): 12.000mm
+ 0.000 / - 0.270
(12.000mm is 0.472 in.)
- Flange OD (D1): 22.00mm
- Flange Thickness (s1): 1.00mm
Brand: Iglidur
Country of Origin: DE
Product Compliance and Data
Similar to
- Igus® H370FM-1416-12
- H370FM141612
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BF014001600120PH3, BF014001600120
