BF0160-0180-0170-PF (PK-10)
Flanged Bushes - 16x18x17 mm Plastic - Iglidur F Bush
Iglidur
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more packs of 10 (500 pcs)
for $191.25 AUD per 10 pack
16x18x17 mm Flanged Bushes - Iglidur F - Sold per pack of 10:
Base Category: Bushes - Flanged
Top Level Category: Bushes - Flanged - Plastic - Iglidur F
Product Details

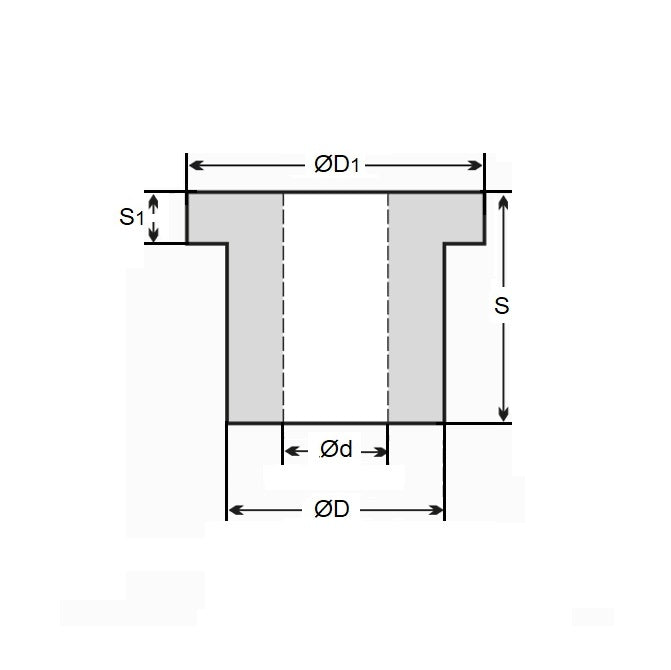

Nominal Inside Diameter (d): 16.000mm+ 0.050 / + 0.160
(16.000mm is 0.63 in.)
Iglidur F
- Nominal Inside Diameter (d): 16.000mm
+ 0.050 / + 0.160
(16.000mm is 0.63 in.)
- Nominal Outside Diameter (D): 18.000mm
(18.000mm is 0.709 in.)
- Length (s): 17.000mm
+ 0.000 / - 0.270
(17.000mm is 0.669 in.)
- Flange OD (D1): 24.00mm
- Flange Thickness (s1): 1.00mm
Brand: Iglidur
Country of Origin: DE
Product Compliance and Data
Similar to
- Igus® FFM-1618-17
- FFM161817
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BF016001800170PF, BF016001800170
