NC-0080-0120-0080-HT (Each)

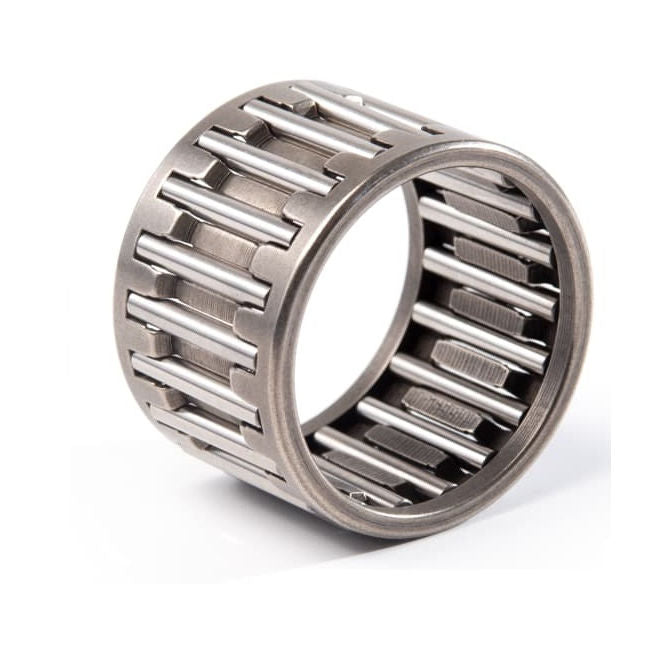

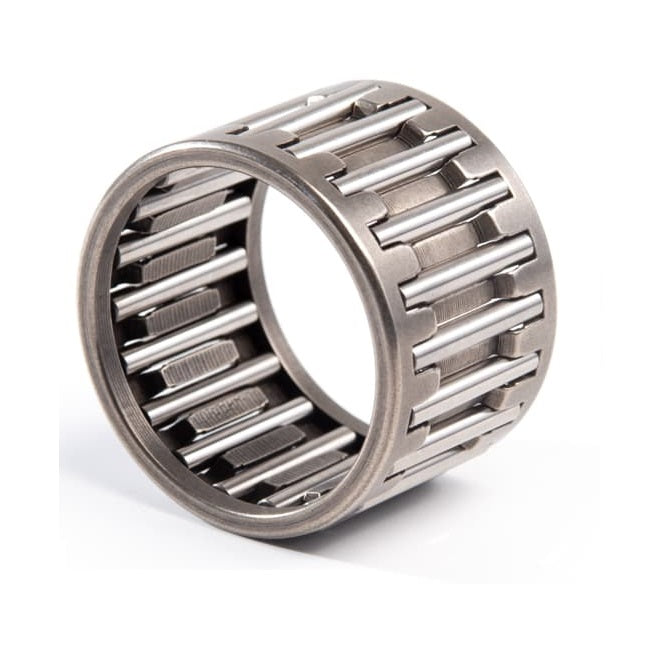

Needle Roller without Inner Ring Bearings - 8x12x8 mm / 330 Kgf Cage Type - CSteel Bearing

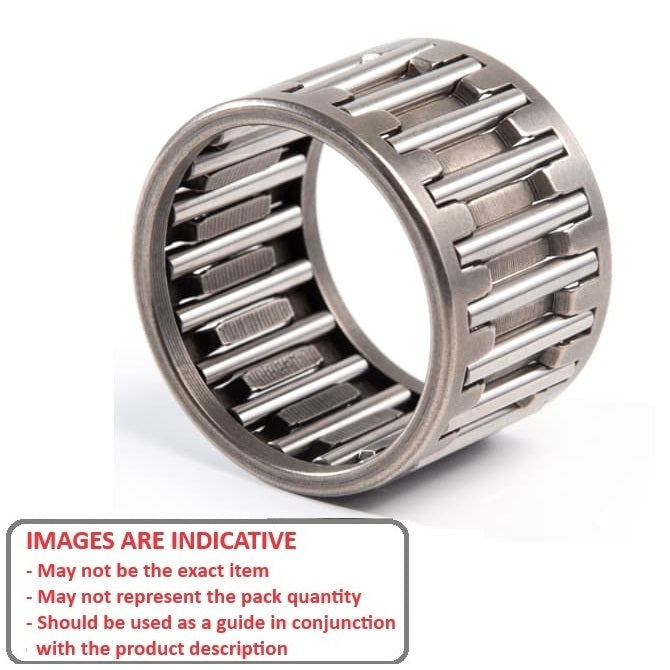

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Needle Roller without Inner Ring Bearings - 8x12x8 mm / 330 mm
1 4

ENQUIRE

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Shafting
Special Order Only
This item is discontinued. Please contact us for a special quote if you require a large quantity.

Base Category: Bearings - Needle Roller without Inner Ring

Top Level Category: Bearings - Needle Roller without Inner Ring - Cage Type

Product Details

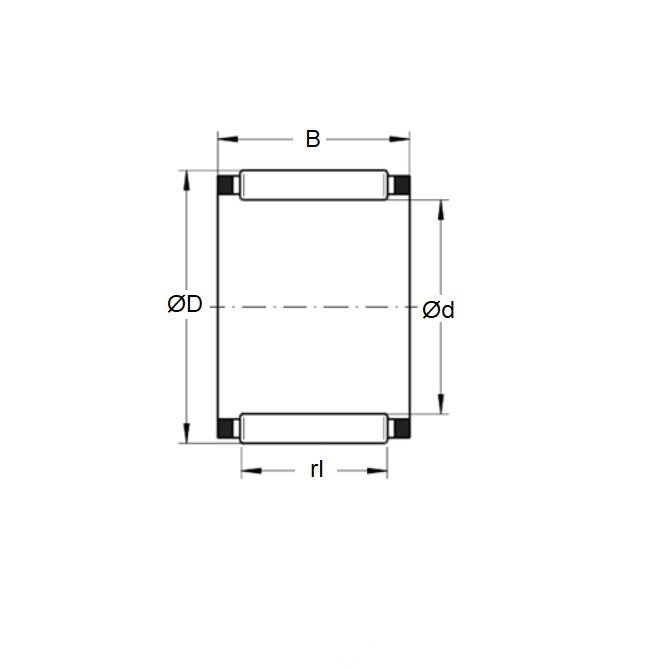

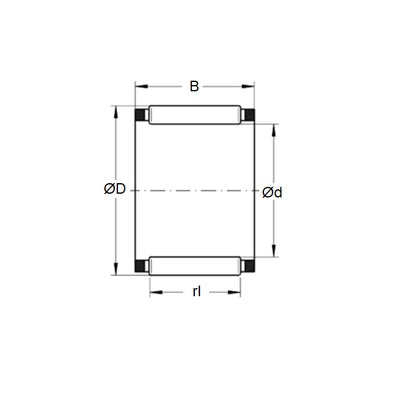

Shaft Diameter (d): 8.000mm
(8.000mm is 0.315 in.)

CSteel
  • Shaft Diameter (d): 8.000mm
    (8.000mm is 0.315 in.)
  • O.D. (D): 12.000mm
    (12.000mm is 0.472 in.)
  • Width (B): 8.000mm
    (8.000mm is 0.315 in.)
  • Basic Dynamic Load Rating: 330Kgf
  • Basic Static Load Rating: 270Kgf
  • Cage Type: Heat Treated Steel
  • Type: Single Rowrl

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • IKO KT8128EG

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
