NC-0100-0140-0100-ST (Each)

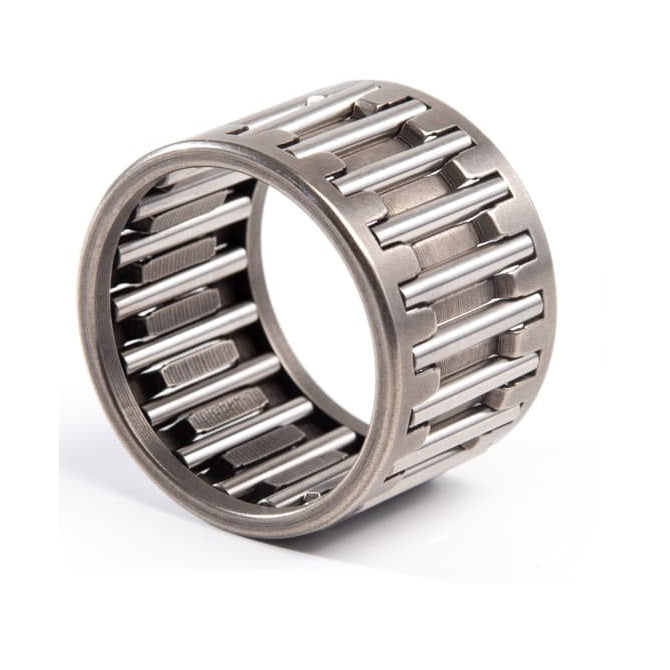

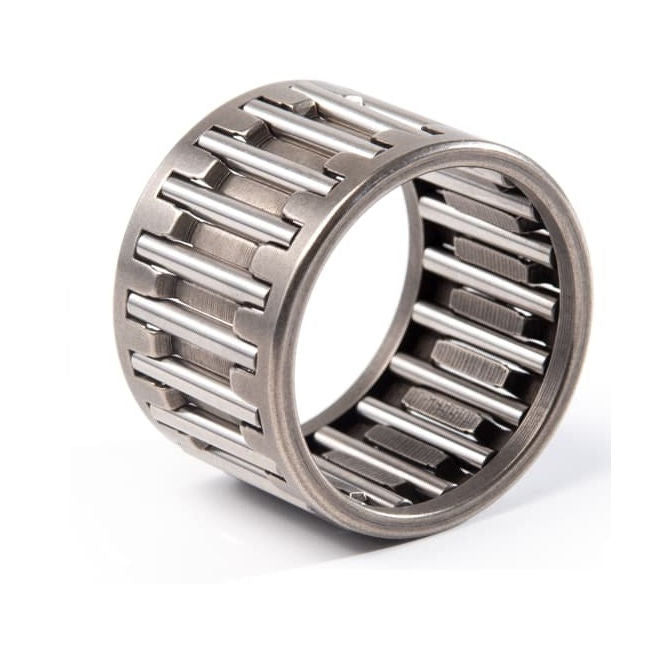

Needle Roller without Inner Ring Bearings - 10x14x10 mm / 585 Kgf Cage Type - CSteel Bearing

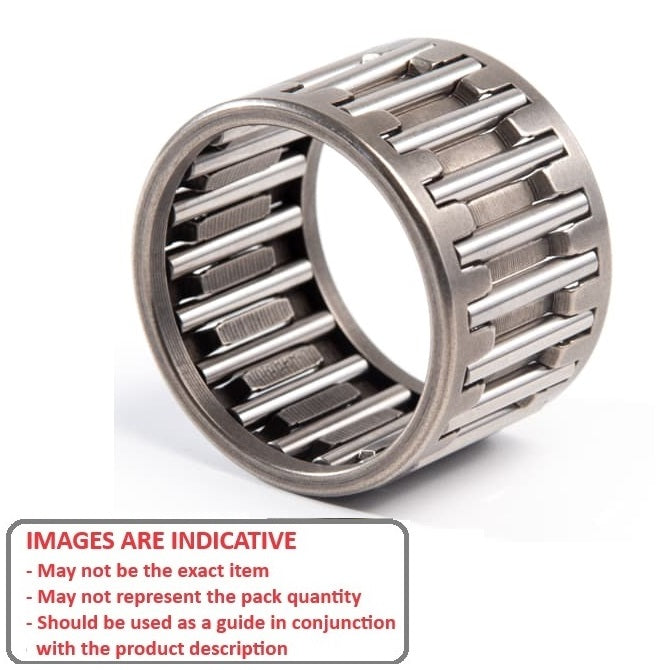

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Needle Roller without Inner Ring Bearings - 10x14x10 mm / 585 mm
1 4

ENQUIRE

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Shafting
Special Order Only
This item is discontinued. Please contact us for a special quote if you require a large quantity.

Base Category: Bearings - Needle Roller without Inner Ring

Top Level Category: Bearings - Needle Roller without Inner Ring - Cage Type

Product Details


Needle Rollers in Cage

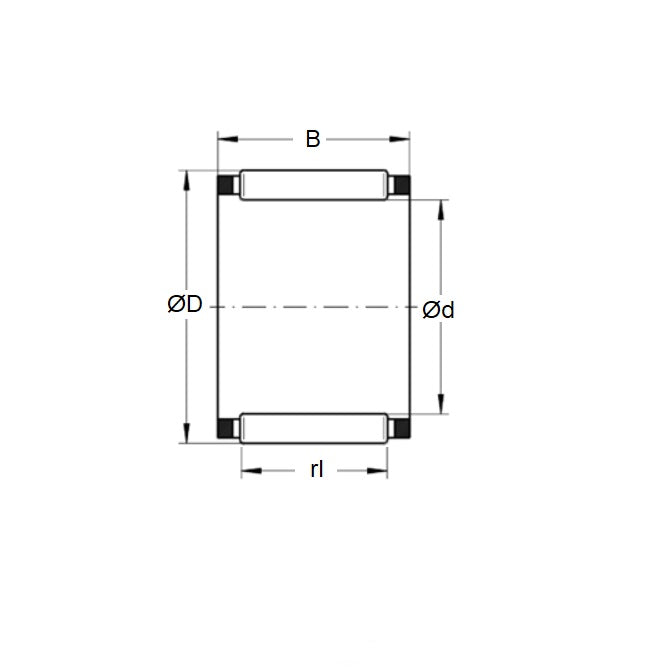

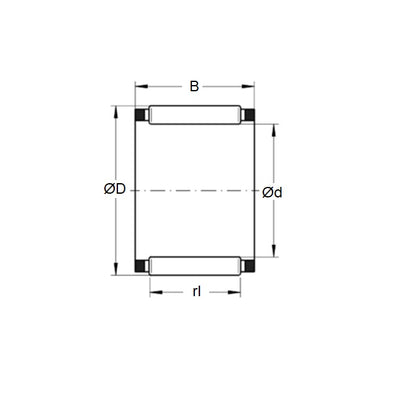

Shaft Diameter (d): 10.000mm
(10.000mm is 0.394 in.)

CSteel
  • Shaft Diameter (d): 10.000mm
    (10.000mm is 0.394 in.)
  • O.D. (D): 14.000mm
    (14.000mm is 0.551 in.)
  • Width (B): 10.000mm
    (10.000mm is 0.394 in.)
  • Basic Dynamic Load Rating: 585Kgf
  • Basic Static Load Rating: 640Kgf
  • Limiting Speed Grease: 18000RPM
  • Limiting Speed Oil: 30000RPM
  • Cage Type: Steel
  • Type: Single Rowrl
  • 8.200Roller Length (rl) Ref. Only

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • FAG® K10x14x10H

Used for

  • RC Nitro Engine Parts
  • CMB - 67 All Models - Replacement Bearing
  • CMB - GP - 21 - Replacement Bearing
    We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
