BIN-01588-HS-B (Pack of 25)

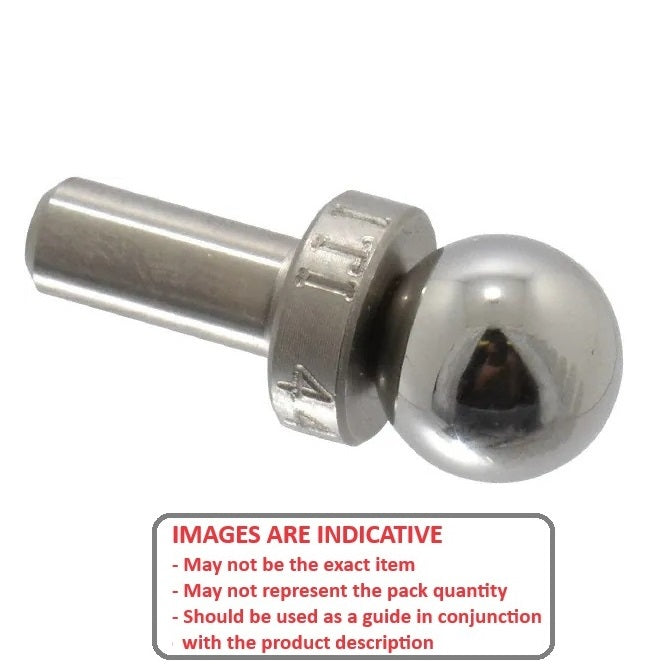

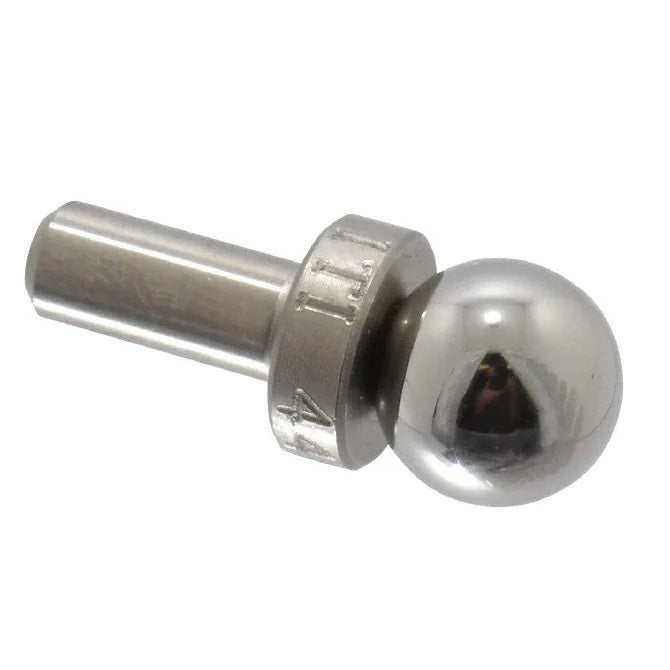

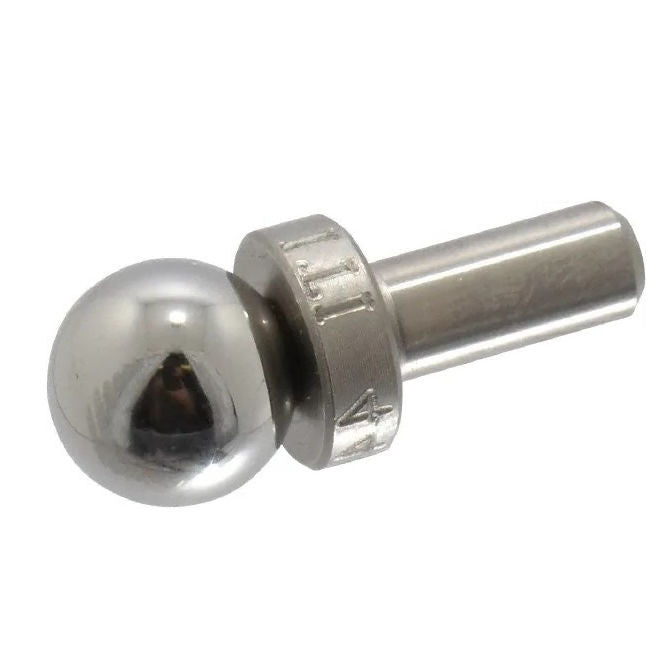

Inspection Balls - 15.875x9.525x36.068 mm - Carbon Steel Ball
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleBalls Master Catalogue PDF
Order 50 or more packs of 25 (1250 pcs)
for $9,751.37 AUD per 25 pack
5/8x3/8 inch Ball - 15.875x9.525x36.068 mm Inspection Balls - Carbon Steel - Sold per pack of 25:
Base Category: Balls - Inspection
Top Level Category: Balls - Inspection
Product Details

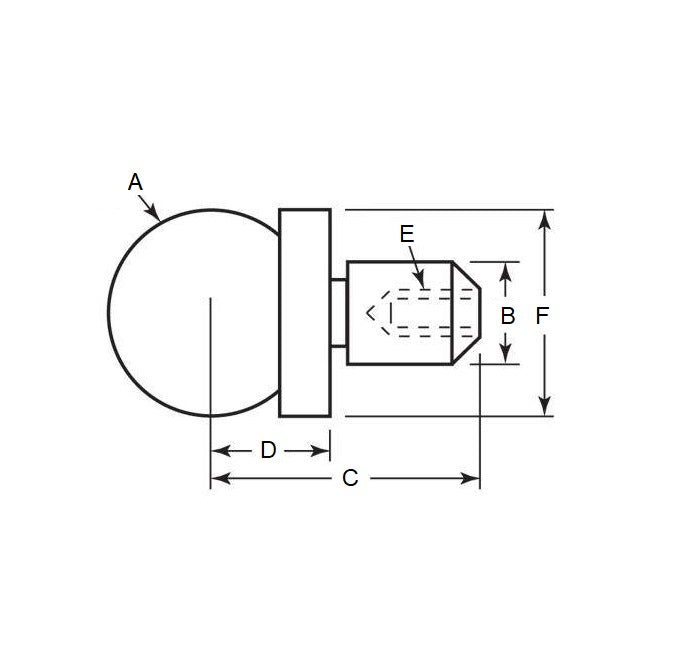

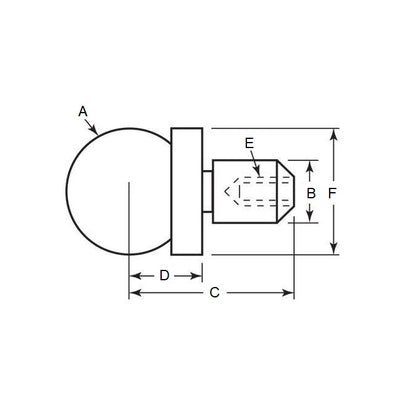

Diameter (A): 15.875mm+ 0.0 / - 0.0051
(15.875mm is 0.625 in.)
Carbon Steel
- Diameter (A): 15.875mm
+ 0.0 / - 0.0051
(15.875mm is 0.625 in.)
- Shank Diameter (B): 9.525mm
+ 0.0 / - 0.0051
(9.525mm is 0.375 in.)
- Base to Centre (C): 36.068mm
+/- 0.0051
(36.068mm is 1.42 in.)
- Shoulder to Centre (D): 11.430mm
- Thread: 10-24 UNC (4.762mm)
- Shoulder Diameter: 15.875mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Reid Tool® PIB-10609
- PIB10609
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BIN01588HSB, BIN01588
