ECL-0080-0090-C (PK-50)

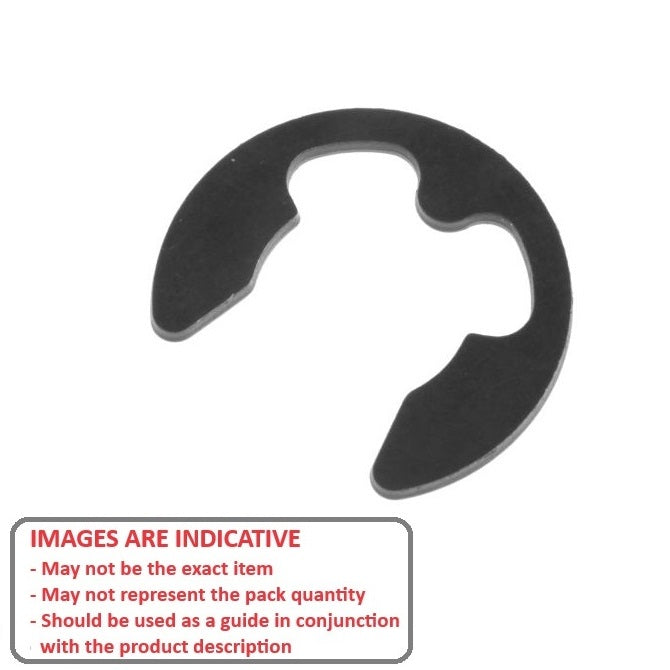

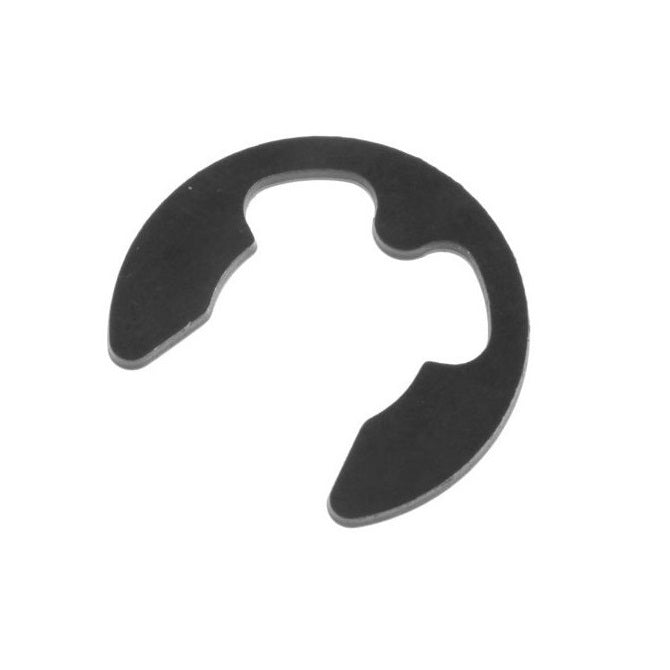

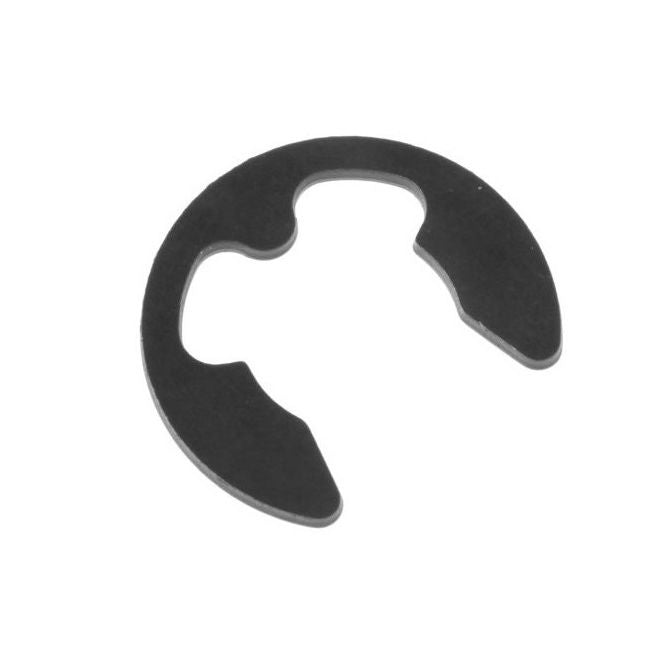

E-Clips Retaining Rings - 9x8x1 mm Basic - Carbon Steel E-Clip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Assortment Kits
E-Clip Applicators
Order 50 or more packs of 50 (2500 pcs)
for $9.45 AUD per 50 pack
Couldn't load pickup availability
9x8x1 mm E-Clips Retaining Rings - Carbon Steel - Sold per pack of 50:
Base Category: Retaining Rings - E-Clips
Top Level Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Product Details
Additional stock available from USA subject to Prior Sale = 10474

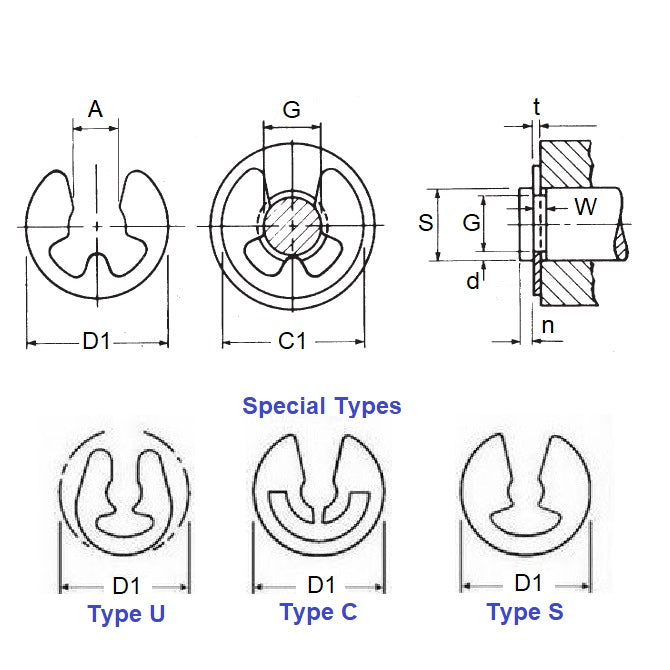

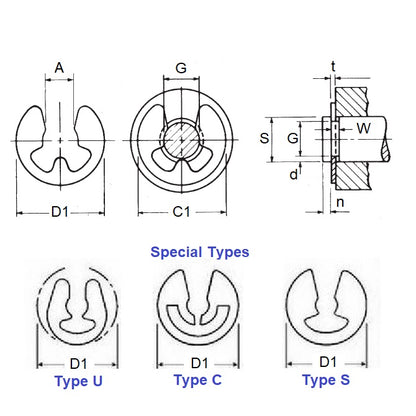

Minimum Rec. Shaft Dia (S): 9.00mm
+ 3.00 / - 0.00
(9.00mm is 0.354 in.)
Carbon Steel
- Minimum Rec. Shaft Dia (S): 9.00mm
+ 3.00 / - 0.00
(9.00mm is 0.354 in.)
- Groove Dia. (Dg): 8.00mm
+ 0.00 / - 0.09
(8.00mm is 0.315 in.)
- Clip Thickness (T): 1.00mm
+/- 0.03
(1.00mm is 0.039 in.)
- Clip OD Loose (D1): 15.60mm
- Groove Width (W): 1.05mm
- Maximum Rec. Shaft Dia (S): 12.00
- Clip OD in groove (C1): 16.30mm
- Loose Clip ID (A): 6.52mm
- Min. Extension (n): 1.80
- Additional Info: RRA-608 Applicator
- Standard: DIN6799
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 98543A116
- Huyett® DE-080
- NoCor® DE-080
- Cirteq RA8.0
- DE080
- D15000080
- D1500-0080
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
ECL00800090C, ECL0080
