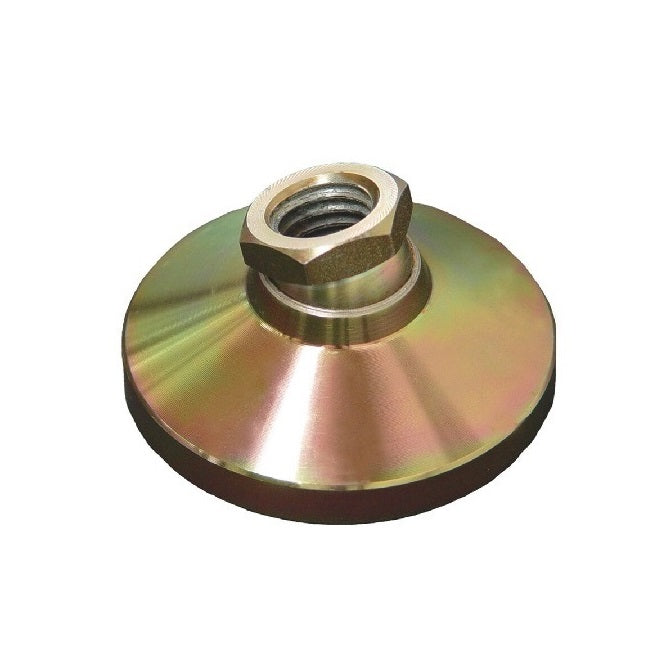

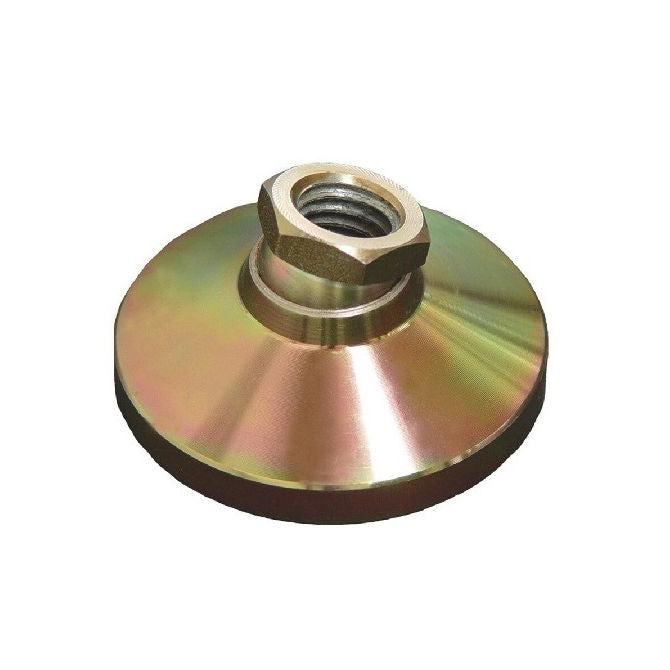

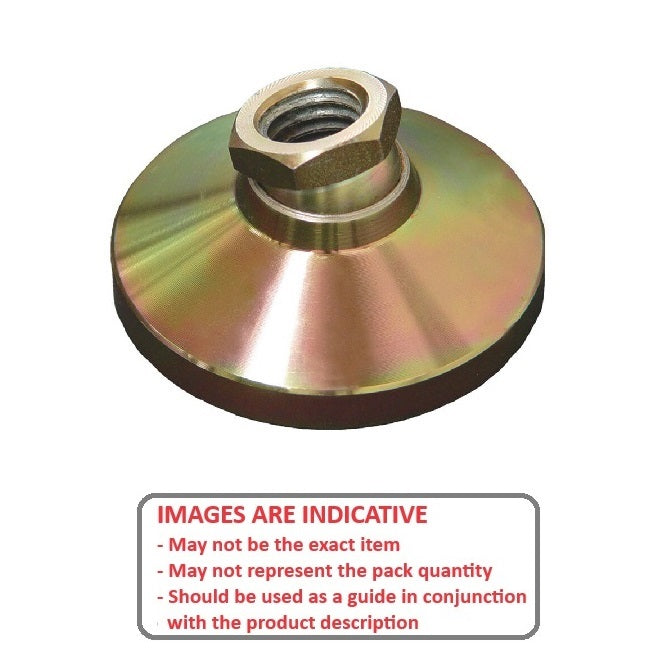

MSF-254C-CGC (Each)
Levelling Socket Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Swivel - Gold Chromate Mount
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more
for $116.63 AUD Each
1-8 UNC (25.4mm) 101.6x47.6 mm Levelling Socket Mounts - Gold Chromate - Sold per Each:
Base Category: Mounts - Levelling Socket
Top Level Category: Mounts - Levelling Socket - Swivel - Standard - Gold Chromate
Product Details
Thread Size (A): 1-8 UNC (25.4mm)Gold Chromate
- Thread Size (A): 1-8 UNC (25.4mm)
- Base Diameter (D): 101.6mm
(101.6mm is 4 in.)
- Foot Height (C): 47.6mm
(47.6mm is 1.874 in.)
- Min. Thread Depth: 20.6mm
- Base Height (E): 10.32mm
- Load Rating: 9980Kg
- Steel
- Finish: Gold Chromate
- Hex Flats (B): 34.93mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Reid Tool® L-4
- L4
- MSF9980254CG
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
MSF254CCGC, MSF254C
