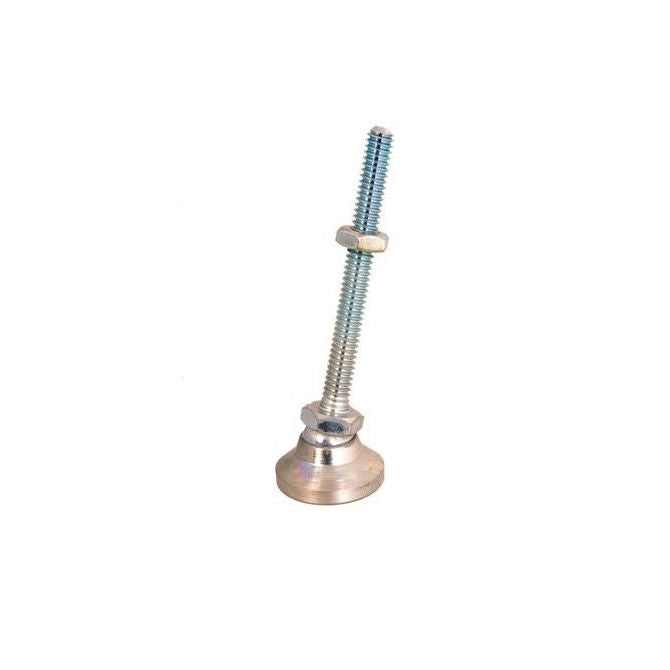

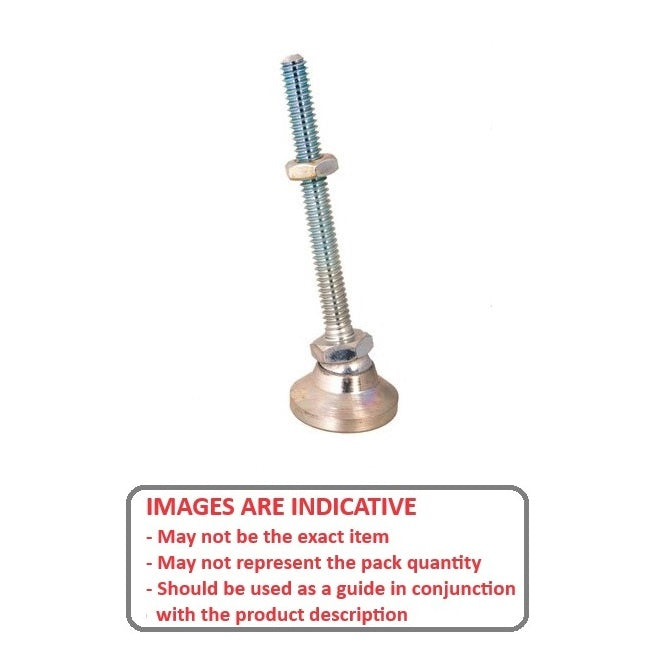

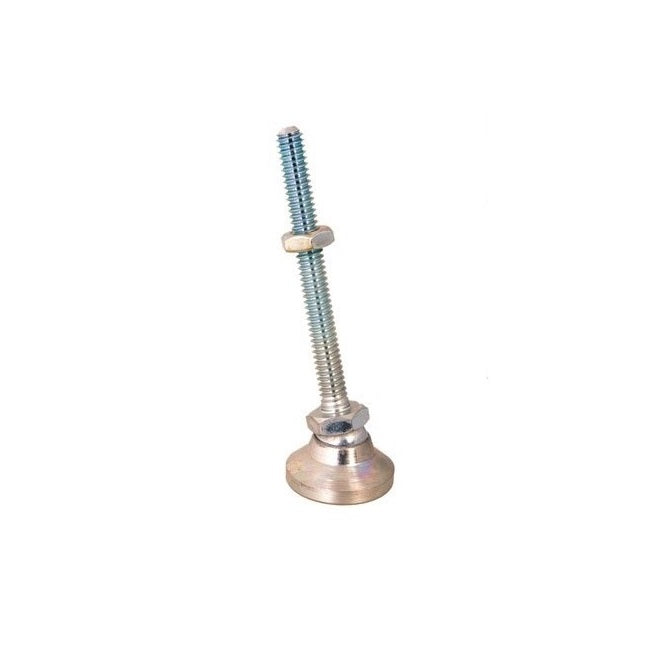

MSM-254C-108-CCC (PK-25)
Levelling Studded Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Swivel - Steel Mount
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more packs of 25 (1250 pcs)
for $4,284.37 AUD per 25 pack
1-8 UNC (25.4mm) 101.6x47.6 mm Levelling Studded Mounts - Steel - Sold per pack of 25:
Base Category: Mounts - Levelling Studded
Top Level Category: Mounts - Levelling Studded - Swivel - Clear Chromate - Standard
Product Details

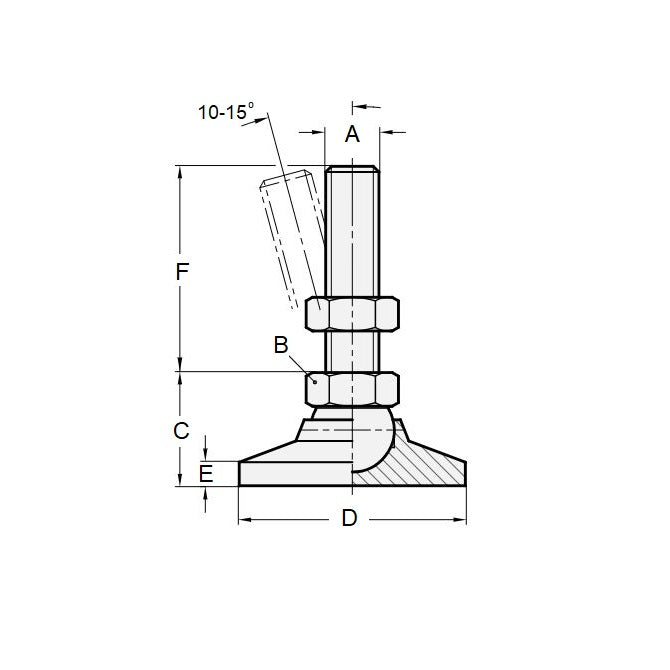

Thread Size (A): 1-8 UNC (25.4mm)Steel
- Thread Size (A): 1-8 UNC (25.4mm)
- Base Diameter (D): 101.6mm
(101.6mm is 4 in.)
- Foot Height (C): 47.6mm
(47.6mm is 1.874 in.)
- Thread Length (F): 108.0mm
- Base Height (E): 10.32mm
- Overall Height: 155.6mm
- Load Rating: 9980Kg
- Finish: Clear Chromate
- Hex Flats (B): 34.925mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Reid Tool® TLS-5
- TLS5
- MSM9980254CCC
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
MSM254C108CCC, MSM254C108
