B-40D-0095-0048-PPB (Each)

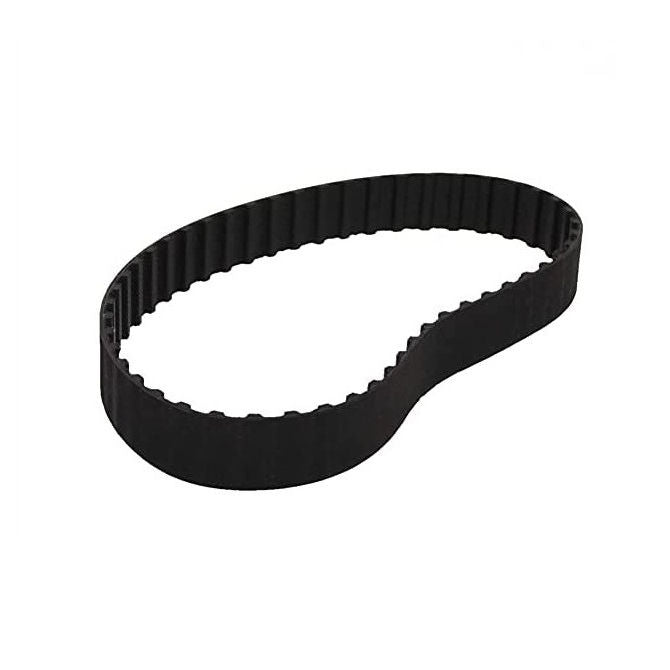

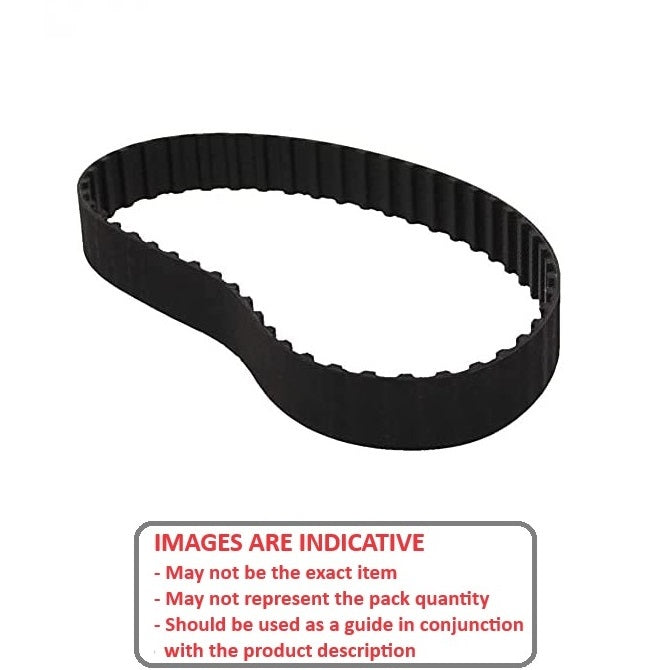

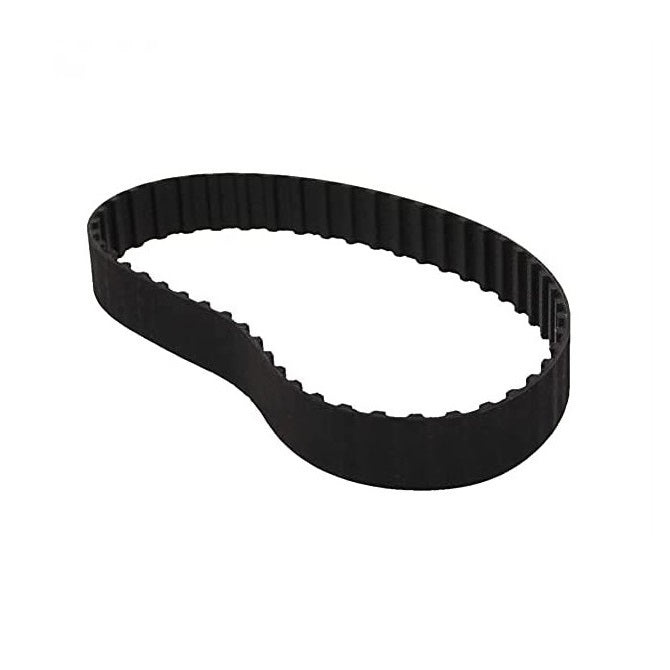

Inch Timing Belts - 95 tooth - 196.935x4.8 mm 2.073mm Pitch 40DP - Polyurethane with Polyester Cords Belt
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Timing Belts Catalogue PDF
Timing Pulleys Catalogue
Order 50 or more
for $4.50 AUD Each
Couldn't load pickup availability
95 tooth - 196.935x4.8 mm Inch Timing Belts - Polyurethane with Polyester Cords - Sold per Each:
Base Category: Belts - Inch Timing
Top Level Category: Belts - Inch Timing - 2.073mm Pitch 40DP - 4.8mm Wide
Product Details
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Number of Teeth: 95
Polyurethane with Polyester Cords
- Number of Teeth: 95
- Length: 196.935mm
(196.935mm is 7.753 in.)
- Width: 4.8mm
(4.8mm is 0.189 in.)
- Reinforcement: Polyester
- Appearance: Black
- Breaking Strength: 283N
- Min Temperature (C): -18Deg C
- Max Temperature (C): 82Deg C
Brand: MBA
Country of Origin: US
Please contact us if you would like a price and delivery for a larger quantity than the available stock.
Product Compliance and Data
Similar to
- Gates® 95LT019UP
- Gates® B40D00950047PPB
- A6R6M095045
- A6R6M0950450
- A6R6-0950180
- A6R60950180
- B50D00950048PPB
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
B40D00950048PPB, B40D0095
