B-L9-0092-0254-NFB (4 Pcs)

Inch Timing Belts - 92 tooth - 876.3x25.4 mm 9.525mm Pitch L - Nylon Covered Neoprene with Fibreglass Cords Belt

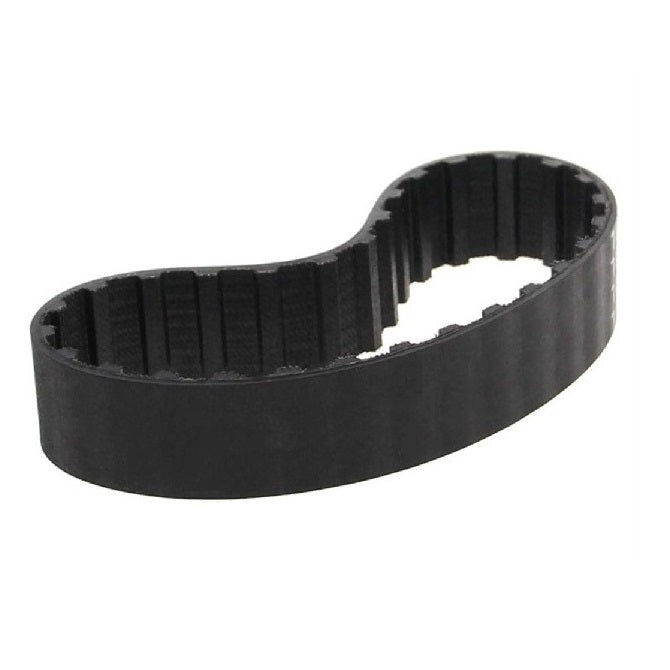

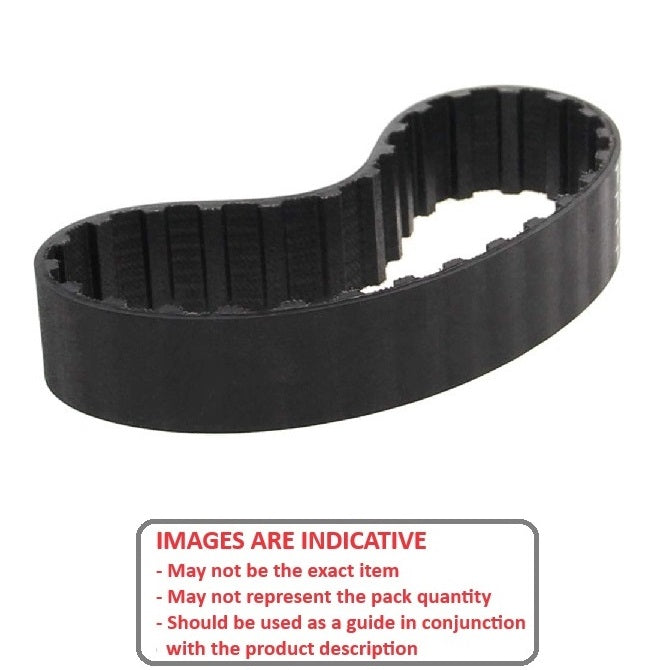

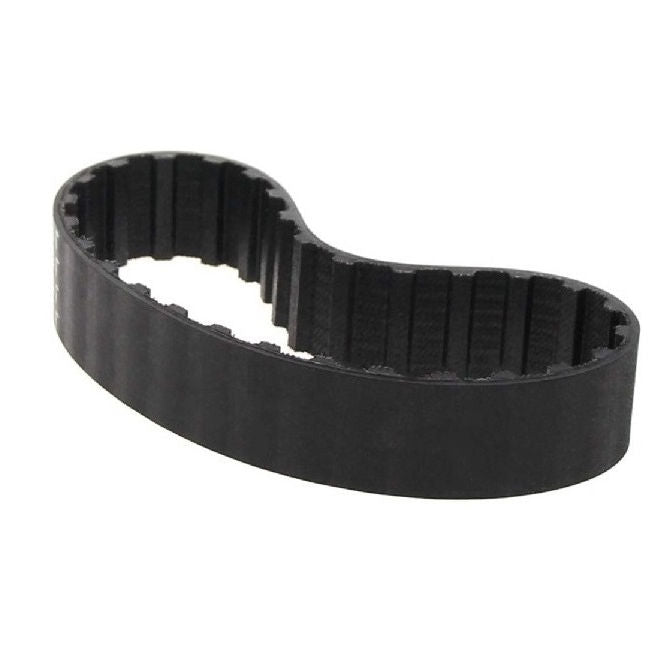

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Inch Timing Belts - 92 tooth - 876.3x25.4 mm - Nylon Covered Neoprene with Fibreglass Cords
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Timing Belts Catalogue PDF
Timing Pulleys Catalogue
Price:
$121.59 AUD
$145.91 AUD $121.59 AUD
per 4
Backorder
Order 50 or more pack (200 pcs) for $109.43 AUD per 4
Backorder now! Backorders for more than the stock quantity are expected before Sep 15, 2025

Base Category: Belts - Inch Timing

Top Level Category: Belts - Inch Timing - 9.525mm Pitch L - 25.4mm Wide - Single Sided

Product Details

Number of Teeth: 92

Nylon Covered Neoprene with Fibreglass Cords
  • Length: 876.3mm
    (876.3mm is 34.5 in.)
  • Width: 25.4mm
    (25.4mm is 1 in.)
  • Reinforcement: Fibreglass
  • Appearance: Black
  • Min Temperature (C): -18Deg C
  • Max Temperature (C): 66Deg C

Brand: MBA
Country of Origin: TW

Product Compliance and Data

Similar to

  • Gates 345L100
  • ALTPART
  • 6484K355
  • Gates BL900920250NF
  • Gates BSF0345L100
  • Misumi C-TBN345L100
  • CTBN345L100

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
