CLP-095-0258-CZ (13 Pcs)

Clevis Pins - 9.53x25.79x31.75 mm Pin Locking - Zinc Plated Low Carbon Steel

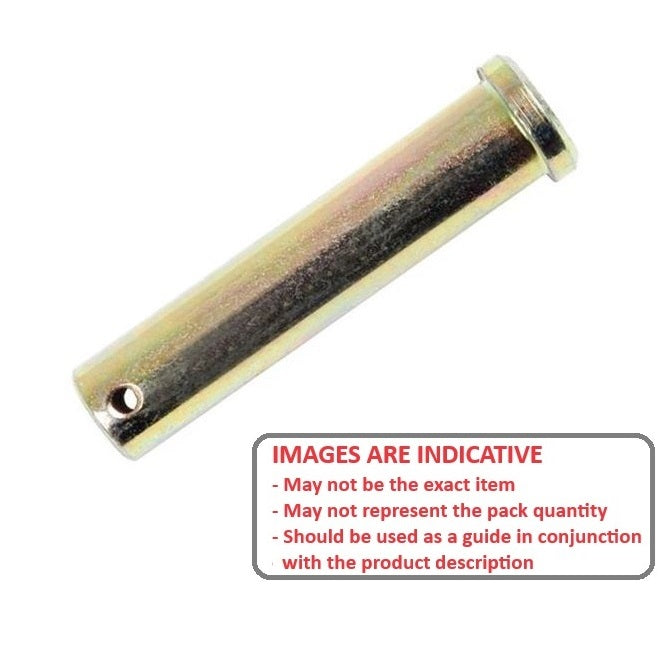

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Clevis Pins - 9.53x25.79x31.75 mm - Zinc Plated Low Carbon Steel
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Master Pins Catalogue PDF
R-Clips
Split Pins
Price:
$14.86 AUD
$17.84 AUD $14.86 AUD
per 13
Backorder
Order 50 or more pack (650 pcs) for $13.37 AUD per 13
Backorder now! Backorders for more than the stock quantity are expected before Sep 22, 2025

Base Category: Pins - Clevis

Top Level Category: Pins - Clevis - Pin Locking - Zinc Plated

Product Details


Additional stock available from USA subject to Prior Sale = 35232

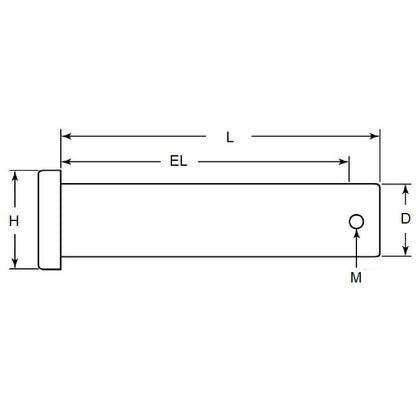

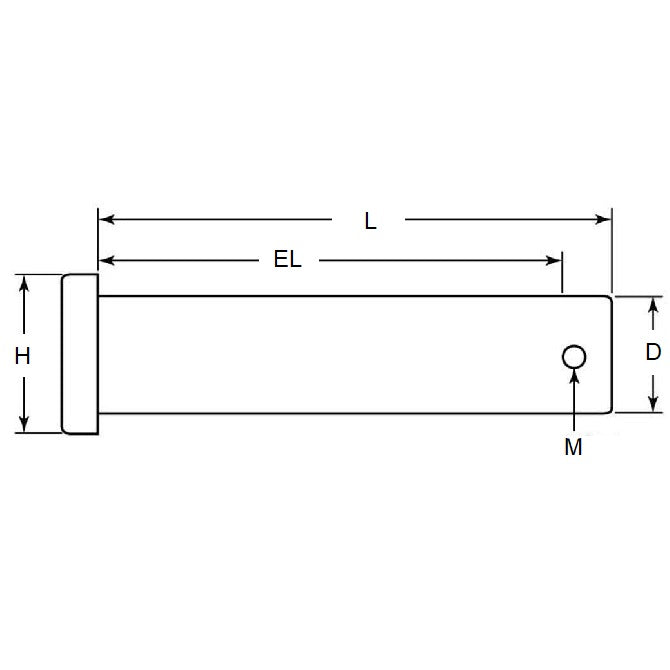

Nominal Pin Diameter (D): 9.53mm
- 0.05 / - 0.18
(9.53mm is 0.375 in.)

Zinc Plated Low Carbon Steel
  • Nominal Pin Diameter (D): 9.53mm
    - 0.05 / - 0.18
    (9.53mm is 0.375 in.)
  • Grip Length (EL): 25.79mm
    + 0.51 / - 0.00
    (25.79mm is 1.015 in.)
  • Nom. Length (L): 31.75mm
    + 0.51 / - 0.00
    (31.75mm is 1.25 in.)
  • Ret. Pin Dia. (M): 2.4mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • ALTPART
  • 97245A174
  • NoCor CLP-0375-1250
  • NoCor CLPZ-0375-1250
  • NoCor CLPZ-0375-1250/B
  • CLPZ03751250
  • CLPZ03751250/B
  • CLP03751250
  • CLP0950258Z

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
