CP-095-095-20-034-J-SPLN-X (Each)

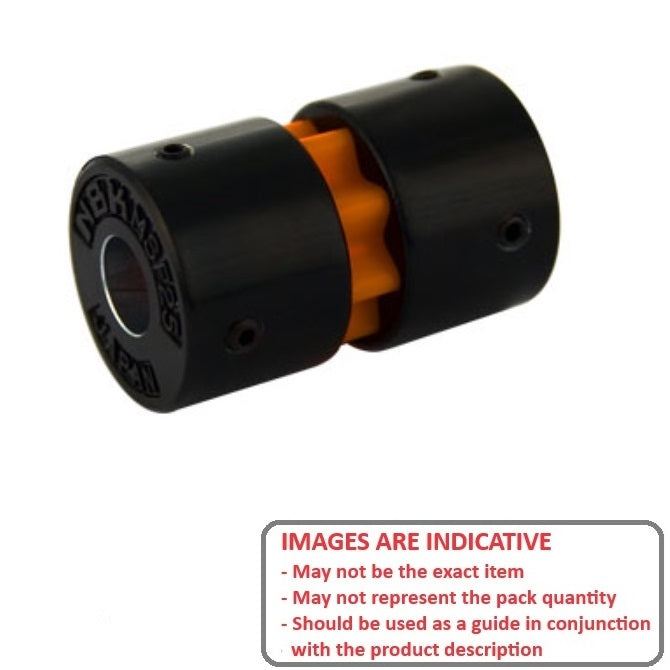

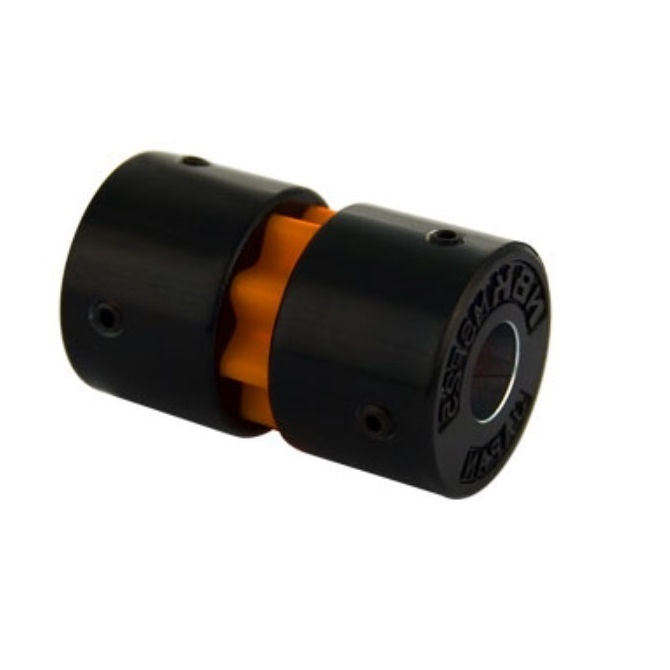

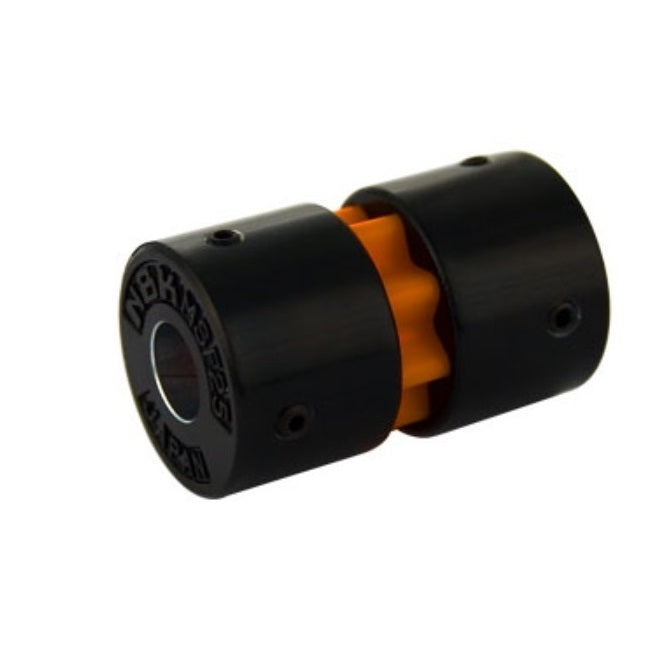

Spline Type Couplings - 9.525x9.525x20 mm Complete - Aluminium and Rubber Coupling
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleCouldn't load pickup availability
3/8x3/8 inch Coupling - 9.525x9.525x20 mm Spline Type Couplings - Aluminium and Rubber - Sold per Each:
Base Category: Couplings - Spline Type
Top Level Category: Couplings - Spline Type - Complete
Product Details
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.

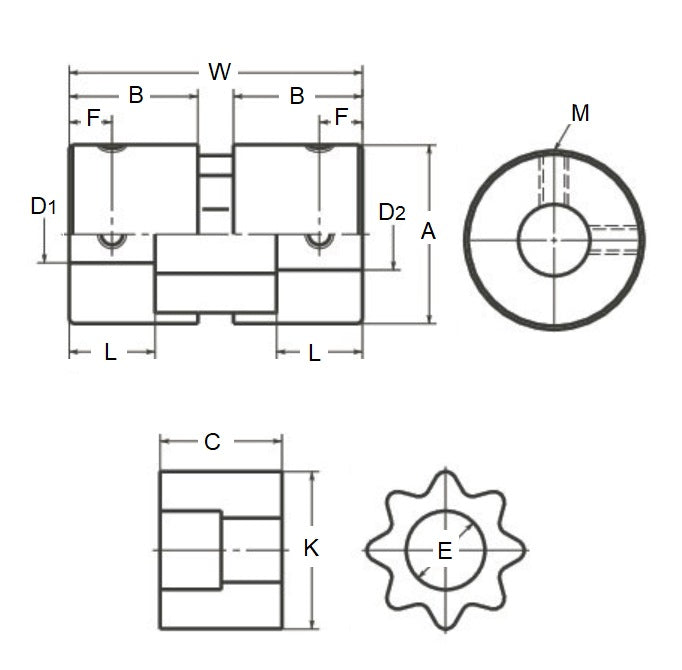

Bore Side A (d): 9.525mm
(9.525mm is 0.375 in.)
Aluminium and Rubber
- Bore Side A (d): 9.525mm
(9.525mm is 0.375 in.)
- Bore Side B (d): 9.525mm
(9.525mm is 0.375 in.)
- Nom. OD (D): 20.0mm
(20.0mm is 0.787 in.)
- Overall Length (L): 34.1mm
- Description: Complete Coupling
- Hub Length: 15.1mm
- Spline Bore (May Vary): 7.9mm
- Rated Torque: 1.5N.m
- Max. Speed: 19000RPM
- Hub Material: Zinc Alloy Die Cast
- Spline Material: Hytrel
Brand: MBA
Country of Origin: US
Please contact us if you would like a price and delivery for a larger quantity than the available stock.
Product Compliance and Data
Similar to
- A5Z29-2012
- A5Z292012
- A 5Z29-2012
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CP09509520034JSPLNX, CP095095
