DS-095-032-MD (Each)

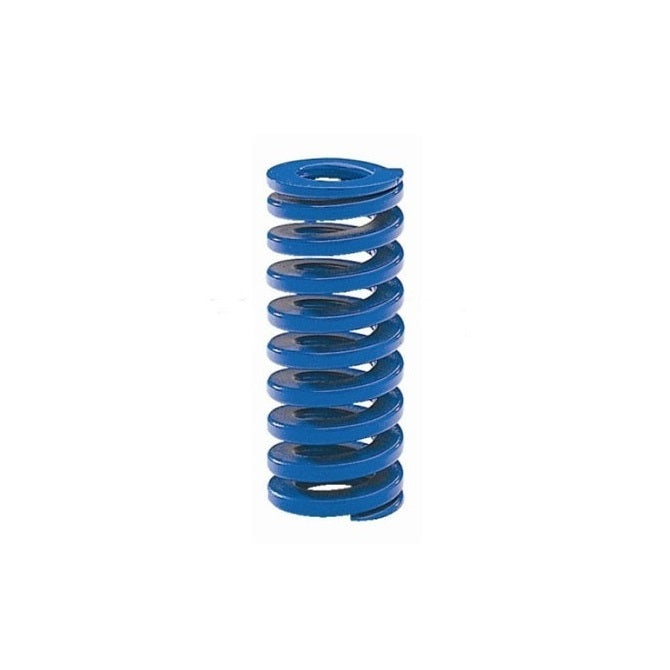

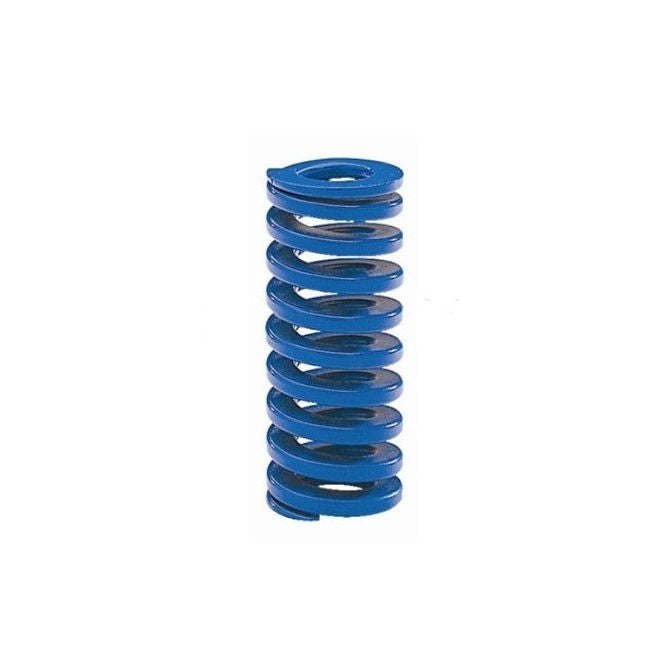

Die Springs - 9.53x4.763x31.75 mm Imperial - Carbon Spring Steel
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Spings Catalogue PDF
Order 50 or more
for $9.13 AUD Each
3/8x3/16x1-1/4 inch Spring - 9.53x4.763x31.75 mm Die Springs - Carbon Spring Steel - Sold per Each:
Base Category: Springs - Die
Top Level Category: Springs - Die - Imperial - Medium Duty - Standard
Product Details

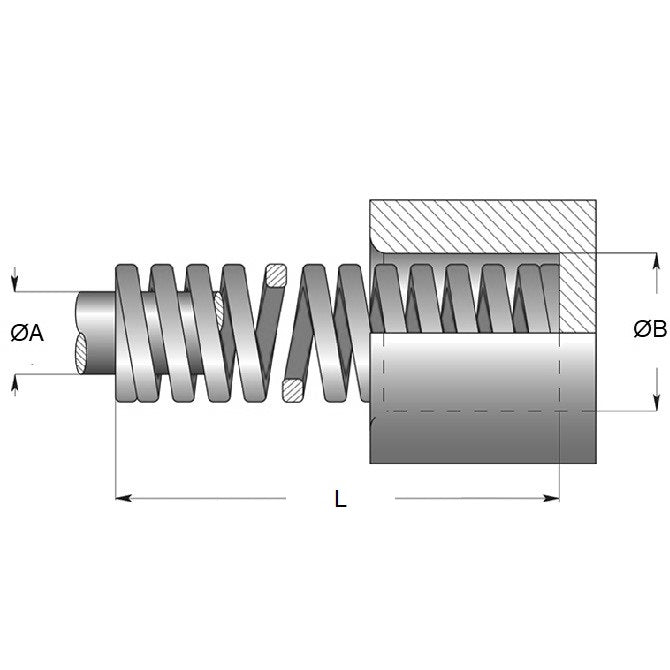

Hole Diameter (B): 9.53mm(9.53mm is 0.375 in.)
Carbon Spring Steel
- Hole Diameter (B): 9.53mm
(9.53mm is 0.375 in.)
- Rod Diameter (A): 4.763mm
(4.763mm is 0.188 in.)
- Length (L): 31.750mm
(31.750mm is 1.25 in.)
- Optimum Deflection: 25Percent
- Optimum Deflection: 7.9mm
- Load at Optimal: 69.5N
- Maximum Deflection: 40Percent
- Maximum Deflection: 12.7mm
- Load at Maximum: 111.8N
- Spring Rate: 8.8N/mm
- Colour Code: Blue
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Reid Tool® JS-102
- JS102
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
DS095032MD, DS095
