BLTO-00953-CS-1SP (Each)

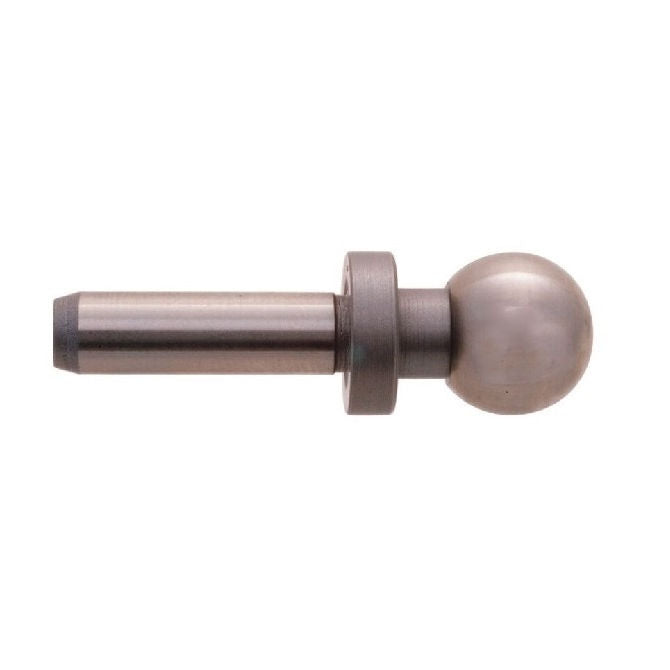

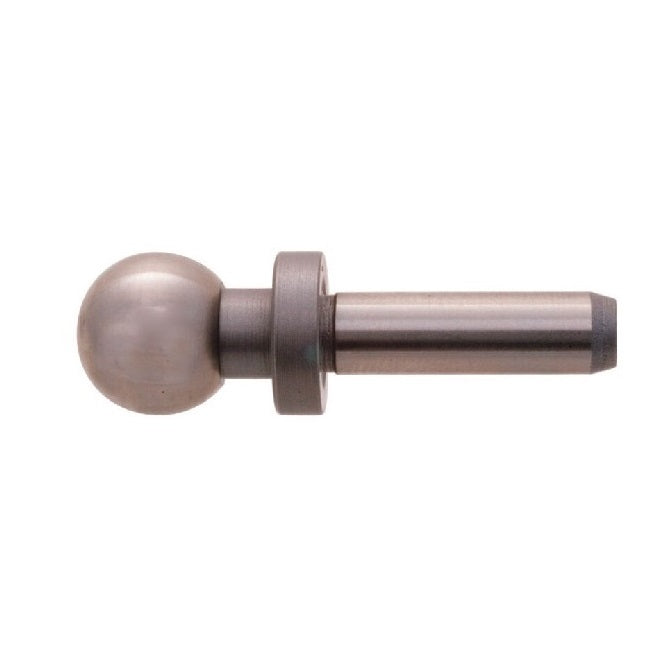

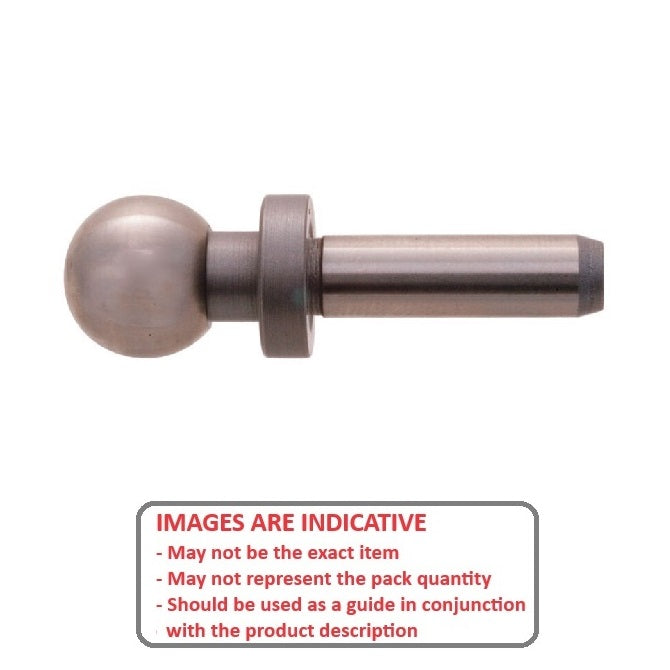

Tooling Balls - 9.525x4.763x19.05 mm One Piece - Carbon Steel Ball
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Balls Master Catalogue PDF
Order 50 or more
for $80.23 AUD Each
3/8x3/16x3/4 inch Ball - 9.525x4.763x19.05 mm Tooling Balls - Carbon Steel - Sold per Each:
Base Category: Balls - Tooling
Top Level Category: Balls - Tooling - One Piece - Shoulder - Press Fit - Steel
Product Details

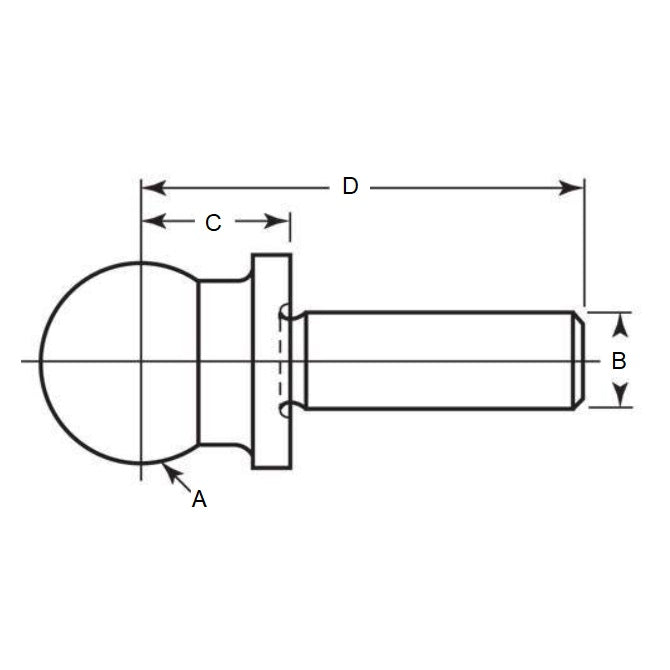

Diameter (A): 9.525mm+/- 0.0051
(9.525mm is 0.375 in.)
Carbon Steel
- Diameter (A): 9.525mm
+/- 0.0051
(9.525mm is 0.375 in.)
- Shank Diameter (B): 4.763mm
+ 0.0000 / - 0.0076
(4.763mm is 0.188 in.)
- Base to Centre (C): 19.050mm
+/- 0.0051
(19.050mm is 0.75 in.)
- Shoulder to Centre (D): 7.620mm
Brand: MBA
Country of Origin: DE
Product Compliance and Data
Similar to
- Reid Tool® STB-26811
- STB26811
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BLTO00953CS1SP, BLTO00953CS
