SBS2-375

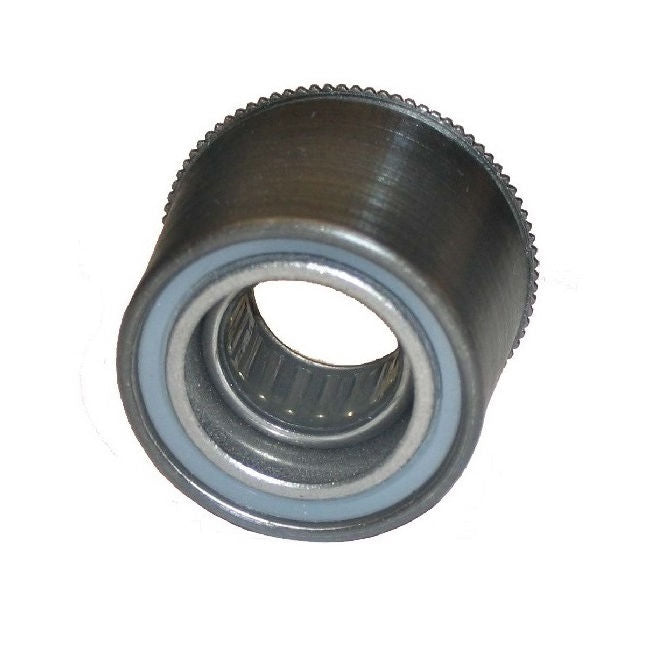

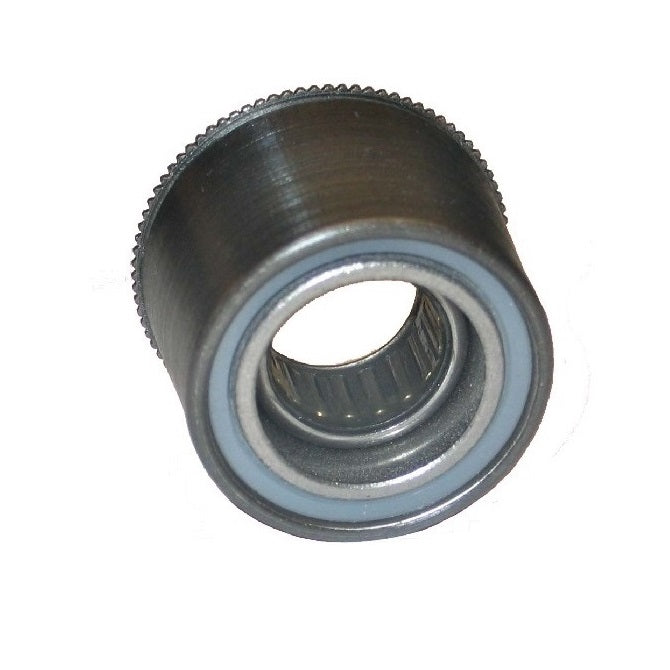

Self Clinching Bearings - 9.525 23.977 to 24.053 9.53 mm Self Aligning - Chrome Steel in Carbon Steel Bearing

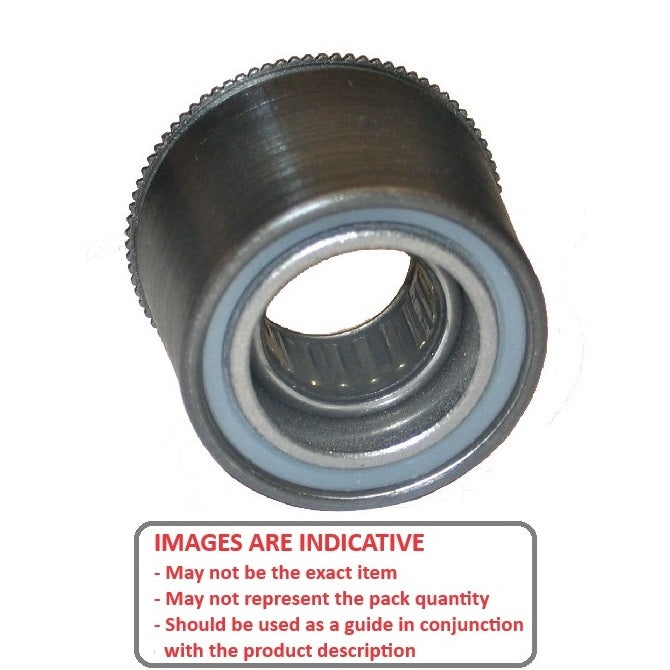

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Self Clinching Bearings - 9.525 23.977 to 24.053 9.53 mm - Chrome Steel in Carbon Steel
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 5 available now
Only 5 may be ordered online. If you need a large quantity, please contact us.

Base Category: Bearings - Self Clinching

Top Level Category: Bearings - Self Clinching - Self Aligning - Miniature

Product Details


Deleted Item. Available while stocks last.

Nominal Shaft Size: 9.525mm
(9.525mm is 0.375 in.)

Chrome Steel in Carbon Steel
  • Nominal Shaft Size: 9.525mm
    (9.525mm is 0.375 in.)

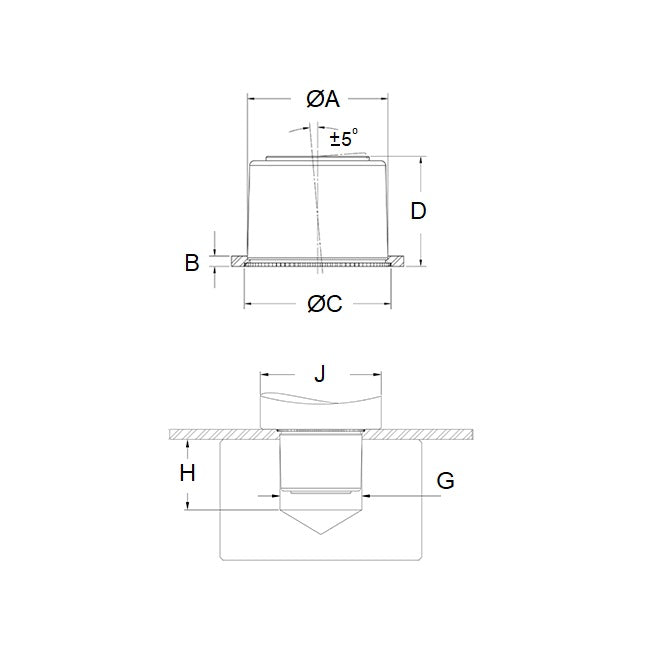

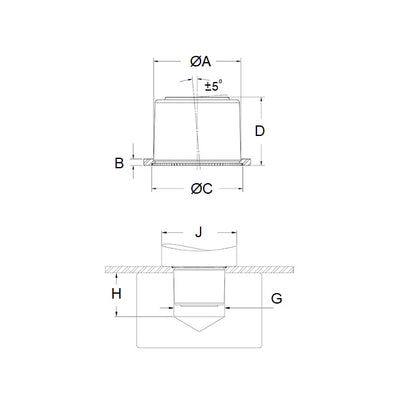

  • Min. Panel Hole (A): 23.977 to 24.053mm
    (23.977 to 24.053mm is 0.944 in.)
  • Overall Width (D): 9.53mm
    (9.53mm is 0.375 in.)
  • Max Speed: 36000RPM
  • Clinching Diameter (C): 25.4mm
  • Max. Radial Dynamic Load: 160kgf
  • Radial Static Load Capacity: 80kgf

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

Similar to

  • ALTPART
  • 1437N15

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
