RPO-094-096-SP15 (PK-10)

Name: Push On Retaining Rings - 9.42x9.63x16 mm - Stainless Steel Grade PH15-7-17 Ring (Sold Per PK-10) - - RPO-094-096-SP15
Brand: MBA
SKU: RPO094096SP15
Price: 13.77 AUD
Availability: InStock

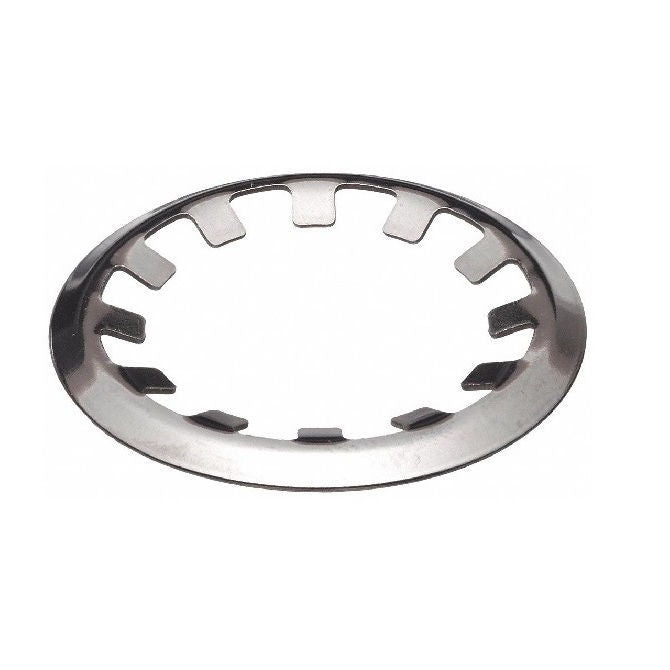

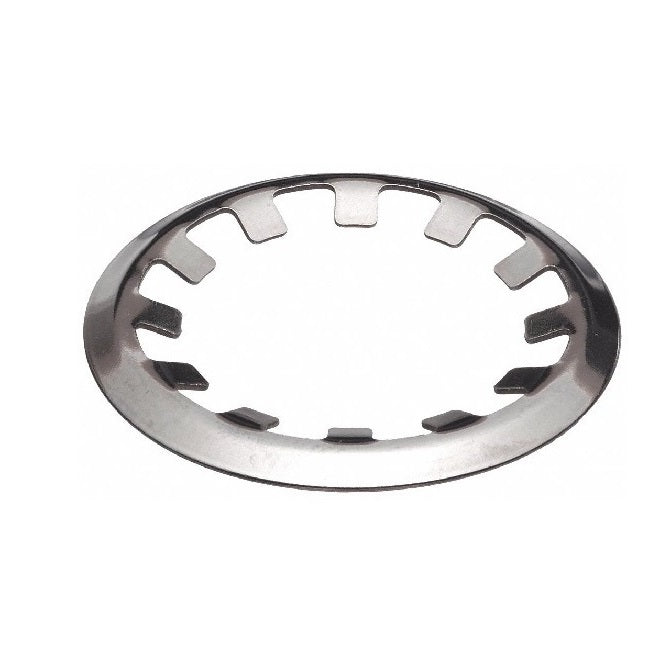

Push On Retaining Rings - 9.42x9.63x16 mm - Stainless Steel Grade PH15-7-17 Ring

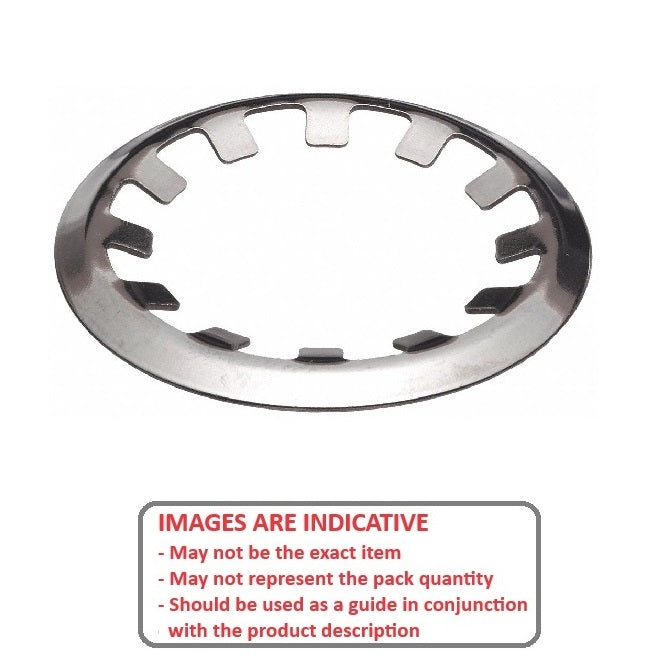

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Retaining Rings - Push On - Stainless Steel

Price:

$13.77 AUD

Priced, Stocked and Sold Per 10 Units

Excludes GST and overseas Taxes & Duties

Qty: 10 packs (100 pcs) available now

Order 50 or more packs (500 pcs)
for $12.39 AUD per 10

Product Details

Additional stock available from USA subject to Prior Sale = 2458

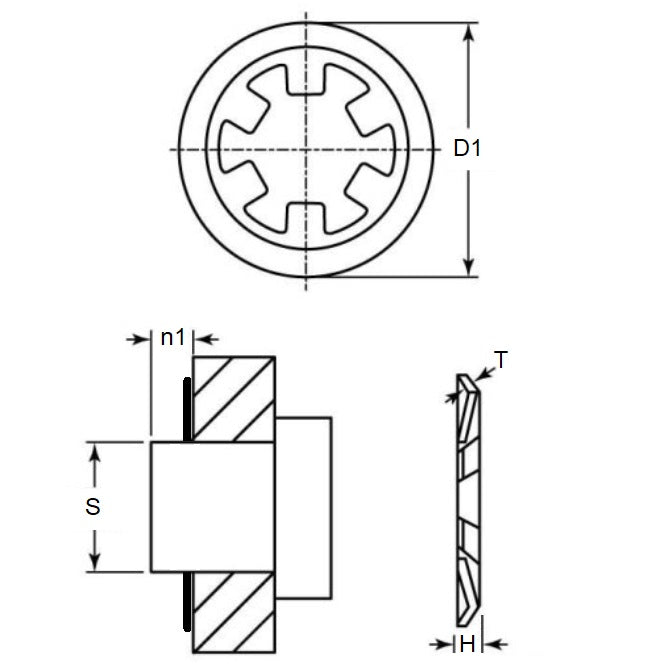

Min shaft size (s1): 9.42mm
_{(9.42mm is 0.371 in.)}

Stainless Steel Grade PH15-7-17

Min shaft size (s1): 9.42mm
_{(9.42mm is 0.371 in.)}
Max Shaft Size (s2): 9.63mm
_{(9.63mm is 0.379 in.)}
Outside diameter (D1): 16.00mm
_{(16.00mm is 0.63 in.)}
Min shaft extension (n1): 1.88mm
Material Thickness (t): 0.38mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Waldes® 5115-037-SS
Huyett® TX-037-SS
NoCor® TX-037-SS
Rotor Clip® TX-037-SS
TX037SS
N1465037SS
N1465-037-SS
5115037SS

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
