CCI-00800-C (PK-50)

Name: Internal Retaining Rings - 8x0.8x8.4 mm Circlips - Carbon Steel Circlip (Sold Per PK-50) - - CCI-00800-C
Brand: MBA
SKU: CCI00800C
Price: 3.05 AUD
Availability: InStock

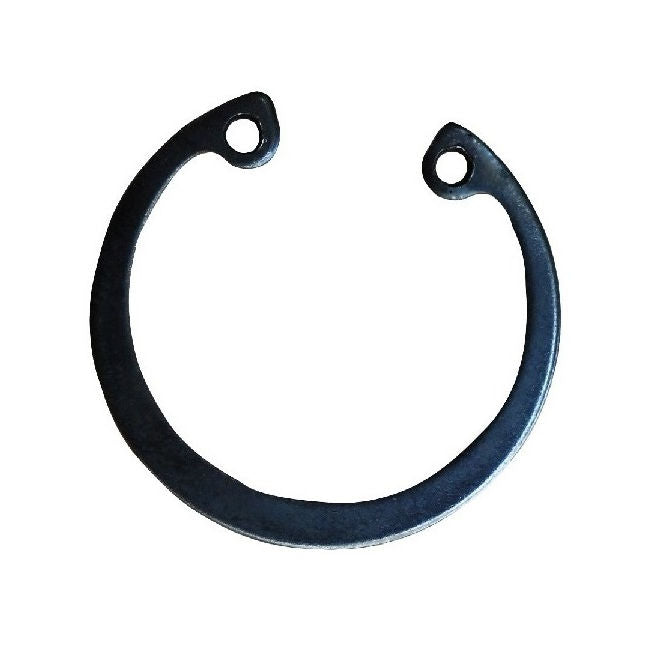

Internal Retaining Rings - 8x0.8x8.4 mm Circlips - Carbon Steel Circlip

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

Price:

$3.05 AUD

~~$5.74 AUD~~ $3.05 AUD

Priced, Stocked and Sold Per 50 Units

Excludes GST and overseas Taxes & Duties

Qty: 373 available now
Order 50 or more for $2.75 AUD

Product Details

Additional stock available from USA subject to Prior Sale = 3607

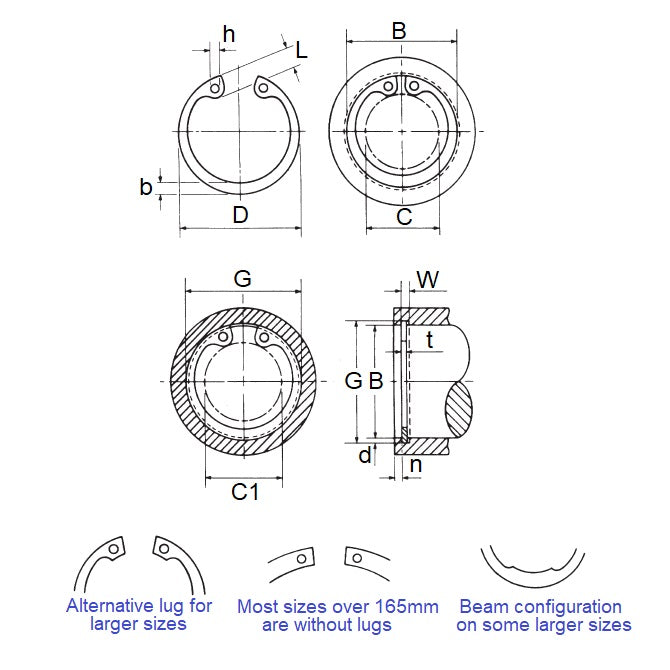

Housing Bore (B): 8.00mm
_{(8.00mm is 0.315 in.)}

Carbon Steel

Housing Bore (B): 8.00mm
_{(8.00mm is 0.315 in.)}
Clip Thickness (T): 0.80mm
_{+ 0.09 / - 0.00}
_{(0.80mm is 0.031 in.)}
Groove Dia. (Dg): 8.40mm
_{+ 0.00 / - 0.05}
_{(8.40mm is 0.331 in.)}
Approx. Loose Circlip OD (Dr): 8.70mm
_{+ 0.36 / - 0.10}
Groove Width (W): 0.90mm
_{+ 0.05 / - 0.00}
Clearance in Bore (C): 3.00mm
Clearance in Groove (C1): 3.60mm
Min. Lug Diameter (h): 1.00mm
Min. Extension (n): 0.60
Standard: DIN472

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Ellison 472-008
ALTPART
98455A108
Bossard BN-822-008
Waldes D1300-008
NoCor DHO-008
Rotor Clip DHO-008
Seeger J-008
Seeger J8
Seeger J8-BLS
Seeger J8X0.8
Seeger NZT.J8
DHO008
472008
MD0472MQB008
13000080
1300-0080APP
13000080APP
J008
J8BLS
BN822008
CCI00800C
D1300008
D1300-0080
D13000080APP
D1300-0080APP

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
