PSP-080-045-C (2 Pcs)

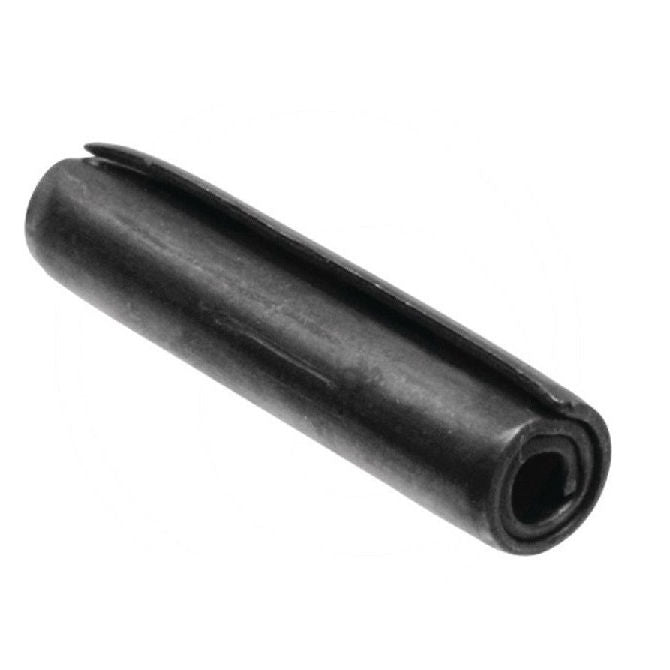

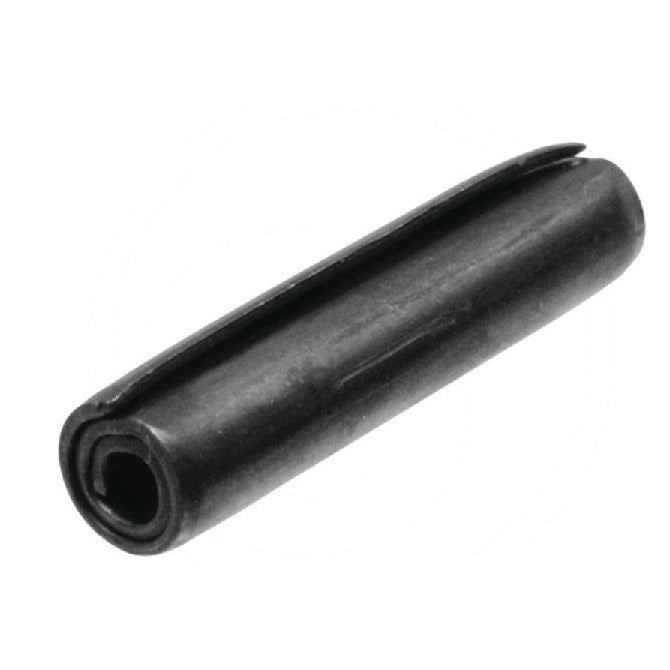

Coiled Pins - 8x45 - 8.00 - 8.15 - High Carbon Steel

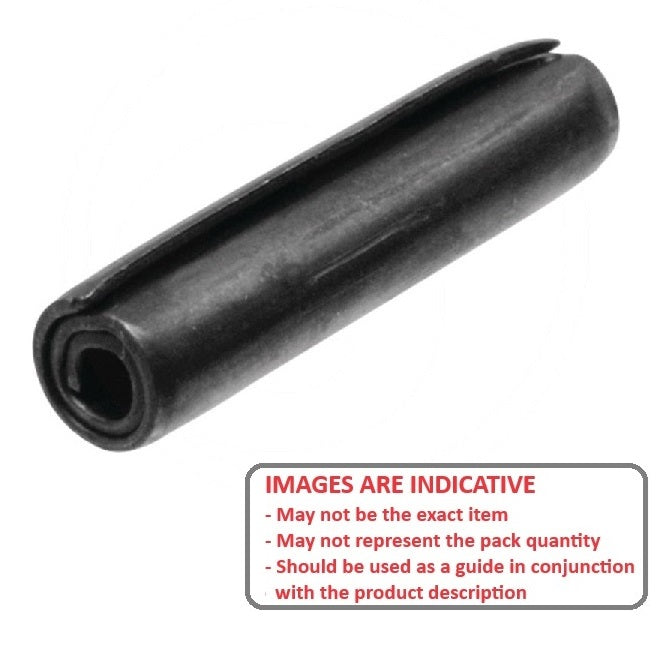

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Coiled Pins - 8x45 - 8.00 - 8.15 - Carbon Steel - High Carbon
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Collection, Retail, Distributors, Wholesale Additional resources:
Master Pins Catalogue PDF
Roll Pins
Price:
$5.41 AUD
$5.41 AUD
per 2
Qty: 38 packs (76 pcs) available now
Order 50 or more packs (100 pcs) for $4.87 AUD per 2
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Aug 07, 2025

Base Category: Pins - Coiled

Top Level Category: Pins - Coiled - Steel - Standard Duty

Product Details:

Additional stock available from USA subject to Prior Sale = 356


Nom. Hole Diameter: 8.00mm
(8.00mm is 0.315 in.)

High Carbon Steel
  • Length: 45.00mm
    +/- 0.50
    (45.00mm is 1.772 in.)
  • Drill Size: 8.00 - 8.15mm
    (8.00 - 8.15mm is 0.315 in.)
  • Loose Diameter: 8.30 - 8.63mm
  • ISO: Standard Duty ISO8750 / ASME B18.8.3M
  • Hardness: RC 46-53 (HV 420 to 545)
  • Double Shear Strength Min.: 39Kn

Brand: MBA
Country of Origin: US

Alternative Parts Include: 91612A248, SPCM-080-045, SPCM080045, SEP845, SEP8-45, ALTPART, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
