T-0080-0160-G-BR (Each)

Thrust Ball Bearings - 8x16x5 mm / 8.2 mm Grooved - Chrome Steel Bearing

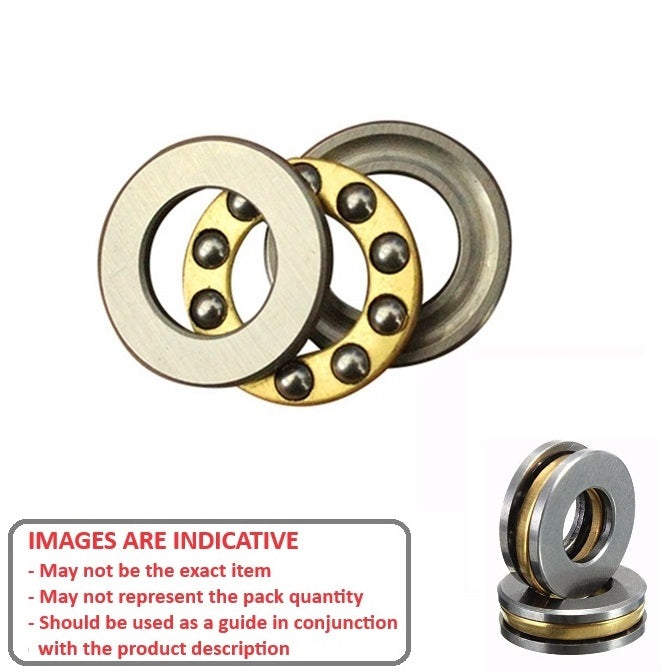

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Thrust Ball Bearings - 8x16x5 mm / 8.2 mm Grooved - Chrome Steel
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Thrust Bearings PDF Catalogue
Shafting
Price:
$31.77 AUD
$38.13 AUD $31.77 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder

Order 50 or more
for $28.59 AUD Each
Backorder now! Backorders are expected before Jul 13, 2026

Base Category: Bearings - Thrust Ball

Top Level Category: Bearings - Thrust Ball - Grooved - Chrome Steel

Product Details

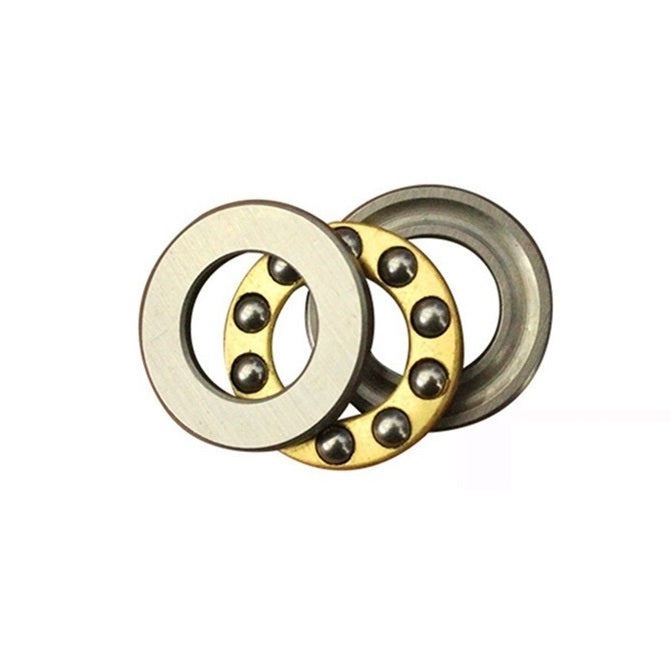

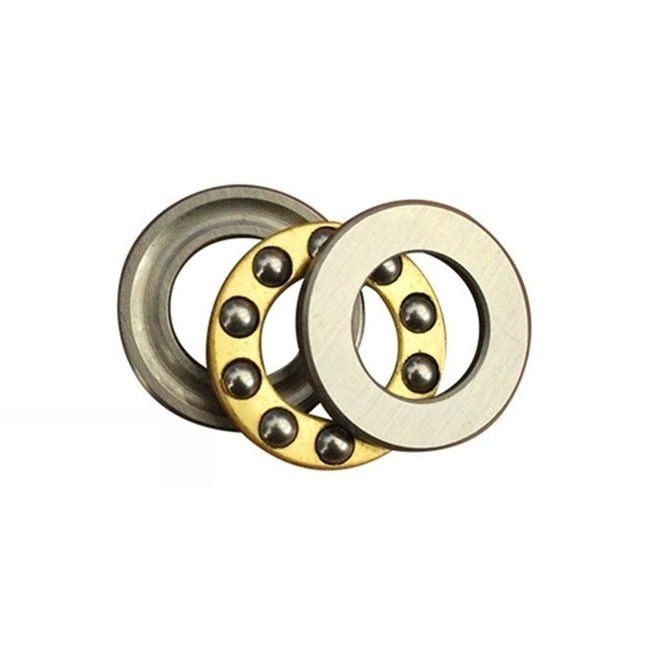

Thrust bearing with 2 Grooved Washers and retainerd Balls

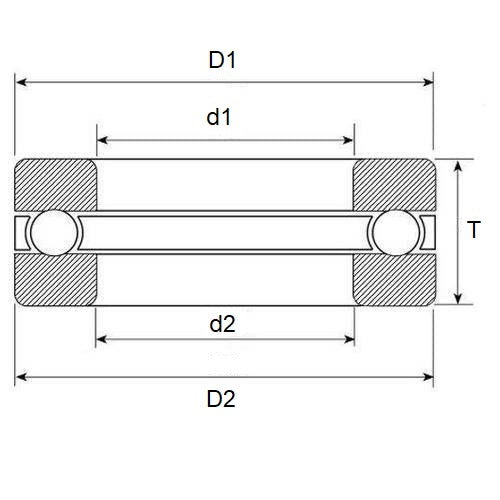

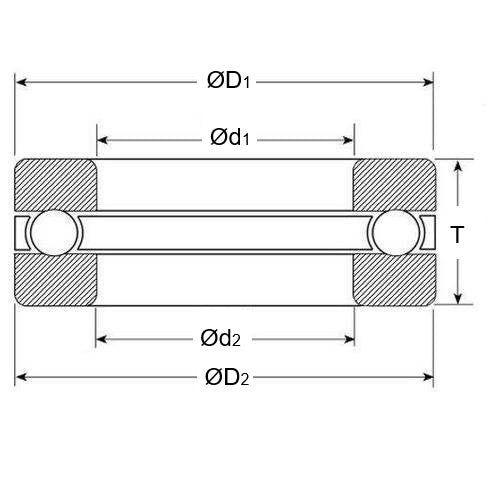

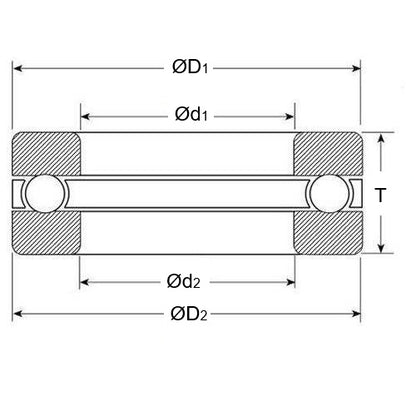

Shaft Diameter (d1): 8.000mm
(8.000mm is 0.315 in.)

Chrome Steel
  • Shaft Diameter (d1): 8.000mm
    (8.000mm is 0.315 in.)
  • O.D. (D1): 16.000mm
    (16.000mm is 0.63 in.)
  • Thickness (T): 5.000mm
    (5.000mm is 0.197 in.)
  • Bore (d2): 8.200mm
  • OD (D2): 16.000mm
  • Dynamic Load Capacity: 391kgf
  • Cage Type: Brass

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Kyosho® 7030
  • Nachi® 7030
  • ALTPART
  • 7806K63
  • Nachi® 8TAM16
  • TSK H1114
  • F8-16M

Used for

  • RC Helicopter Parts
  • Joker® - CX - Thrust Bearing
  • JR - Ergo 60 - Thrust Bearing
  • JR - Vigor CS - Thrust Bearing
  • Kalt® - Cyclone II - Thrust Bearing
  • Kalt® - Cyclone II - Thrust Bearing 8-16-5mm
  • Kyosho® - CONCEPT 60 - Replacement Thrust Bearing
  • Kyosho® - CONCEPT 60 - Thrust Bearing
  • Kyosho® - CONCEPT 60 R - 17 Thrust Bearing
  • Kyosho® - CONCEPT 60 SR - Thrust Bearing
  • Mikado® - Logo 20 - Thrust Bearing
  • Schluter® - Futura SS - Thrust Bearing
  • Synergy® - N9 - Thrust Bearing
  • Thunder Tiger® - Raptor 60 V2 - Replacement Thrust Bearing
  • Thunder Tiger® - Raptor 90 SE - Replacement Thrust Bearing
  • TSK - Miscellaneous Parts - H1114 Thrust Bearing
    We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
