BF0080-0100-0055-S6 (Each)

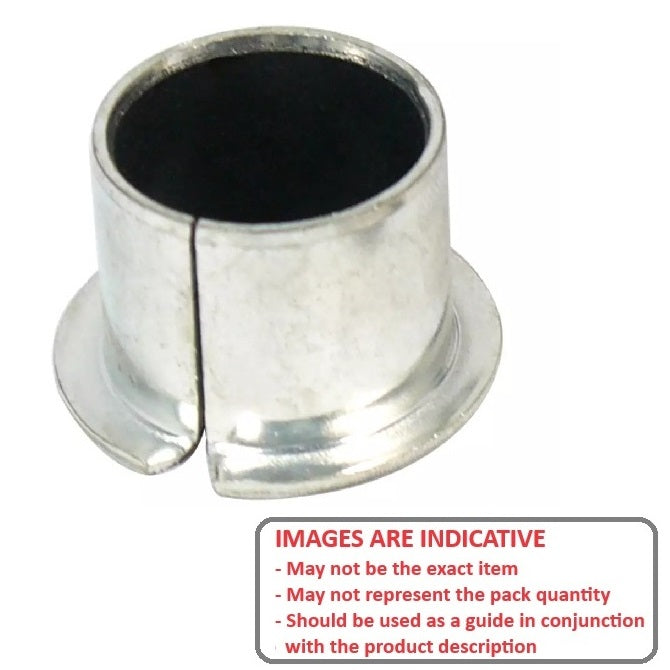

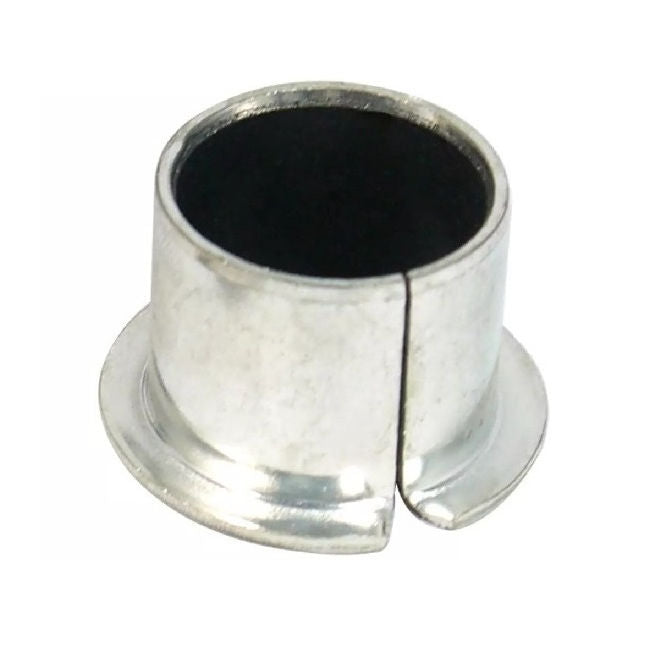

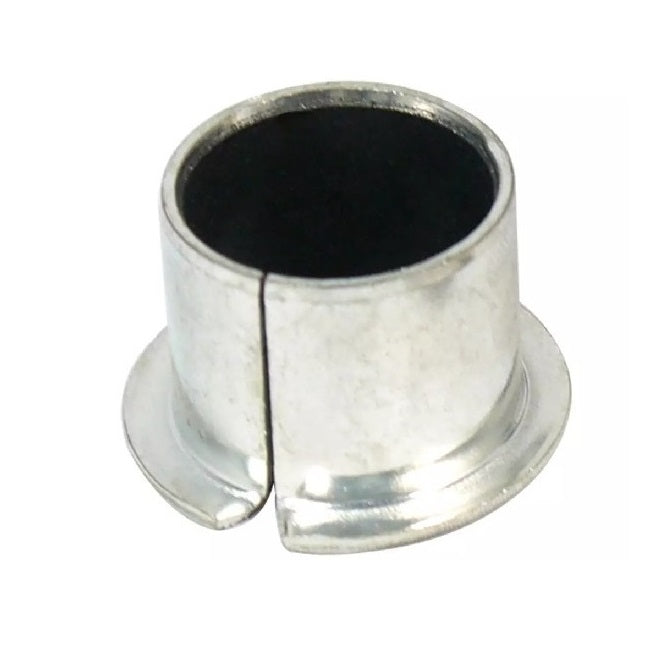

Flanged Bushes - 8x10x5.5 mm Split - Stainless Steel with PTFE Bush
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Bushes PDF Catalogue
Order 50 or more
for $3.65 AUD Each
Couldn't load pickup availability
8x10x5.5 mm Flanged Bushes - Stainless Steel with PTFE - Sold per Each:
Base Category: Bushes - Flanged
Top Level Category: Bushes - Flanged - Split - Stainless Steel and PTFE
Product Details

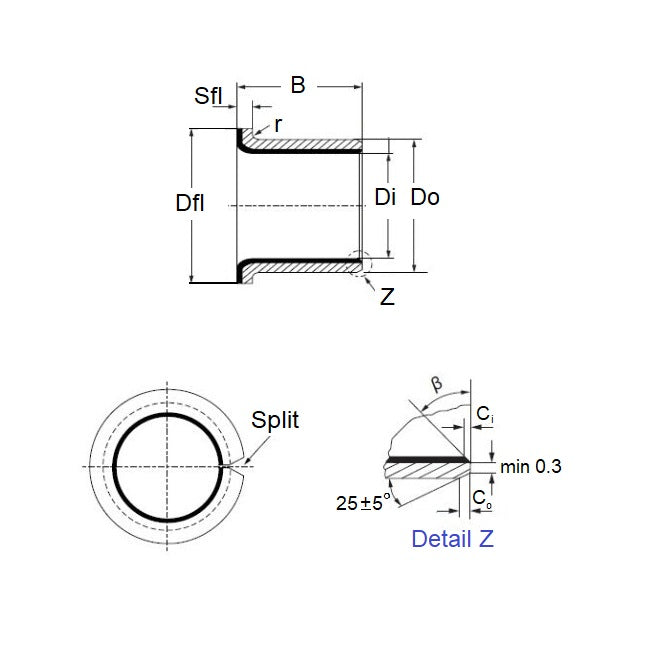

Nominal Inside Diameter (d): 8.000mm- 0.000 / - 0.028
(8.000mm is 0.315 in.)
Stainless Steel with PTFE
- Nominal Inside Diameter (d): 8.000mm
- 0.000 / - 0.028
(8.000mm is 0.315 in.)
- Nominal Outside Diameter (D): 10.000mm
+ 0.015 / - 0.000
(10.000mm is 0.394 in.)
- Length (s): 5.500mm
+ 0.25 / - 0.25
(5.500mm is 0.217 in.)
- Flange OD (Dfl): 15.00mm
+/- 0.500
- Flange Thickness (S1): 1.00mm
+/- 0.050
Brand: MBA
Country of Origin: TW
Product Compliance and Data
Similar to
- Glacier® SF-0805.5F-1S316
- SF08055F1S316
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BF008001000055S6, BF008001000055
