CCI-08800-C (125 Pcs)

Name: CCI-08800-C (125 Pack) - Internal Retaining Rings - 88x3x91.5 mm Circlips - Carbon Steel Circlip
Brand: MBA
SKU: CCI08800C
Price: 446.86 AUD
Availability: BackOrder

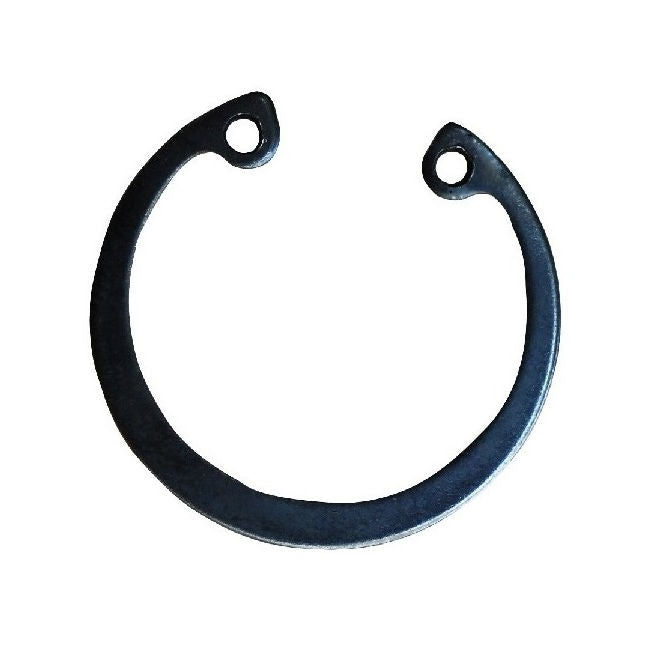

Internal Retaining Rings - 88x3x91.5 mm Circlips - Carbon Steel Circlip

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

Price:

$446.86 AUD

~~$536.24 AUD~~ $446.86 AUD

125 Per Sell Unit

Excludes GST and overseas Taxes & Duties

Backorder
Order 50 or more for $402.17 AUD

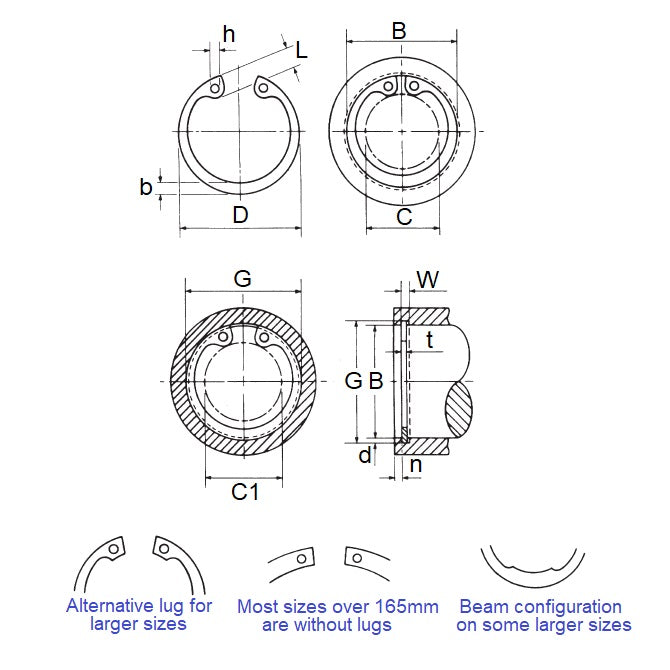

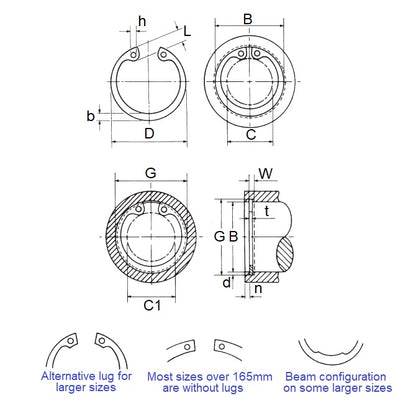

Product Details

Housing Bore (B): 88.00mm
_{(88.00mm is 3.465 in.)}

Carbon Steel

Housing Bore (B): 88.00mm
_{(88.00mm is 3.465 in.)}
Clip Thickness (T): 3.00mm
_{+ 0.35 / - 0.00}
_{(3.00mm is 0.118 in.)}
Groove Dia. (Dg): 91.50mm
_{+ 0.00 / - 0.08}
_{(91.50mm is 3.602 in.)}
Approx. Loose Circlip OD (Dr): 93.50mm
_{+ 1.30 / - 0.54}
Groove Width (W): 3.15mm
_{+ 0.13 / - 0.00}
Clearance in Bore (C): 69.90mm
Clearance in Groove (C1): 74.30mm
Min. Lug Diameter (h): 3.50mm
Min. Extension (n): 5.30
Standard: DIN472

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Ellison 472-088
ALTPART
98455A578
Bossard BN-822-088
Waldes D1300-088
NoCor DHO-088
Rotor Clip DHO-088
Seeger J-088
Seeger J88-S
Seeger J88X3
BN822088
1300-0880APP
13000880APP
J088
J88S
472088
D1300-0880APP
D13000880APP
DHO088

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
