MBN2-0885-43-1590 (Each)
Base Neoprene Style 2 Mounts - 884.5 kg - lbs - E 158.75 mm - Neoprene Rubber Mount
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleCylindrical Bobbin Mounts PDF Quick Guide
Order 50 or more
for $113.45 AUD Each
884.5 kg (lbs) E 158.75 mm Base Neoprene Style 2 Mounts - Neoprene Rubber - Sold per Each:
Base Category: Mounts - Base Neoprene Style 2
Top Level Category: Mounts - Base Neoprene Style 2
Product Details
Rated Load: 884.500kg (lbs)Neoprene Rubber
- Rated Load: 884.500kg (lbs)

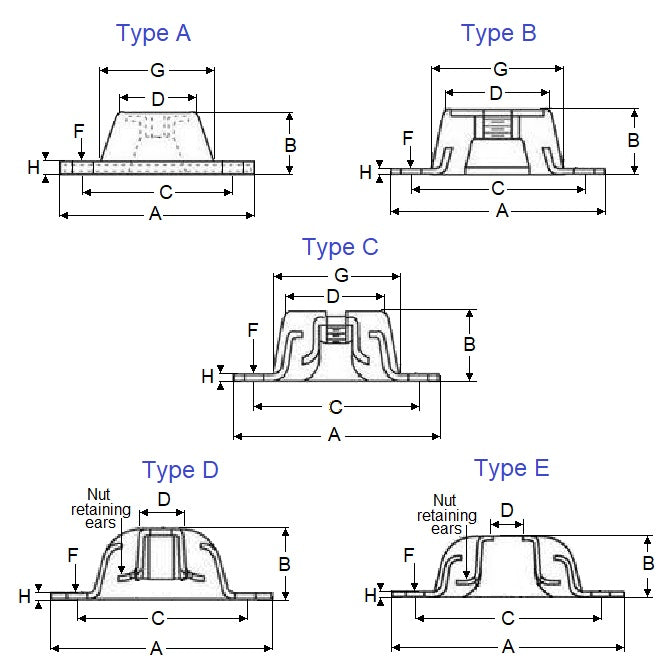

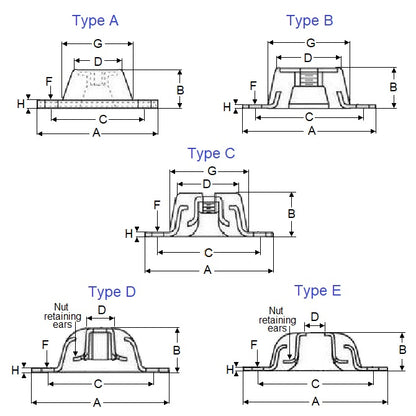

- Style: E
- Length (A): 158.750mm
(158.750mm is 6.25 in.)
- Height (B): 42.863mm
- Bolt Centres (C): 127.000mm
- D: 15.88mm
- F: 13.49mm
- H: 3.18mm
- Thread: 15.875mm Hole (No Thread)
- Durometer: 70
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 64875K35
- Reid Tool® KR-62-4
- KR624
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
MBN20885431590, MBN2088543
